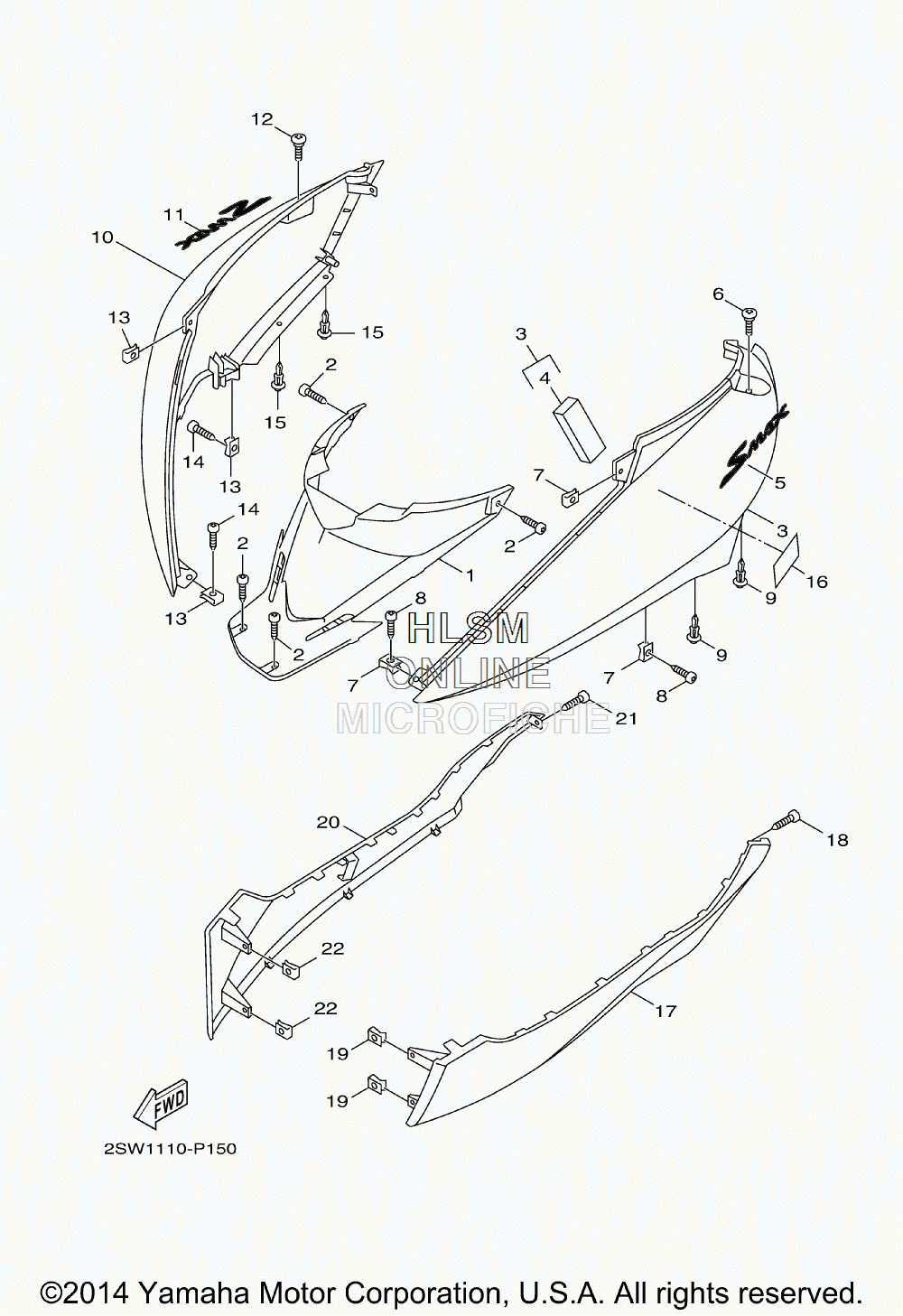

SIDE COVER для Yamaha SMAX - 2015 года выпуска`
-
№АртикулНазвание
-
11DK-F1711-00-00 COVER, SIDE 1COVER, SIDE 1
-
297707-50012-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
31DK-XF172-00-P4 COVER, SIDE 2 (MT1)COVER, SIDE 2 (MT1)
-
31DK-XF172-10-P2 COVER, SIDE 2 (DPBM14)COVER, SIDE 2 (DPBM14)
-
41B6-F1717-00-00 ...DAMPER...DAMPER
-
51DK-F173B-00-00 EMBLEM 3DEMBLEM 3D
-
690149-05804-00 SCREWSCREW
-
790183-05816-00 NUT, SPRINGNUT, SPRING
-
897707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
990269-06803-00 RIVETRIVET
-
101DK-F1731-00-P4 COVER, SIDE 3 (MT1)COVER, SIDE 3 (MT1)
-
101DK-F1731-00-P2 COVER, SIDE 3 (DPBM14)COVER, SIDE 3 (DPBM14)
-
111DK-F174B-00-00 EMBLEM 3DEMBLEM 3D
-
1290149-05804-00 SCREWSCREW
-
1390183-05816-00 NUT, SPRINGNUT, SPRING
-
1497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
1590269-06803-00 RIVETRIVET
-
165PJ-F118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
171DK-F7482-00-P2 MOLE, FOOTREST (MT1)MOLE, FOOTREST (MT1)
-
171DK-F7482-00-P0 MOLE, FOOTREST (DPBM14)MOLE, FOOTREST (DPBM14)
-
1890169-05001-00 TAPPING SCREWTAPPING SCREW
-
1990183-05816-00 NUT, SPRINGNUT, SPRING
-
201DK-F7492-00-P2 MOLE, FOOTREST 2 (MT1)MOLE, FOOTREST 2 (MT1)
-
201DK-F7492-00-P0 MOLE, FOOTREST 2 (DPBM14)MOLE, FOOTREST 2 (DPBM14)
-
2190169-05001-00 TAPPING SCREWTAPPING SCREW
-
2290183-05816-00 NUT, SPRINGNUT, SPRING
