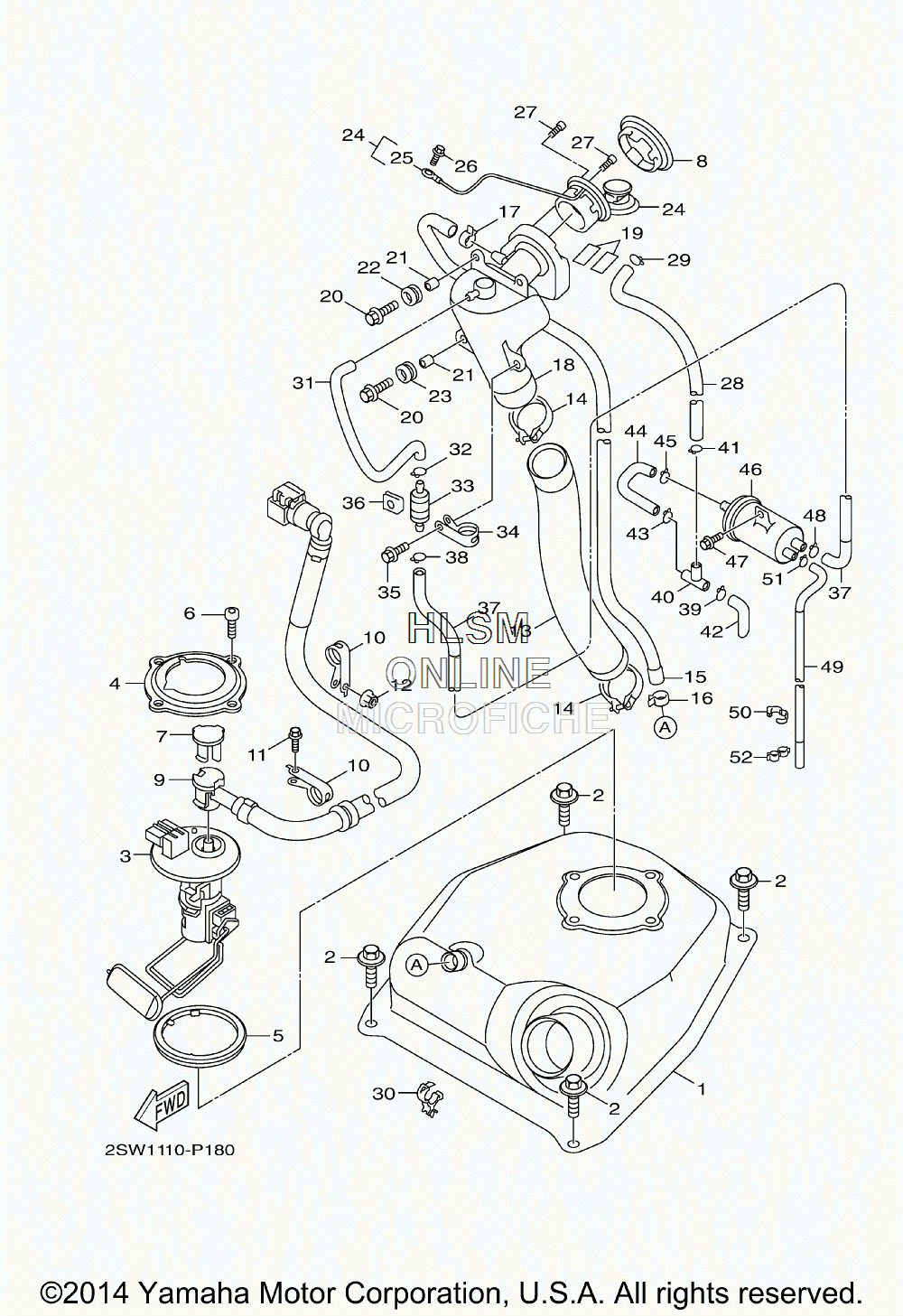

FUEL TANK ASSY. для Yamaha SMAX - 2015 года выпуска`
-
№АртикулНазвание
-
11DK-F4110-01-33 FUEL TANK COMP. (YAMAHA BLACK)FUEL TANK COMP. (YAMAHA BLACK)
-
290119-068B5-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
31DK-E3907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
41DK-F4491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
51DK-F414G-00-00 SEALSEAL
-
691312-05010-00 BOLTBOLT
-
75VU-24135-00-00 CLAMP 1CLAMP 1
-
81P3-F467E-00-00 CAPCAP
-
91DK-E3971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
101DK-F4135-00-00 CLAMP 1CLAMP 1
-
1195802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1295702-06500-00 NUT, FLANGENUT, FLANGE
-
132SW-F4316-00-00 PIPE 6PIPE 6
-
1490450-55803-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
152SW-F4317-00-00 PIPE 7PIPE 7
-
1690468-08812-00 CLIPCLIP
-
1790467-20810-00 CLIPCLIP
-
182SW-F4280-00-00 SUB FUEL TANKSUB FUEL TANK
-
195S9-F8372-00-00 DAMPERDAMPER
-
2090119-068B2-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2190387-07598-00 COLLARCOLLAR
-
2290480-18290-00 GROMMETGROMMET
-
2390480-01326-00 GROMMETGROMMET
-
244P9-F4602-03-00 CAP ASSYCAP ASSY
-
254P9-H2509-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
2695802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2790155-04802-00 SCREW, FLAT FILLISTERSCREW, FLAT FILLISTER
-
282LD-F4318-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
2990467-12052-00 CLIPCLIP
-
3090464-16803-00 CLAMPCLAMP
-
312LD-F4313-00-00 PIPE 3PIPE 3
-
3290467-09006-00 CLIPCLIP
-
335ML-F4180-20-00 ROLL OVER VALVE ASSYROLL OVER VALVE ASSY
-
3490461-15801-00 CLAMPCLAMP
-
3597707-50014-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
3690183-05816-00 NUT, SPRINGNUT, SPRING
-
372SW-F4314-00-00 PIPE 4PIPE 4
-
3890467-09006-00 CLIPCLIP
-
3990467-10041-00 CLIPCLIP
-
403UH-F4376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
4190467-10041-00 CLIPCLIP
-
422SW-F4323-00-00 PIPE 12PIPE 12
-
4390467-10041-00 CLIPCLIP
-
442SW-F4315-00-00 PIPE 5PIPE 5
-
4590467-11106-00 CLIPCLIP
-
465TY-F4170-00-00 CANISTER ASSYCANISTER ASSY
-
4790109-063F1-00 BOLTBOLT
-
4890467-09006-00 CLIPCLIP
-
492SW-F4322-00-00 PIPE 11PIPE 11
-
5090464-18016-00 CLAMPCLAMP
-
5190467-08075-00 CLIPCLIP
-
5290467-09006-00 CLIPCLIP
