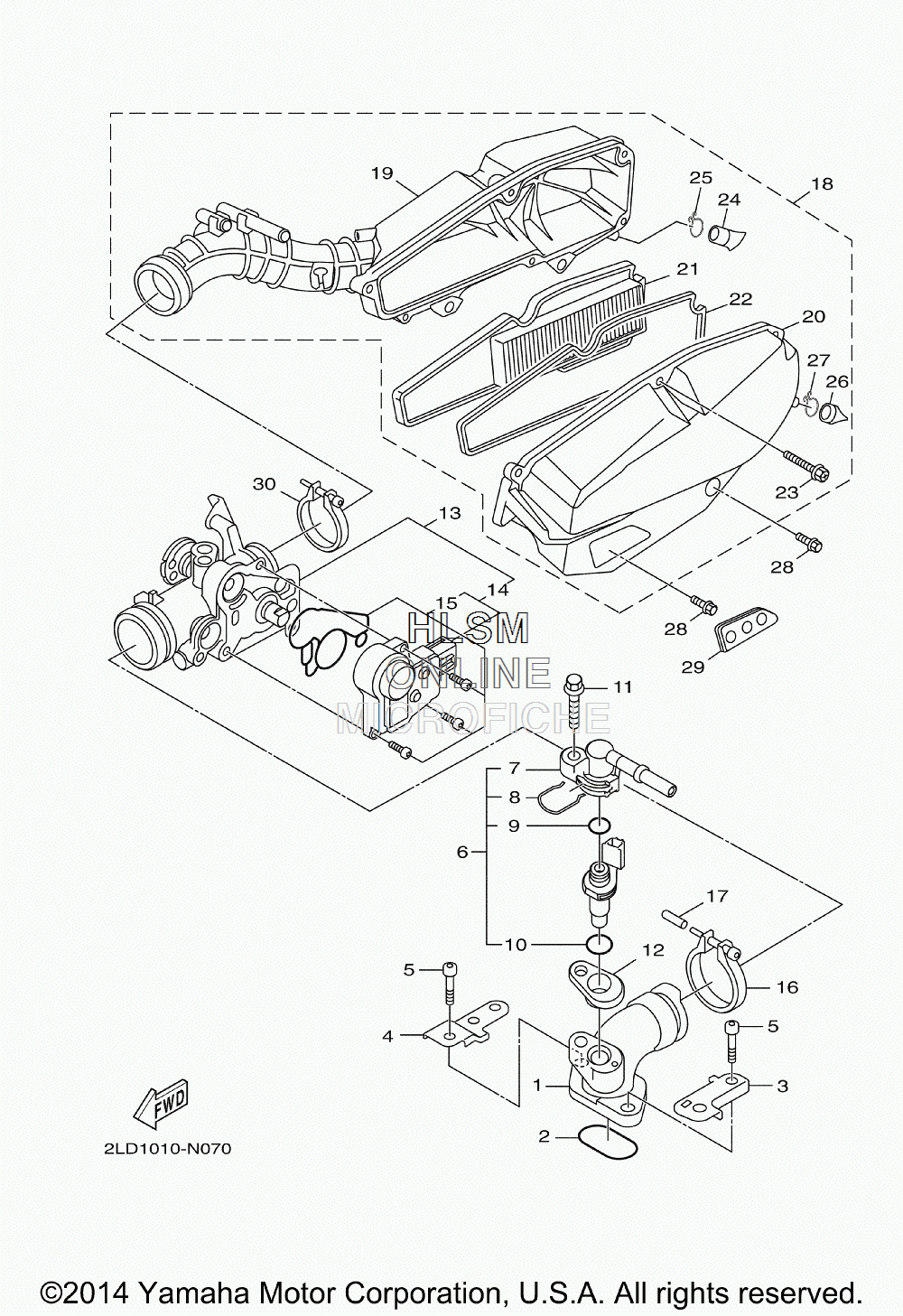

AIR CLEANER ASSY. W/ INTAKE для Yamaha SMAX - 2015 года выпуска`
-
№АртикулНазвание
-
11DK-E3585-00-00 MANIFOLDMANIFOLD
-
293210-32807-00 O-RINGO-RING
-
31DK-E4413-00-00 STAYSTAY
-
41DK-E4255-00-00 PLATEPLATE
-
591312-06020-00 BOLTBOLT
-
61PA-E3770-00-00 INJECTOR ASSYINJECTOR ASSY
-
754P-E3938-00-00 ...PIPE...PIPE
-
854P-E4137-00-00 ...CLIP...CLIP
-
954P-E4147-00-00 ...O-RING...O-RING
-
105CA-E4147-00-00 ...O-RING...O-RING
-
1195812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
121DK-E3556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
132SW-E3750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
1452S-H5802-00-00 ...INTAKE DEVICE UNIT ASSY...INTAKE DEVICE UNIT ASSY
-
1552S-E4216-00-00 ......SCREW......SCREW
-
1652S-E3575-00-00 BANDBAND
-
171CD-E4169-00-00 CAPCAP
-
181DK-E4410-01-00 AIR CLEANER ASSY.AIR CLEANER ASSY.
-
191DK-WE441-01-00 ...AIR CLEANER CASE COMP....AIR CLEANER CASE COMP.
-
201DK-WE442-00-00 ...CAP, CLEANER CASE SUB ASSY 1...CAP, CLEANER CASE SUB ASSY 1
-
2152S-E4451-00-00 ...ELEMENT, AIR CLEANER...ELEMENT, AIR CLEANER
-
2252S-E4452-00-00 ...SEAL...SEAL
-
2397707-50025-00 ...SCREW, TAPPING...SCREW, TAPPING
-
2452S-E443E-00-00 ...PIPE, DRAIN...PIPE, DRAIN
-
2590467-13042-00 ...CLIP...CLIP
-
2652S-E443G-00-00 ...PIPE, DRAIN 2...PIPE, DRAIN 2
-
2790467-12052-00 ...CLIP...CLIP
-
2895812-06030-00 BOLT, FLANGEBOLT, FLANGE
-
291DK-E4862-00-00 PLUGPLUG
-
304P9-E3575-00-00 BANDBAND
