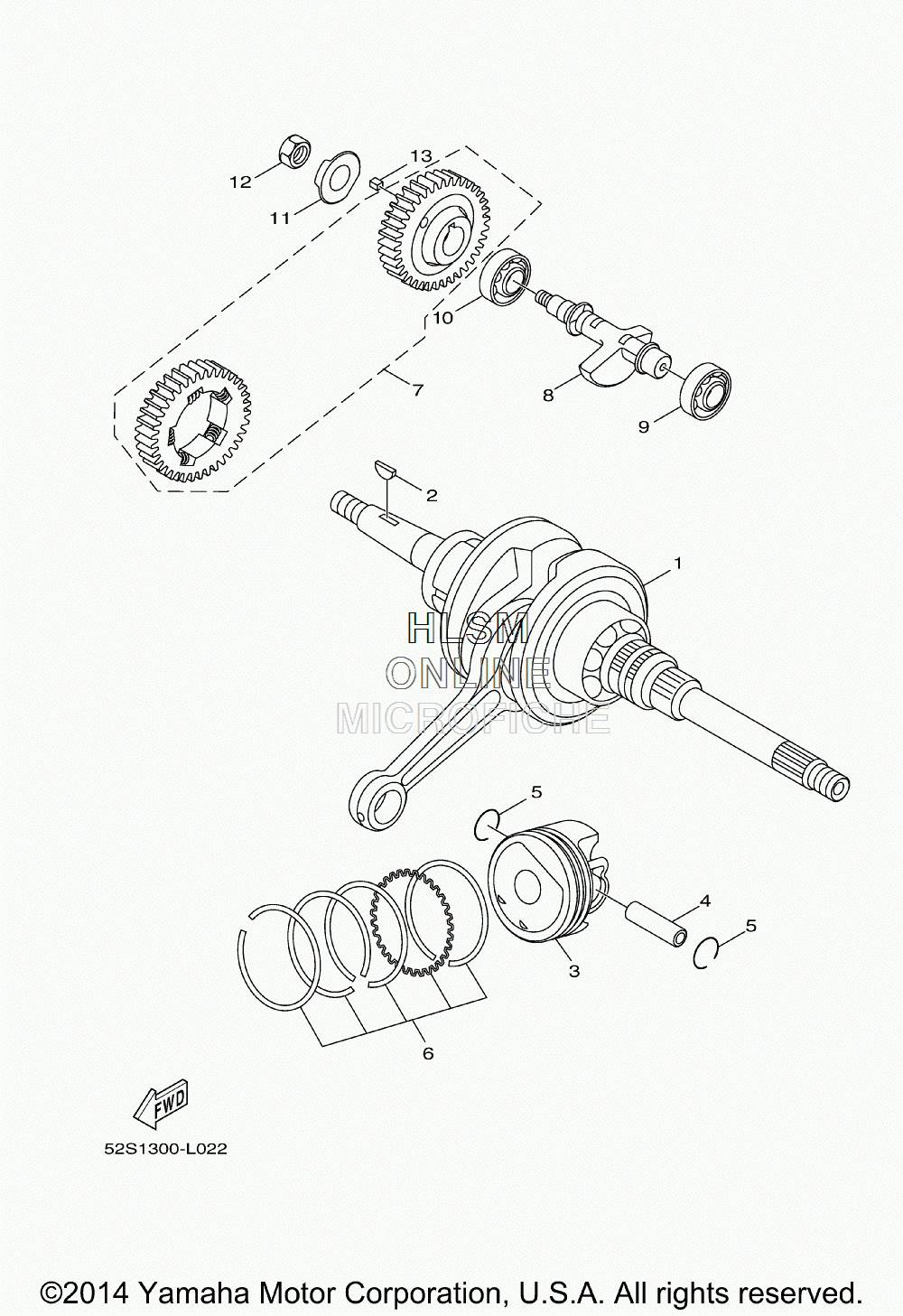

CRANKSHAFT W/ PISTON ASSY. для Yamaha SMAX - 2015 года выпуска`
-
№АртикулНазвание
-
152S-XE140-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
290280-03045-00 KEY, WOODRUFFKEY, WOODRUFF
-
352S-E1631-00-00 PISTON (STD)PISTON (STD)
-
452S-E1633-00-00 PIN, PISTONPIN, PISTON
-
593450-16068-00 CIRCLIPCIRCLIP
-
652S-E1603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
752S-WE153-00-00 GEAR, DRIVEGEAR, DRIVE
-
852S-E1454-00-00 WEIGHT 1WEIGHT 1
-
993306-203XK-00 BEARINGBEARING
-
1093306-203XY-00 BEARINGBEARING
-
1190215-10803-00 WASHER, LOCKWASHER, LOCK
-
1290170-10804-00 NUTNUT
-
1390282-05031-00 KEY, STRAIGHTKEY, STRAIGHT
Все узлы модели:
- AIR CLEANER ASSY. W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- CLUTCH ASSY.
- COWLING W/ LEG SHIELD
- CRANKCASE ASSY.
- • CRANKSHAFT W/ PISTON ASSY.
- CYLINDER W/ HEAD ASSY.
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST ASSY.
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK ASSY.
- GENERATOR ASSY.
- HANDLEBAR - COVER W/ MIRRORS
- HANDLEBAR W/ CABLES - MIRRORS
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT ASSY.
- INSTRUMENT PANEL
- MODEL INFO - MANUALS
- OIL PUMP
- RADIATOR W/ HOSES
- SEAT ASSY.
- SIDE COVER
- STAND W/ FOOTREST
- STARTER CLUTCH ASSY.
- STARTING MOTOR ASSY.
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM W/ SHOCK
- TAILLIGHT ASSY.
- TRANSMISSION
- VALVE ASSY. W/ CAM CHAIN ASSY.
- WATER PUMP ASSY.
- WHEEL - FRONT
- WHEEL - REAR
