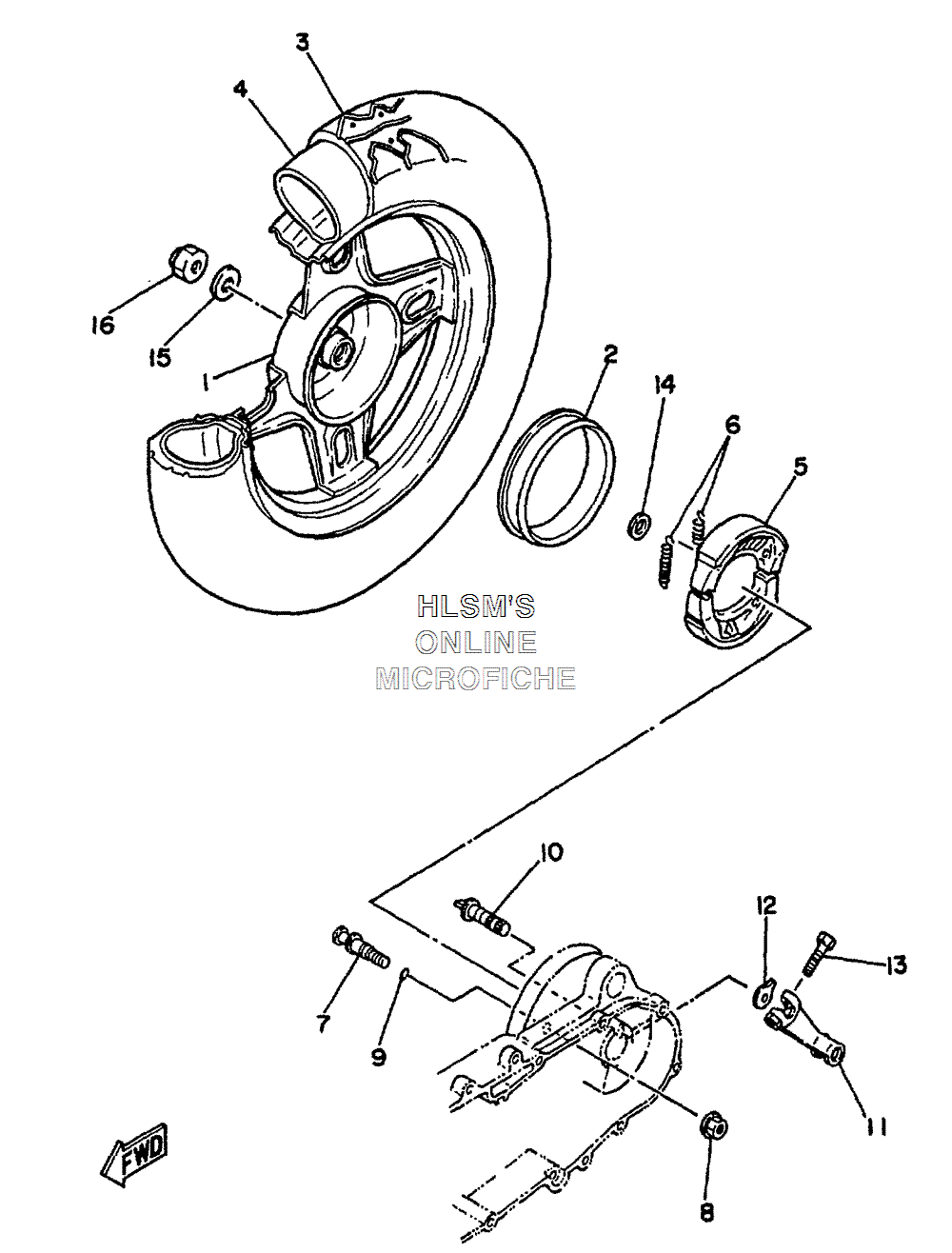

WHEEL - REAR для Yamaha RAZZ - 2000 года выпуска`
-
№АртикулНазвание
-
114T-25390-01-35 REAR WHEEL COMP. (SILVER)REAR WHEEL COMP. (SILVER)
-
252W-25336-00-00 RING 2RING 2
-
394125-107J4-00 TIRE (2.50-10 4PR MB27) INOUETIRE (2.50-10 4PR MB27) INOUE
-
494225-10270-00 TUBE (2.50/2.75-10)TUBE (2.50/2.75-10)
-
53EP-W2536-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
690506-14081-00 SPRING, TENSIONSPRING, TENSION
-
725L-25326-00-00 PIN, PIVOTPIN, PIVOT
-
895707-08500-00 NUT, FLANGENUT, FLANGE
-
993210-06632-00 O-RINGO-RING
-
101YU-25351-00-00 CAMSHAFTCAMSHAFT
-
1153L-25355-00-00 LEVER, CAMSHAFTLEVER, CAMSHAFT
-
123L8-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
1397017-06025-00 BOLTBOLT
-
1490201-17255-00 WASHER, PLATEWASHER, PLATE
-
1590201-14740-00 WASHER, PLATEWASHER, PLATE
-
1690185-14081-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
