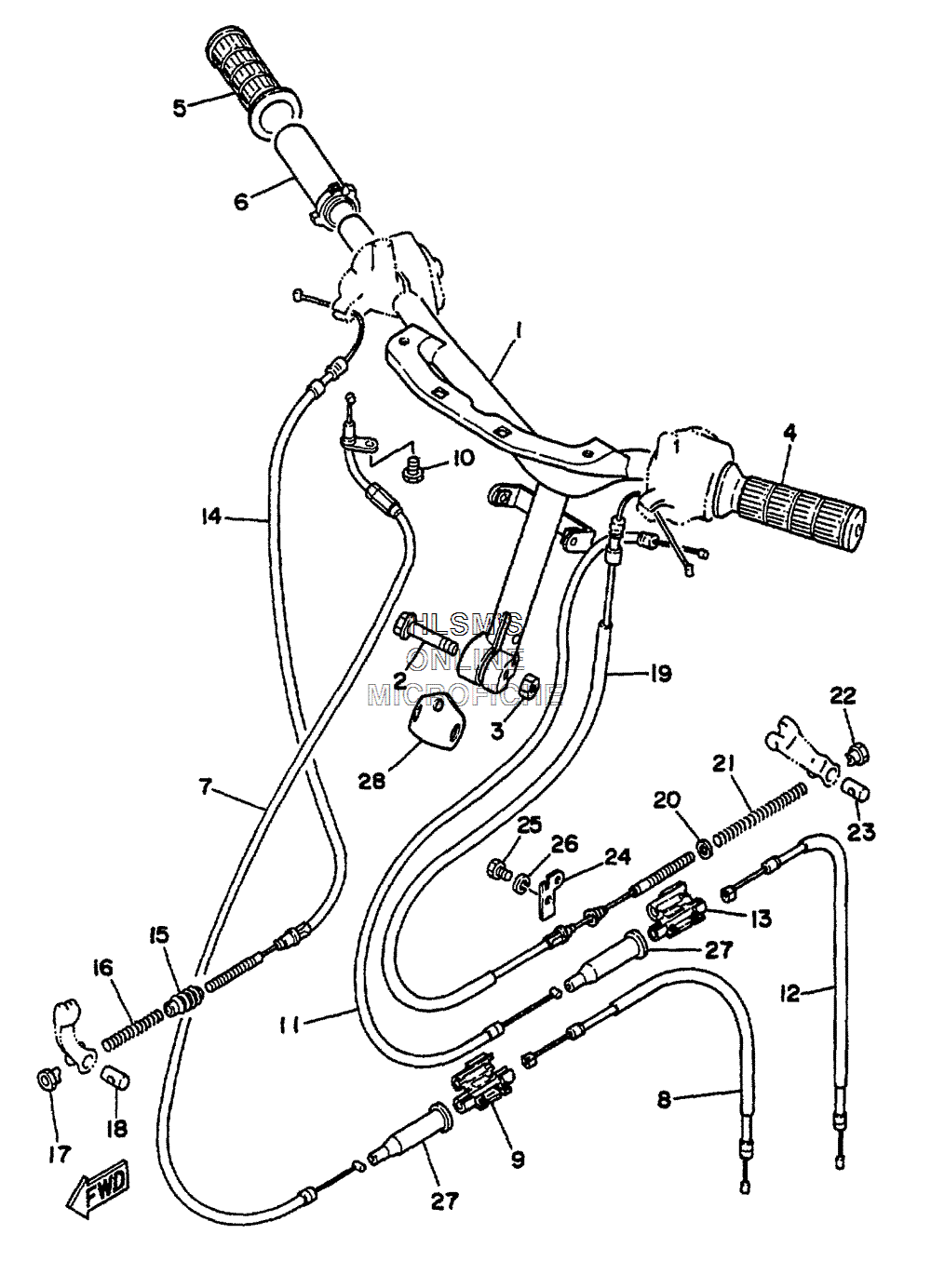

HANDLEBAR W/ CABLES - MIRRORS для Yamaha RAZZ - 2000 года выпуска`
-
№АртикулНазвание
-
12EK-26110-00-00 HANDLE COMP.HANDLE COMP.
-
290105-10036-00 BOLT, FLANGEBOLT, FLANGE
-
395617-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
43RY-26241-01-00 GRIP (LEFT)GRIP (LEFT)
-
53RY-26242-01-00 GRIP (RIGHT)GRIP (RIGHT)
-
62GN-26243-00-00 TUBE, THROTTLE GUIDETUBE, THROTTLE GUIDE
-
72EK-26311-02-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
81UY-26312-01-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
953L-26261-01-00 CONNECTOR, CABLECONNECTOR, CABLE
-
1098517-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1153L-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
121YU-26334-01-00 CABLE, STARTER 2CABLE, STARTER 2
-
1353L-26261-00-00 CONNECTOR, CABLECONNECTOR, CABLE
-
142EK-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
1514T-26342-00-00 BOOT, CABLEBOOT, CABLE
-
1690501-10513-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1790179-06411-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
1890249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
191YU-26351-00-00 CABLE, BRAKECABLE, BRAKE
-
2090202-08175-00 WASHER, PLATEWASHER, PLATE
-
2190501-122E1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2290179-06411-00 NUT, SPECIAL SHAPENUT, SPECIAL SHAPE
-
2390249-12008-00 PIN, SPEC'L SHAPEPIN, SPEC'L SHAPE
-
242EK-26393-00-00 HOLDERHOLDER
-
2597017-06016-00 BOLTBOLT
-
2692907-06600-00 WASHER, PLATEWASHER, PLATE
-
271YU-26329-00-00 CAP, RUBBERCAP, RUBBER
-
282EK-26293-00-00 BANDBAND
