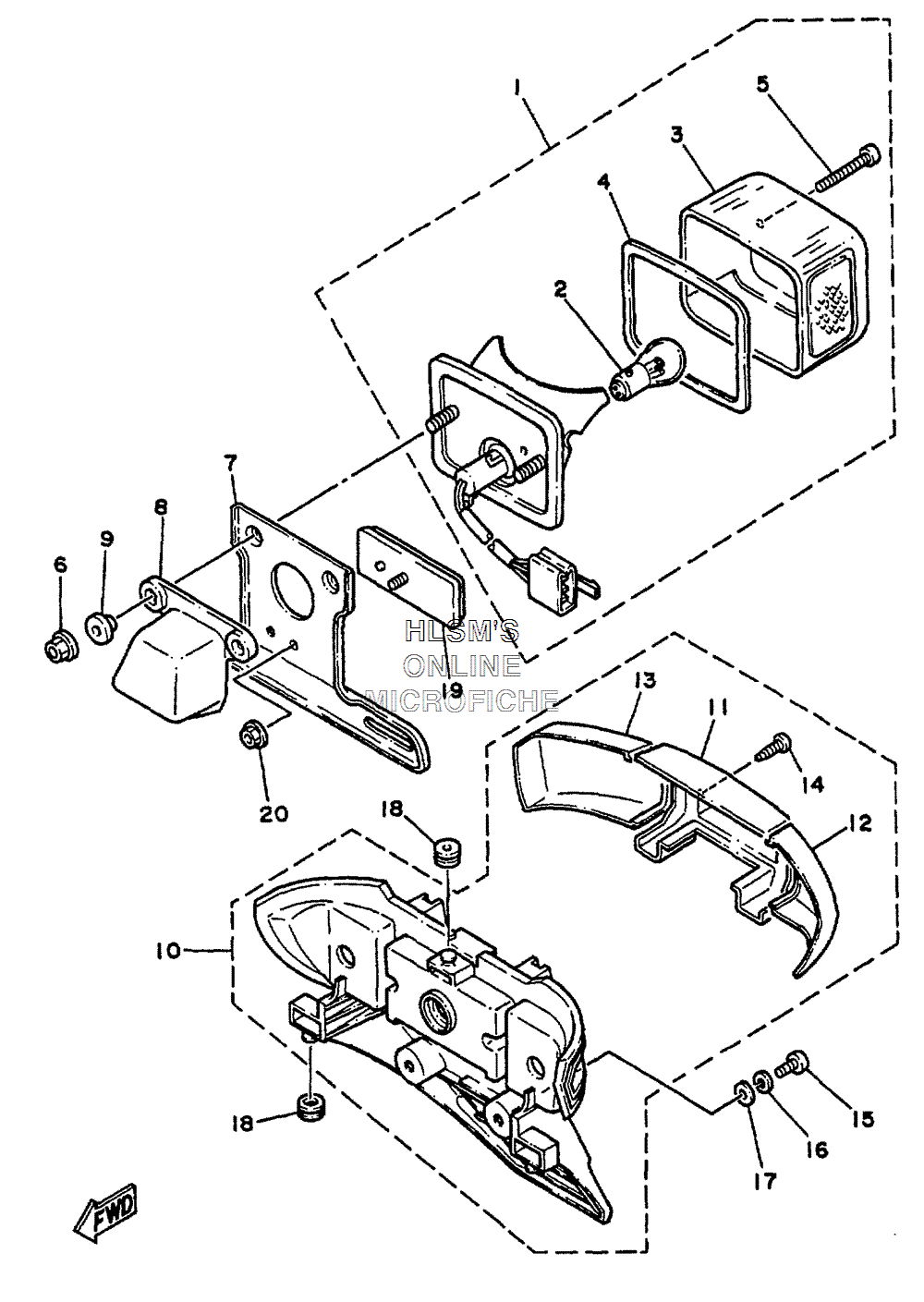

TAILLIGHT ASSY. для Yamaha RAZZ - 2000 года выпуска
-
№АртикулНазвание
-
12EK-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
21A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
31M1-84521-60-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
41M1-84523-60-00 ...GASKET, LENS...GASKET, LENS
-
51M1-84524-60-00 ...SCREW, LENS FITTING...SCREW, LENS FITTING
-
695707-06500-00 NUT, FLANGENUT, FLANGE
-
71UV-84751-00-R4 BRACKET, LICENSE (BLACK)BRACKET, LICENSE (BLACK)
-
83L8-84544-00-00 COVERCOVER
-
990387-06681-00 COLLARCOLLAR
-
102EK-21630-00-00 TAIL COVER ASSY (LOW GLOSS GRAY (0T2)TAIL COVER ASSY (LOW GLOSS GRAY (0T2)
-
112EK-2163A-00-00 ...COVER 1 (LOW GLOSS GRAY (0T2)...COVER 1 (LOW GLOSS GRAY (0T2)
-
122EK-2163E-00-00 ...COVER 2 (LH) (LOW GLOSS GRAY (0T2)...COVER 2 (LH) (LOW GLOSS GRAY (0T2)
-
132EK-2163F-00-00 ...COVER 3 (RH) (LOW GLOSS GRAY (0T2)...COVER 3 (RH) (LOW GLOSS GRAY (0T2)
-
1497780-40120-00 ...SCREW, TAPPING...SCREW, TAPPING
-
1598507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692907-06100-00 WASHER, SPRINGWASHER, SPRING
-
1792907-06600-00 WASHER, PLATEWASHER, PLATE
-
1890480-10334-00 GROMMETGROMMET
-
193Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2095707-05500-00 NUT, FLANGENUT, FLANGE
