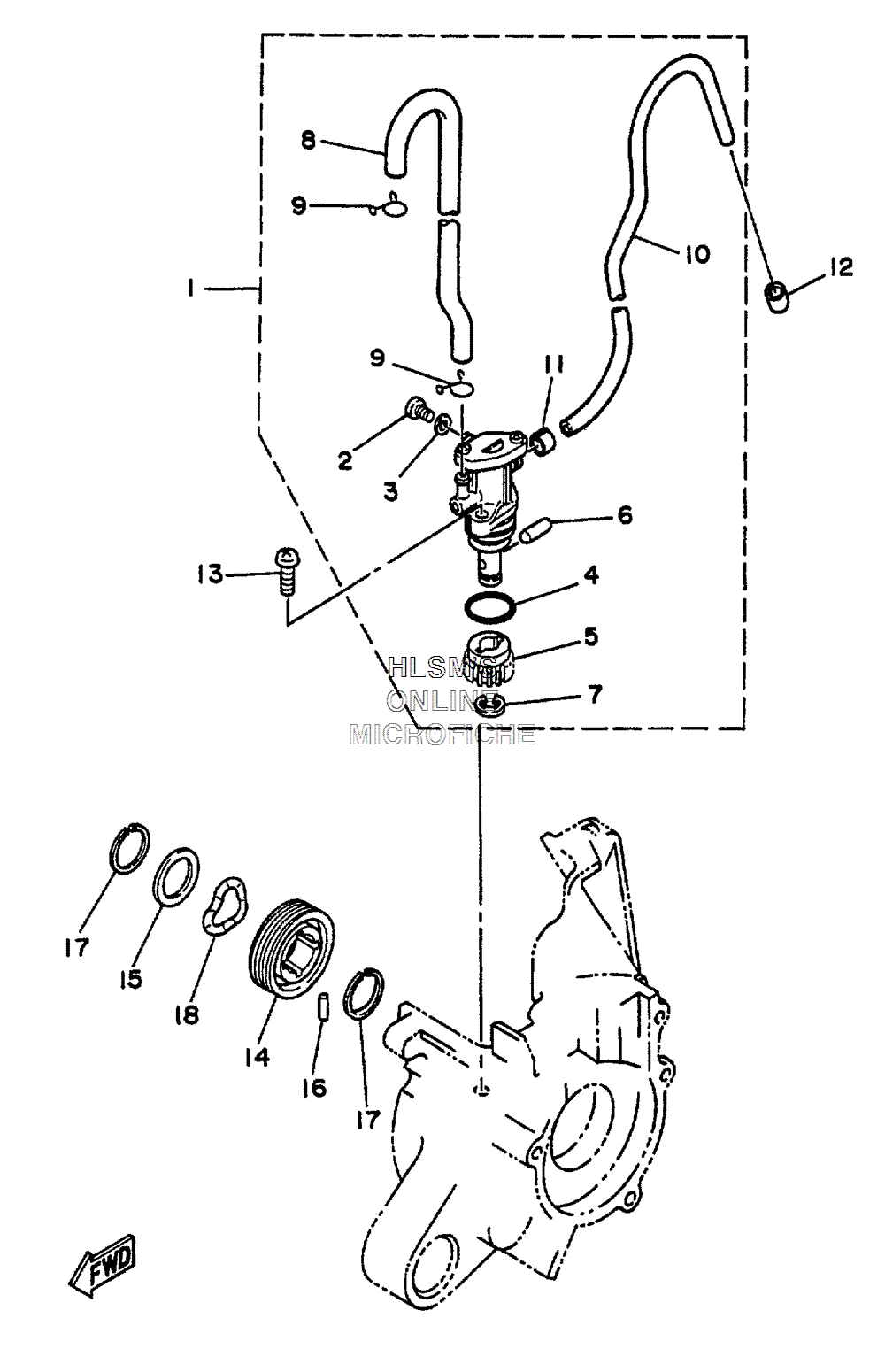

OIL PUMP для Yamaha RAZZ - 2000 года выпуска`
-
№АртикулНазвание
-
11YU-13100-02-00 OIL PUMP ASSYOIL PUMP ASSY
-
23WF-13185-00-00 ...BOLT, BREATHER...BOLT, BREATHER
-
31YU-13187-00-00 ...GASKET, BREATHER BOLT...GASKET, BREATHER BOLT
-
41YU-13473-00-00 ...O-RING...O-RING
-
53AA-13124-00-00 ...GEAR WORM WHEEL (40T)...GEAR WORM WHEEL (40T)
-
61YU-13516-00-00 ...PIN, DOWEL...PIN, DOWEL
-
71YU-13577-00-00 ...CLIP...CLIP
-
81YU-13416-00-00 ...PIPE, OIL 1...PIPE, OIL 1
-
990467-08003-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
101YU-13418-00-00 ...PIPE, OIL 2...PIPE, OIL 2
-
1190468-02033-00 ...CLIP...CLIP
-
1290468-02033-00 CLIPCLIP
-
1398507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
141YU-13178-00-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
1529615-64400-00 SHIMSHIM
-
1693603-12007-00 PIN, DOWELPIN, DOWEL
-
1799009-19400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
1890206-19027-00 WASHER, WAVEWASHER, WAVE
