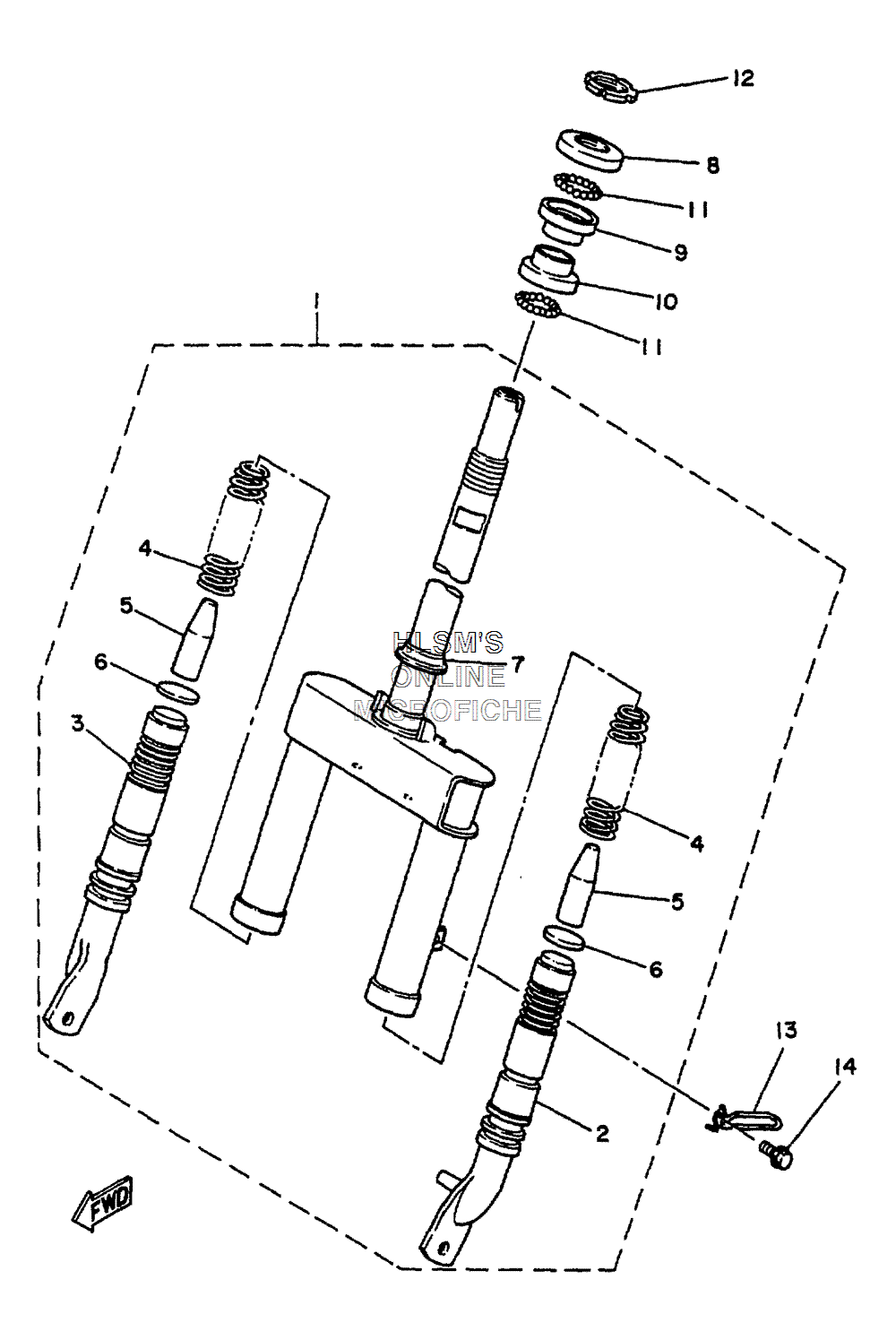

SUSPENSION - FRONT FORK для Yamaha RAZZ - 2000 года выпуска`
-
№АртикулНазвание
-
12EK-23100-03-00 FRONT FORK ASSYFRONT FORK ASSY
-
22EK-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
32EK-23120-00-00 ...INNER TUBE COMP. 2...INNER TUBE COMP. 2
-
42EK-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
552W-23195-00-00 ...RUBBER...RUBBER
-
62E9-23143-00-00 ...SEAT, SPRING LOWER...SEAT, SPRING LOWER
-
73YJ-23414-00-00 ...RACE, BALL 4...RACE, BALL 4
-
83KJ-23411-01-00 RACE, BALL 1RACE, BALL 1
-
92E9-23412-00-00 RACE, BALL 2RACE, BALL 2
-
102E9-23413-01-00 RACE, BALL 3RACE, BALL 3
-
1193505-32002-00 BALL 5/32BALL 5/32
-
122E9-23454-00-00 NUT, FITTING 2NUT, FITTING 2
-
1353L-23389-00-00 GUIDE, CABLEGUIDE, CABLE
-
1495807-06008-00 BOLT, WASHER BASEDBOLT, WASHER BASED
