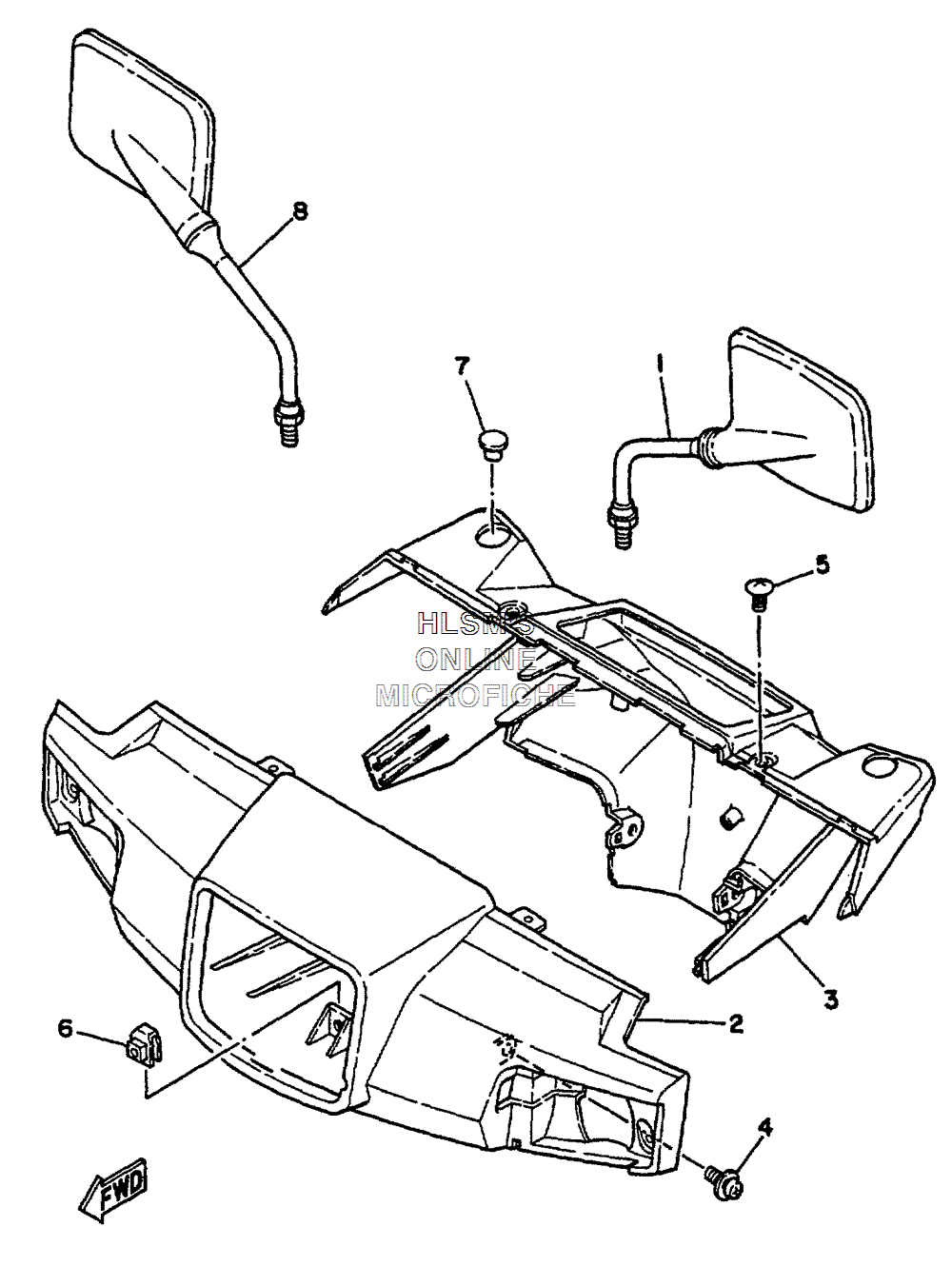

HANDLEBAR - COVER W/ MIRRORS для Yamaha RAZZ - 2000 года выпуска`
-
№АртикулНазвание
-
114T-26290-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
22EK-26143-00-P2 COVER, HANDLE BAR UPPER 1 (VIOLET)COVER, HANDLE BAR UPPER 1 (VIOLET)
-
22EK-26143-00-P3 COVER, HANDLE BAR UPPER 1 (RED)COVER, HANDLE BAR UPPER 1 (RED)
-
32EK-26145-50-00 COVER, HANDLE BAR UPPER 2COVER, HANDLE BAR UPPER 2
-
490159-05121-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
590154-05042-00 SCREW, BINDINGSCREW, BINDING
-
635R-26294-00-00 NUT 1NUT 1
-
790338-09012-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
814T-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
