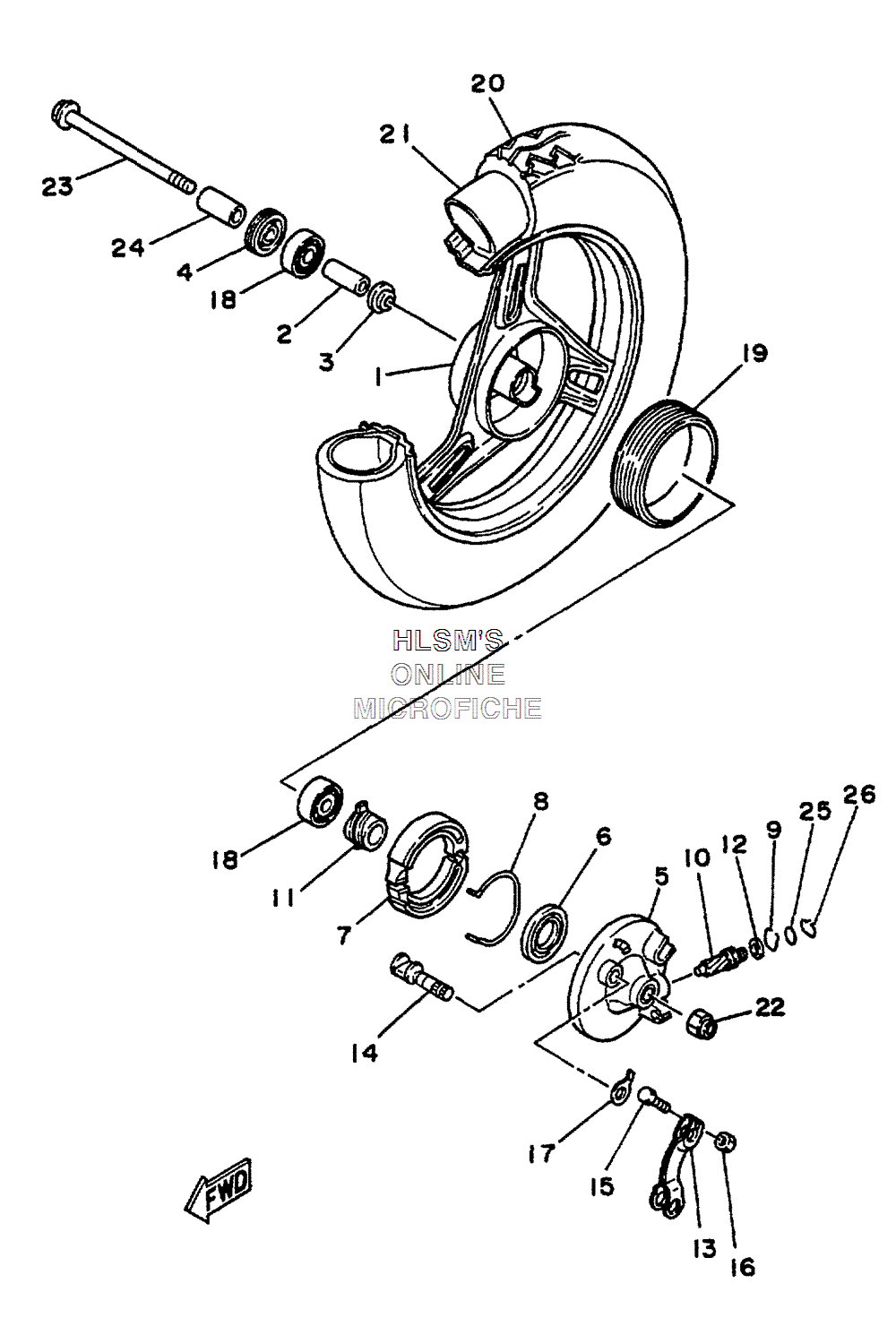

WHEEL - FRONT для Yamaha RAZZ - 2000 года выпуска`
-
№АртикулНазвание
-
125K-25180-00-35 FRONT WHEEL COMP. (SILVER)FRONT WHEEL COMP. (SILVER)
-
290560-10236-00 SPACERSPACER
-
325K-25116-00-00 FLANGE, SPACER 2FLANGE, SPACER 2
-
493106-17015-00 OIL SEAL, DD-TYPEOIL SEAL, DD-TYPE
-
51YU-25121-00-35 PLATE, BRAKE SHOE (SILVER)PLATE, BRAKE SHOE (SILVER)
-
693109-34057-00 OIL SEAL, SDO-TYPEOIL SEAL, SDO-TYPE
-
73EP-W2535-00-00 BRAKE SHOE SETBRAKE SHOE SET
-
82E9-25133-00-00 SPRING, RETURNSPRING, RETURN
-
92T4-25137-00-00 RING, STOPRING, STOP
-
102E9-25138-00-00 GEAR, METERGEAR, METER
-
112E9-25135-00-00 GEAR, DRIVE (14T)GEAR, DRIVE (14T)
-
1290201-064L6-00 WASHER, PLATEWASHER, PLATE
-
133EP-25155-00-00 LEVER, CAMSHAFT 1LEVER, CAMSHAFT 1
-
1425K-25151-00-00 CAMSHAFTCAMSHAFT
-
1597027-05020-00 BOLTBOLT
-
1695307-05600-00 NUTNUT
-
173L8-2513A-00-00 PLATE, INDICATORPLATE, INDICATOR
-
1893306-20005-00 BEARING (B6200)BEARING (B6200)
-
192T4-25185-00-00 RING 1RING 1
-
2094125-107J4-00 TIRE (2.50-10 4PR MB27) INOUETIRE (2.50-10 4PR MB27) INOUE
-
2194225-10270-00 TUBE (2.50/2.75-10)TUBE (2.50/2.75-10)
-
2295617-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
2354V-25181-00-00 AXLE, WHEELAXLE, WHEEL
-
2490387-10620-00 COLLARCOLLAR
-
2593210-10096-00 O-RINGO-RING
-
262E9-25137-01-00 RING, STOPRING, STOP
