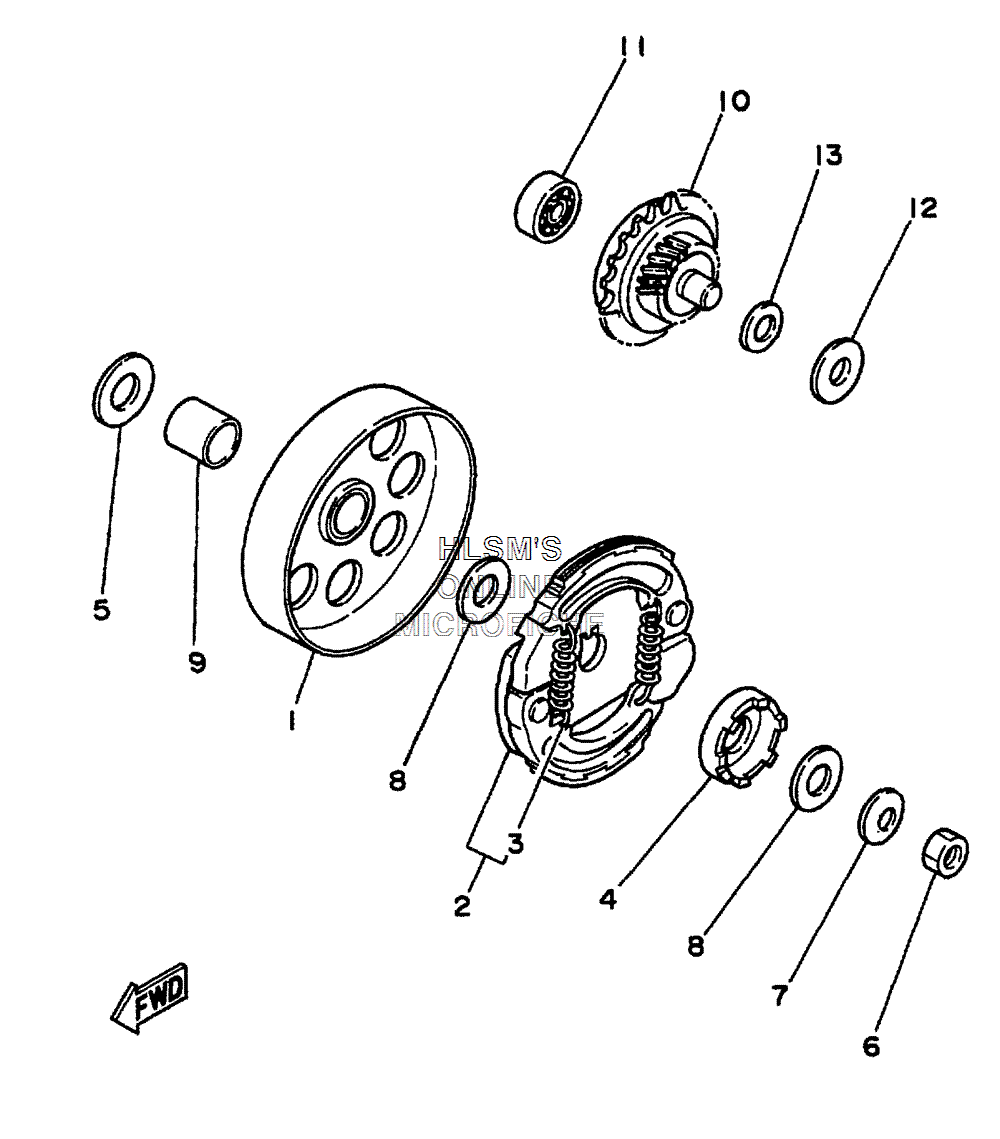

CLUTCH ASSY. для Yamaha RAZZ - 2000 года выпуска`
-
№АртикулНазвание
-
12E9-16611-01-00 CLUTCH HOUSING COMPCLUTCH HOUSING COMP
-
21YU-16620-00-00 CLUTCH CARRIER ASSYCLUTCH CARRIER ASSY
-
31YU-16626-00-00 ...SPRING, CLUTCH WEIGHT 1...SPRING, CLUTCH WEIGHT 1
-
41YU-15657-00-00 CLUTCH, ONE WAYCLUTCH, ONE WAY
-
590201-166K2-00 WASHER, PLATE (2.4T)WASHER, PLATE (2.4T)
-
690170-10219-00 NUTNUT
-
790208-10012-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
890201-166K3-00 WASHER, PLATEWASHER, PLATE
-
990387-16680-00 COLLARCOLLAR
-
101YU-16110-01-00 PRIMARY DRIVE GEAR ASSYPRIMARY DRIVE GEAR ASSY
-
1193306-20116-00 BEARINGBEARING
-
1290201-123K4-00 WASHER, PLATEWASHER, PLATE
-
1390208-12027-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
