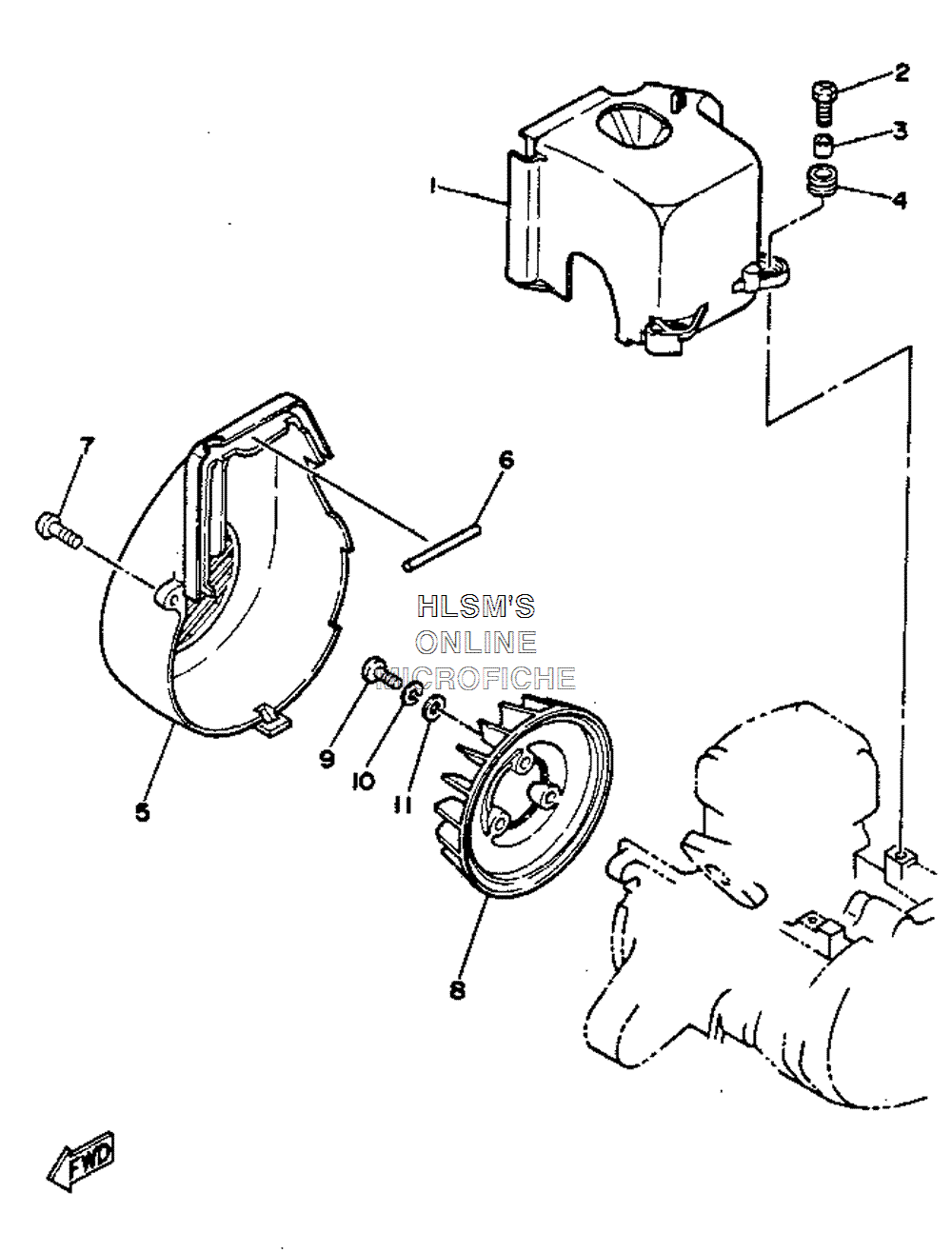

AIR SHROUD W/ FAN для Yamaha RAZZ - 2000 года выпуска`
-
№АртикулНазвание
-
11YU-12651-00-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
290153-06022-00 SCREW, HEXAGONSCREW, HEXAGON
-
390387-067T6-00 COLLARCOLLAR
-
490480-12237-00 GROMMETGROMMET
-
51YU-12653-00-00 AIR SHROUD, CYLINDER 3AIR SHROUD, CYLINDER 3
-
653L-14462-00-00 SEALSEAL
-
798517-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
81YU-12611-01-00 FANFAN
-
998507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1092907-06100-00 WASHER, SPRINGWASHER, SPRING
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
