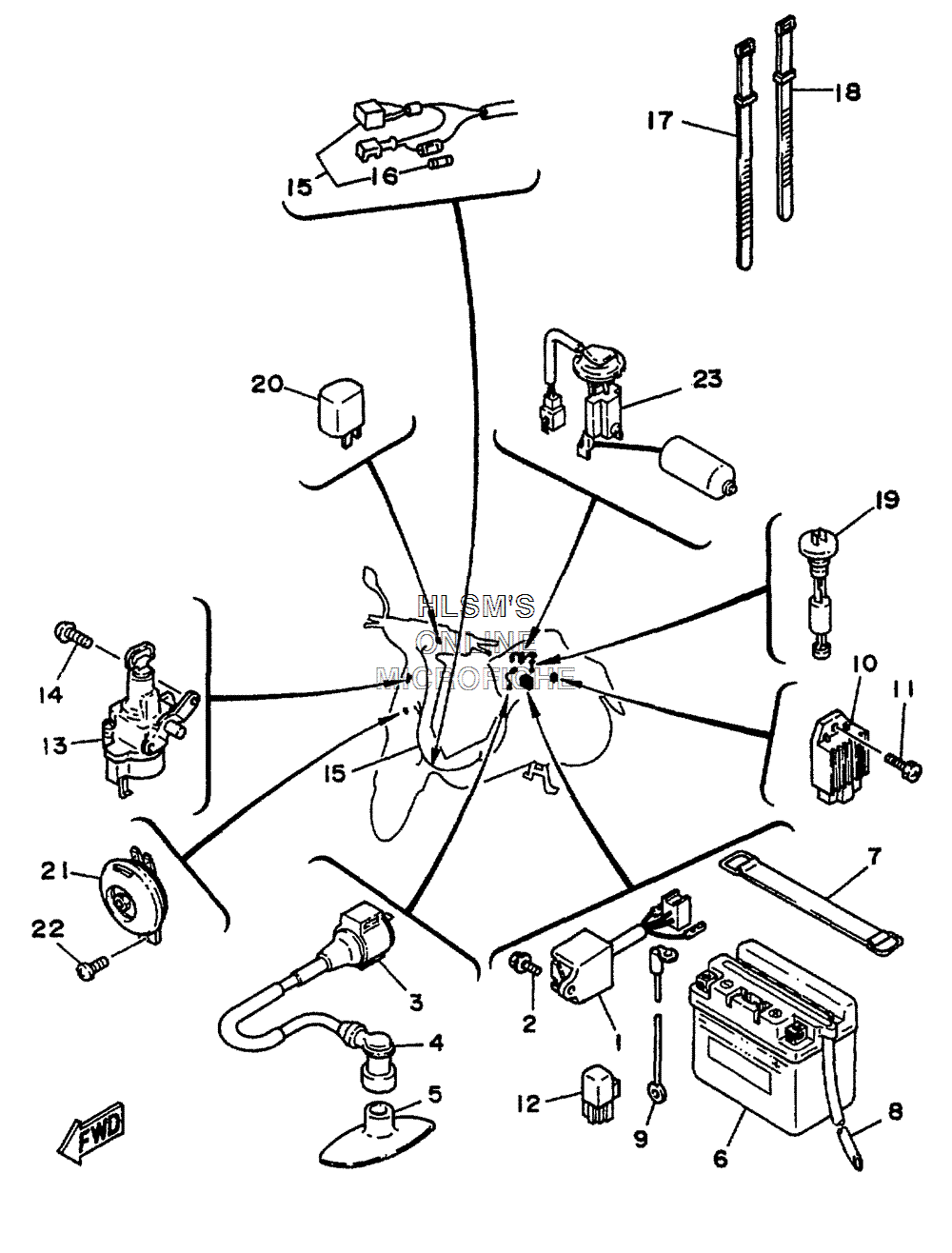

ELECTRICAL для Yamaha RAZZ - 2000 года выпуска`
-
№АртикулНазвание
-
13JG-85540-10-00 C. D. I. UNIT ASSYC. D. I. UNIT ASSY
-
295027-06016-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
32EX-82310-M0-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
456J-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
550W-82372-00-00 SEAL, PLUG CAPSEAL, PLUG CAP
-
6BTG-CB4LB-00-00 BATTERY ASSY (CB4L-B GS-T)BATTERY ASSY (CB4L-B GS-T)
-
7133-82131-00-00 BAND, BATTERYBAND, BATTERY
-
890445-084A7-00 HOSEHOSE
-
954V-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
104CK-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1190153-06034-00 SCREW, HEXAGONSCREW, HEXAGON
-
1229U-81950-93-00 RELAY ASSYRELAY ASSY
-
133KL-82501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
1490149-06250-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
153EP-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
1627V-82151-00-00 ...FUSE...FUSE
-
1725G-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
18437-83936-11-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
1953L-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
2029G-83350-20-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
213XV-83371-00-00 HORNHORN
-
2298507-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
