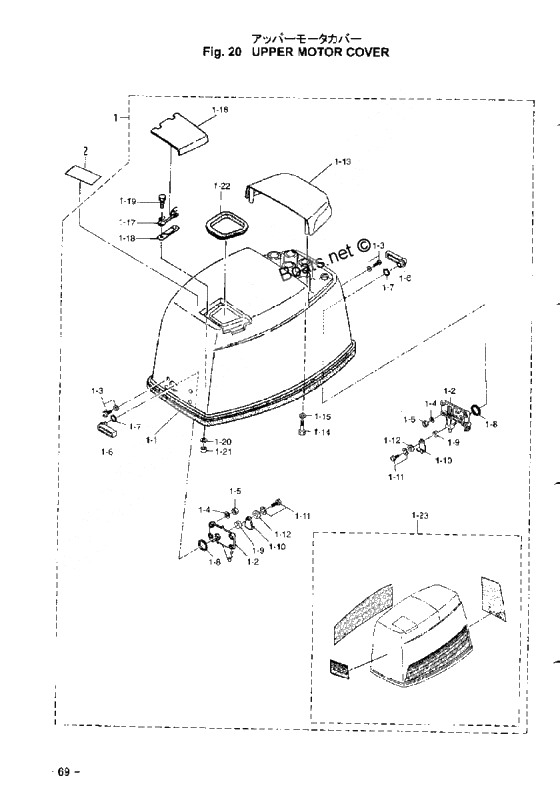

Upper motor cover для Tohatsu MD90A - 2002 года выпуска`
-
№АртикулНазвание
-
13T9S67510-0 Upper motor cover ass'yUpper motor cover ass'y
-
1-13C7-67501-0 Seal rubber upper motor coverSeal rubber upper motor cover
-
1-10353-67142-1 Cover HookCover Hook
-
1-11910103-6616 BoltBolt
-
1-123C8-66308-0 New partNew part
-
1-133T9S67521-1 Tilt handleTilt handle
-
1-14910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
1-163T5S67210-0 Filler ridFiller rid
-
1-173B7-67211-0 Hinge, Filler LidHinge, Filler Lid
-
1-183C8-67212-0 Spring filler lidSpring filler lid
-
1-19910103-0614 BoltBolt
-
1-2353-67517-1 Locating bracketLocating bracket
-
1-20941303-0600 New partNew part
-
1-21930103-0600 NutNut
-
1-223T9-67213-0 Seal rubber,filler lidSeal rubber,filler lid
-
1-233T9S87802-0 Набор этикеток
, Alteration 3U5N87802-0Набор этикеток
, Alteration 3U5N87802-0 -
1-3921703-5520 Stud BoltStud Bolt
-
1-4941303-0500 Spring WasherSpring Washer
-
1-5930111-0500 NutNut
-
1-6353S67141-0 Hook leverHook lever
-
1-7338-62435-0 O-RingO-Ring
-
1-8353-67147-1 Seal ringSeal ring
-
1-9353-67105-0 BushingBushing
-
23T9-72096-0 Caution lable(ce-a)Caution lable(ce-a)
