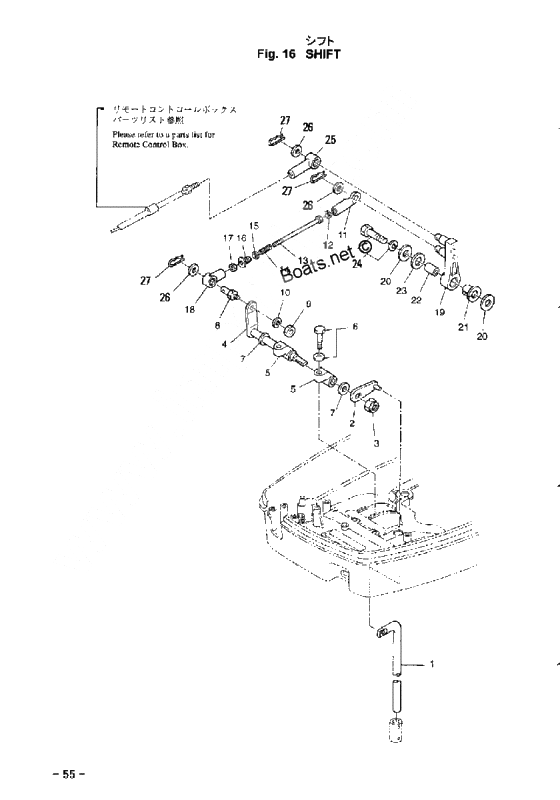

Shift для Tohatsu MD90A - 2002 года выпуска
-
№АртикулНазвание
-
13T9-66215-0 Shift RodShift Rod
-
23T9-66110-0 Shift Rod LeverShift Rod Lever
-
3930403-1000 Nylon NutNylon Nut
-
43T9-66225-0 Shift Lever ShaftShift Lever Shaft
-
5353-66145-1 Holder shift lever shaftHolder shift lever shaft
-
6910103-5825 BoltBolt
-
7332-61315-0 WasherWasher
-
8353-83728-0 Cable PinCable Pin
-
353-83728-1 Cable PinCable Pin
-
9930103-0600 NutNut
-
10941303-0600 New partNew part
-
113T9-66151-0 Case,shift assistCase,shift assist
-
12940121-0400 WasherWasher
-
13916103-0550 BoltBolt
-
15940121-0500 WasherWasher
-
143B7-66153-0 Spring, shift assistSpring, shift assist
-
163B7-66152-0 Plug, shift assistPlug, shift assist
-
17930103-0500 NutNut
-
18346-05234-0 New partNew part
-
193B7-66122-0 Shift ArmShift Arm
-
203B7-63730-0 WasherWasher
-
213B7-63713-0 BushingBushing
-
223B7-63732-0 Collar, 8.4-12-17Collar, 8.4-12-17
-
233B7-63731-0 WasherWasher
-
24910103-6835 BoltBolt
-
253B7-83715-0 Cable JointCable Joint
-
26353-83719-0 WasherWasher
-
27951603-0800 R-PinR-Pin
