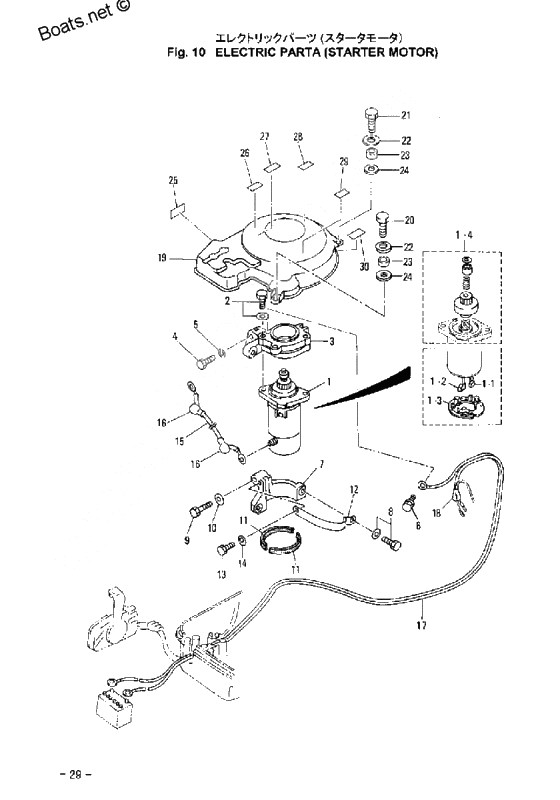

Electric parts (starter motor) для Tohatsu MD90A - 2002 года выпуска
-
№АртикулНазвание
-
1353-76010-4 Starter Motor Ass'yStarter Motor Ass'y
-
1-1353-76012-3 Brush (+)Brush (+)
-
1-2353-76013-3 Brush (-)Brush (-)
-
1-3353-76017-1 Brush SpringBrush Spring
-
2910103-6835 BoltBolt
-
33T9B05101-0 Bracket upper,starter motorBracket upper,starter motor
-
4916114-0845 BoltBolt
-
5941322-0800 Spring WasherSpring Washer
-
6910103-7614 BoltBolt
-
7353B76006-2 Bracket starter motorBracket starter motor
-
11353-76007-1 Rubber Starter MotorRubber Starter Motor
-
123T9B76009-0 Band,Starter MotorBand,Starter Motor
-
13910103-0820 BoltBolt
-
14940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
153R3-76141-0 STARTER CORDSTARTER CORD
-
163A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
173B7-76120-0 Battery CordBattery Cord
-
183B7-76145-0 Terminal CapTerminal Cap
-
193T9-06301-0 Cover,ring gearCover,ring gear
-
20910103-0625 BoltBolt
-
21910103-0616 BoltBolt
-
223C8-66308-0 New partNew part
-
23353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
243B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
253T5-72194-0 Label, fuseLabel, fuse
-
263T5-72181-0 Label, caution (ce-b)Label, caution (ce-b)
-
273R3-72056-1 Label hotLabel hot
-
283C7-72182-2 Caution label(ce-c)Caution label(ce-c)
-
293T5-72186-0 Label, PressureLabel, Pressure
-
303T5-72026-0 Label, spark plug(with resistance)Label, spark plug(with resistance)
