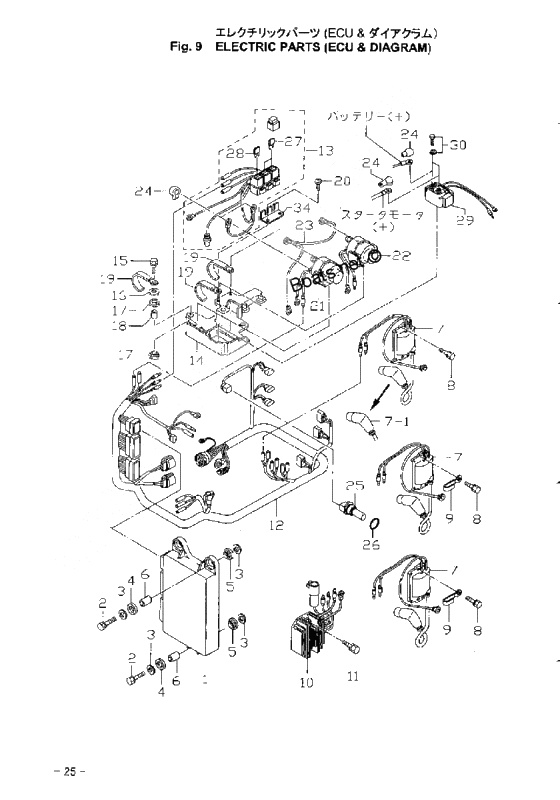

Electric parts (euc & diagram) для Tohatsu MD90A - 2002 года выпуска`
-
№АртикулНазвание
-
13T9-06401-0 Ecu (90)Ecu (90)
-
2910103-6630 BoltBolt
-
3346-67115-0 WasherWasher
-
4346-67113-0 Mount RubberMount Rubber
-
53B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
63T5-67114-0 Spacer, 6.2-9-16.6Spacer, 6.2-9-16.6
-
73T5-06173-1 Ignition coil #2, #3Ignition coil #2, #3
-
7-13T5-06921-0 Plug cap(with resistance)Plug cap(with resistance)
-
8910103-6625 BoltBolt
-
93T4-06972-0 Плата струбциныПлата струбцины
-
103T5-76060-0 Rectifier completeRectifier complete
-
11910103-7625 BoltBolt
-
123T9-76110-0 Cord ass'y aCord ass'y a
-
133T9-76062-0 Fuse holder ass'y
In FuseFuse holder ass'y
In Fuse -
143T5-72585-0 Bracket, Solenoid SwitchBracket, Solenoid Switch
-
163C8-66308-0 New partNew part
-
173F3-06920-0 Mount Rubber 9-12-2Mount Rubber 9-12-2
-
183T5-76079-0 Spacer, 6.2-9-10.7Spacer, 6.2-9-10.7
-
203T5-06437-0 Tapping Screw, 6-16Tapping Screw, 6-16
-
213C8-72580-0 Solenoid switch a, ptt (up)
UPSolenoid switch a, ptt (up)
UP -
223C8-72581-0 Solenoid switch b, ptt (dn)
DNSolenoid switch b, ptt (dn)
DN -
233T5-76142-0 Ground cordGround cord
-
243A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
253T4-72514-0 Water Temperature SensorWater Temperature Sensor
-
263T5-72509-0 O-RingO-Ring
-
273T5-76246-0 ПредохранительПредохранитель
-
283T5-76249-0 ПредохранительПредохранитель
-
293H8-76040-0 Starter SolenoidStarter Solenoid
-
30910103-6612 BoltBolt
-
343T9-76064-0 Stay, Fuse HolderStay, Fuse Holder
