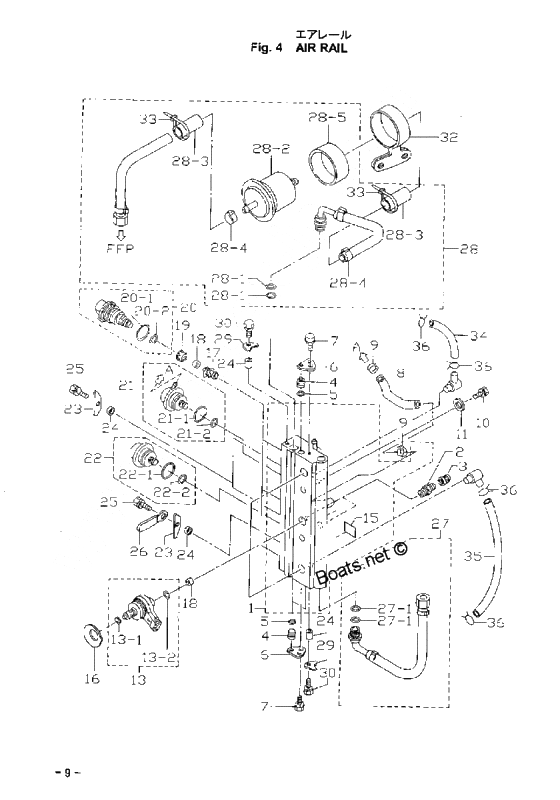

Air rail для Tohatsu MD90A - 2002 года выпуска
-
№АртикулНазвание
-
13T9-10080-0 Air railAir rail
-
23T5-10098-0 Valve Ass'yValve Ass'y
-
33T5-10099-0 Cap, ValveCap, Valve
-
43T5-10167-0 Plug , 10.5Plug , 10.5
-
53T5-10164-0 O-RingO-Ring
-
63T5-10165-0 Stopper, PlugStopper, Plug
-
7910103-6612 BoltBolt
-
93T5-10091-0 Clamp, 21/32Clamp, 21/32
-
11940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
133T5-10310-0 Air injector ass'yAir injector ass'y
-
13-13T5-10317-0 O-RingO-Ring
-
13-23T5-10311-0 O-RingO-Ring
-
153T5-72196-0 Lavel, Air ReilLavel, Air Reil
-
163T5-10312-0 Set pieace, air injectorSet pieace, air injector
-
173T5-10314-0 Inserting FuelB InjectorInserting FuelB Injector
-
183T5-10316-0 Seal, CompressionSeal, Compression
-
193T5-10315-0 Adapter, Fuel InjectorAdapter, Fuel Injector
-
203T5-10300-0 Fuel InjectorFuel Injector
-
20-13T5-10304-0 O-RingO-Ring
-
20-23T5-10303-0 O-RingO-Ring
-
213T5-10148-0 Regulator, FuelRegulator, Fuel
-
21-13T5-10095-0 O-RingO-Ring
-
21-23T5-10094-0 O-RingO-Ring
-
223T5-10090-0 Regulator airRegulator air
-
233T5-10302-0 Plate, Fuel InjectorPlate, Fuel Injector
-
243T5-10153-0 Collar, 6.7-12.7-3Collar, 6.7-12.7-3
-
25910103-6616 BoltBolt
-
26309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
273T9-10088-0 Air hose ass'yAir hose ass'y
-
27-13T5-10162-0 O-RingO-Ring
-
283T9-10089-0 Fuel hose ass'yFuel hose ass'y
-
28-23T5B10143-0 Fuel Filter
, for High PressureFuel Filter
, for High Pressure -
28-33T5-06157-0 Protect tubuProtect tubu
-
28-43T5-10086-0 Clamp 21/32Clamp 21/32
-
28-53T5-10145-0 Rubber, Fuel FilterRubber, Fuel Filter
-
293T5-10169-0 Plate, NipplePlate, Nipple
-
30910103-6616 BoltBolt
-
323T5-10144-1 Band,fuel filterBand,fuel filter
-
333T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
36338-02215-0 ClipClip
