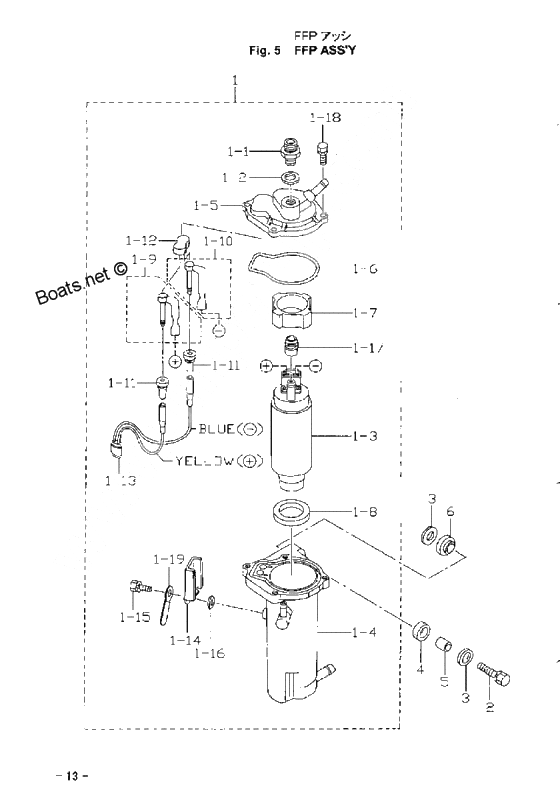

Fuel feed pump (ffp) assembly для Tohatsu MD90A - 2002 года выпуска`
-
№АртикулНазвание
-
13T5-04310-0 FFP, Ass'yFFP, Ass'y
-
1-13T5-04308-0 Adapter, Hose JointAdapter, Hose Joint
-
1-103T5-04237-0 Cable Terminal Ass'y (-)Cable Terminal Ass'y (-)
-
1-113T5-04317-0 Grommet, Cable TerminalGrommet, Cable Terminal
-
1-123T5-04318-0 Grommet Upper,Cable TerminalGrommet Upper,Cable Terminal
-
1-133T5-04238-0 Cord, FFPCord, FFP
-
1-143T5-04239-0 Cover, Cord FFPCover, Cord FFP
-
1-16940103-0500 WasherWasher
-
1-173T5-04319-0 Grommet, PipeGrommet, Pipe
-
1-19309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
1-23T5-04309-0 Metal Washer, 10.2-17-2Metal Washer, 10.2-17-2
-
1-33T5-04302-0 Electric Fuel PumpElectric Fuel Pump
-
1-43T5-04311-0 Case,FFPCase,FFP
-
1-53T5-04312-0 Upper Case,FFPUpper Case,FFP
-
1-63T5-04116-0 Seal, FFPSeal, FFP
-
1-73T5-04313-0 Grommet Upper, FFPGrommet Upper, FFP
-
1-83T5-04314-0 Grommet, Lower FFPGrommet, Lower FFP
-
1-93T5-04236-0 Cable Terminal Ass'yCable Terminal Ass'y
-
2910103-6630 BoltBolt
-
33C8-66308-0 New partNew part
-
43F3-06920-0 Mount Rubber 9-12-2Mount Rubber 9-12-2
-
5346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
63T5-06920-0 Mount RubberMount Rubber
