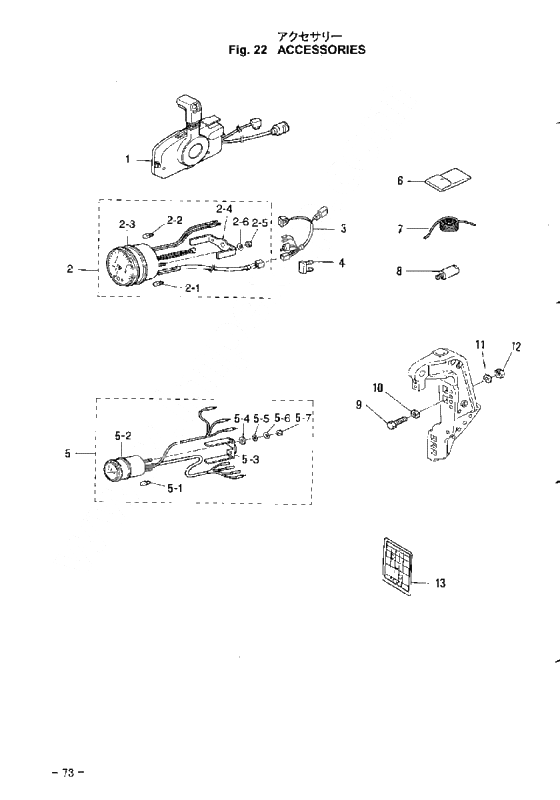

Accessories для Tohatsu MD90A - 2002 года выпуска
-
№АртикулНазвание
-
13T5-84500-0 Remote control box ass'y(rc5f)
Alteration 3U5-84500-0Remote control box ass'y(rc5f)
Alteration 3U5-84500-0 -
23T5-72640-0 ТАХОМЕТР
Alteration 3U5-72640-0ТАХОМЕТР
Alteration 3U5-72640-0 -
2-13B7-72658-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
2-23B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
2-33B7-72656-0 Damper, MeterDamper, Meter
-
2-43B7-72661-0 Plate, FittingPlate, Fitting
-
2-5930203-0500 NutNut
-
2-6941303-0500 Spring WasherSpring Washer
-
33T5-72537-0 Lead wire, meterLead wire, meter
-
4353-76037-0 Plug Cable TerminalPlug Cable Terminal
-
53E0-72571-0 Trim meter ass'yTrim meter ass'y
-
5-23B7-72655-0 Damper, MeterDamper, Meter
-
5-33B7-72665-0 Plate, FittingPlate, Fitting
-
5-43B7-72666-0 Insulated washerInsulated washer
-
5-5940103-0400 WasherWasher
-
5-6941303-0400 Spring WasherSpring Washer
-
5-7930203-0400 NutNut
-
63H6-72100-0 TOOL ASS'YTOOL ASS'Y
-
73B7-72201-0 КанатКанат
-
83B7-60007-0 Flushing Plug
Flusher PlugFlushing Plug
Flusher Plug -
93C7-62133-2 BoltBolt
-
10353-61334-0 WasherWasher
-
11940103-1200 WasherWasher
-
123C7-62139-1 Nut,P1.25Nut,P1.25
-
133T5-72050-0 New partNew part
