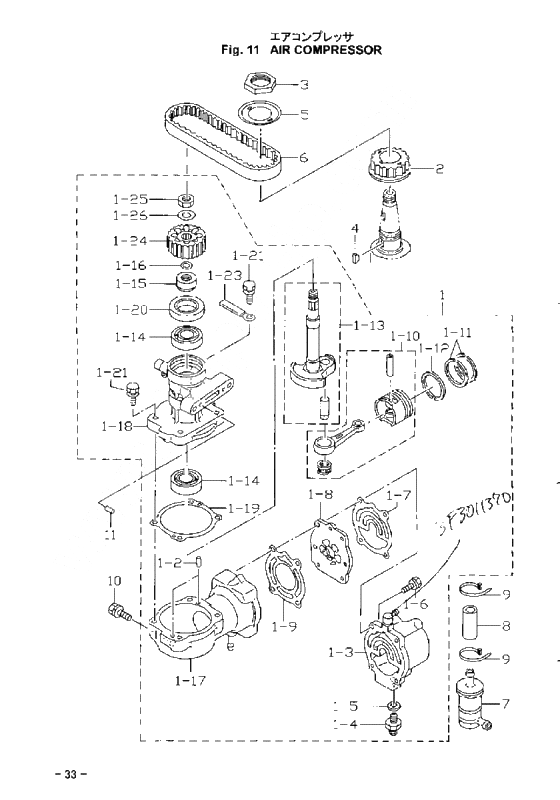

Air compressor для Tohatsu MD90A - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3T9B10000-0 Air compressor ass'y
    Air compressor ass'y
  • 1-10
    3T5-87330-0 Air compressor, piston, connecting rod
    *Assembly of Kit Part
    Air compressor, piston, connecting rod
    *Assembly of Kit Part
  • 1-11
    3T5-10025-0 Piston Ring,Air Comprassor
    *Assembly of Kit Part
    Piston Ring,Air Comprassor
    *Assembly of Kit Part
  • 1-12
    3T5-10027-0 Piston ring, oil
    *Assembly of Kit Part
    Piston ring, oil
    *Assembly of Kit Part
  • 1-13
    3T5-87331-0 Air compressor crank shaft ass'y
    *Assembly of Kit Part
    Air compressor crank shaft ass'y
    *Assembly of Kit Part
  • 1-14
    9601-0-6203 Ball Bearing
    *Assembly of Kit Part
    Ball Bearing
    *Assembly of Kit Part
  • 1-15
    3T5-10042-0 Collar, 13.5-25-13
    *Assembly of Kit Part
    Collar, 13.5-25-13
    *Assembly of Kit Part
  • 1-16
    3T5-10046-0 O-Ring
    *Assembly of Kit Part
    O-Ring
    *Assembly of Kit Part
  • 1-17
    3T9B10050-0 Cylinder,compressor
    *Assembly of Kit Part
    Cylinder,compressor
    *Assembly of Kit Part
  • 1-18
    3T5B10051-0 Housing,Compressor
    *Assembly of Kit Part
    Housing,Compressor
    *Assembly of Kit Part
  • 1-19
    3T5-10054-0 Gasket, Compressor Housing
    *Assembly of Kit Part
    Gasket, Compressor Housing
    *Assembly of Kit Part
  • 1-20
    3T5-10041-0 Oil Seal,25-45-8
    *Assembly of Kit Part
    Oil Seal,25-45-8
    *Assembly of Kit Part
  • 1-22
    334-65012-0 Стопор
    *Assembly of Kit Part
    Стопор
    *Assembly of Kit Part
  • 1-23
    309-06972-0 Clamp,6.5-47.5P
    *Assembly of Kit Part
    Clamp,6.5-47.5P
    *Assembly of Kit Part
  • 1-24
    3T5-10062-0 Driven Pulley
    *Assembly of Kit Part
    Driven Pulley
    *Assembly of Kit Part
  • 1-25
    309-00132-0 Nut, Magneto
    *Assembly of Kit Part
    Nut, Magneto
    *Assembly of Kit Part
  • 1-26
    940121-1000 Washer
    *Assembly of Kit Part
    Washer
    *Assembly of Kit Part
  • 1-3
    3T5B10011-1 Head,compressor
    *Assembly of Kit Part
    Head,compressor
    *Assembly of Kit Part
  • 1-4
    3T5-04308-0 Adapter, Hose Joint
    *Assembly of Kit Part
    Adapter, Hose Joint
    *Assembly of Kit Part
  • 1-5
    3T5-04309-0 Metal Washer, 10.2-17-2
    *Assembly of Kit Part
    Metal Washer, 10.2-17-2
    *Assembly of Kit Part
  • 1-6
    910124-7630 Bolt
    *Assembly of Kit Part
    Bolt
    *Assembly of Kit Part
  • 1-7
    3T5-10012-0 Gasket, Compressor Head
    *Assembly of Kit Part
    Gasket, Compressor Head
    *Assembly of Kit Part
  • 1-8
    3T5-10010-0 Valve Ass'y
    *Assembly of Kit Part
    Valve Ass'y
    *Assembly of Kit Part
  • 1-9
    3T5-10019-0 Gasket, Valve Seat
    *Assembly of Kit Part
    Gasket, Valve Seat
    *Assembly of Kit Part
  • 2
    3T9-10060-0 Drive Pulley
    Drive Pulley
  • 3
    3T5-10068-0 Nut, pulley
    Nut, pulley
  • 4
    3T5-10131-0 Key, Drive Pulley
    Key, Drive Pulley
  • 5
    3T5-10063-0 Belt Guide
    Belt Guide
  • 6
    3T9-10061-0 Drive Belt
    Drive Belt
  • 7
    3T5-10130-0 Воздушный фильтр
    Воздушный фильтр
  • 9
    3T5-84398-0 Band Lead Wire 104
    Band Lead Wire 104
  • 10
    910103-7835 Bolt
    Bolt
