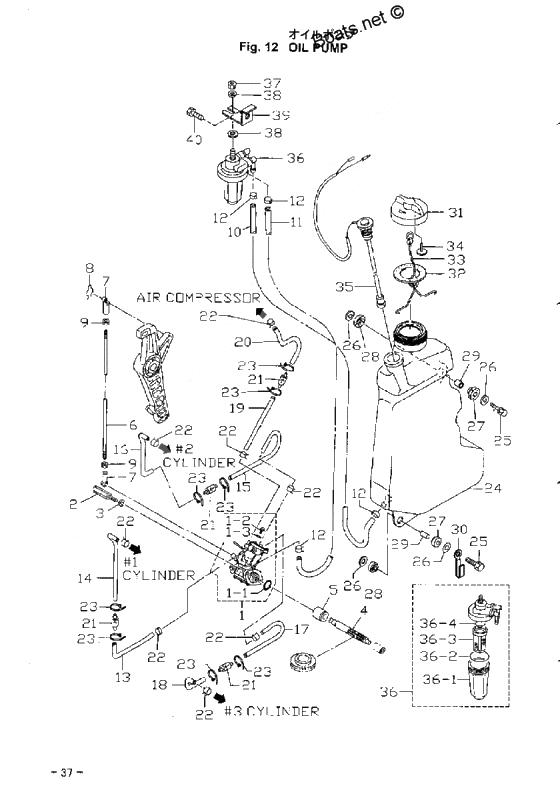

Oil pump для Tohatsu MD90A - 2002 года выпуска`
-
№АртикулНазвание
-
13T9-09000-0 Oil Pump Ass'yOil Pump Ass'y
-
1-13B7-09002-0 O-RingO-Ring
-
1-23B7-09004-0 Bolt, Air VentBolt, Air Vent
-
1-33B7-09006-0 WasherWasher
-
23B7-09050-0 Bolt, oil pumpBolt, oil pump
-
3941303-0600 New partNew part
-
43B7-09065-0 Driven gear, oil pumpDriven gear, oil pump
-
53B7-09069-0 BushingBushing
-
63B7-09053-0 Link rod, oil pumpLink rod, oil pump
-
73B7-05243-0 New partNew part
-
8951703-0500 Snap RetainerSnap Retainer
-
12121-35143-0 ClipClip
-
213B7-09075-1 Check Valve CompleteCheck Valve Complete
-
223B7-09052-0 Clip 6.8Clip 6.8
-
369-70098-2 Clip 6.8Clip 6.8
-
233T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
243T9-71010-0 Oil TankOil Tank
-
25910103-6630 BoltBolt
-
26346-67115-0 WasherWasher
-
27346-67113-0 Mount RubberMount Rubber
-
283B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
29346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
303T4-06972-0 Плата струбциныПлата струбцины
-
313C8-71015-0 Cap Oil TankCap Oil Tank
-
323C8-71016-0 Gasket 36-52-2Gasket 36-52-2
-
333C8-71017-0 Hook Tank CapHook Tank Cap
-
343C8-71018-0 Check Valve Oil TankCheck Valve Oil Tank
-
353T9-71020-0 Oir Level SensorOir Level Sensor
-
363C7-71030-0 Filter Ass'yFilter Ass'y
-
36-13B7-02237-0 CupCup
-
36-23B7-02235-0 O-Ring AO-Ring A
-
36-33C7-71033-0 FilterFilter
-
36-43B7-02236-0 O???? bO???? b
-
38940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
393T5-02239-0 Plate, FilterPlate, Filter
-
40910103-6614 BoltBolt
