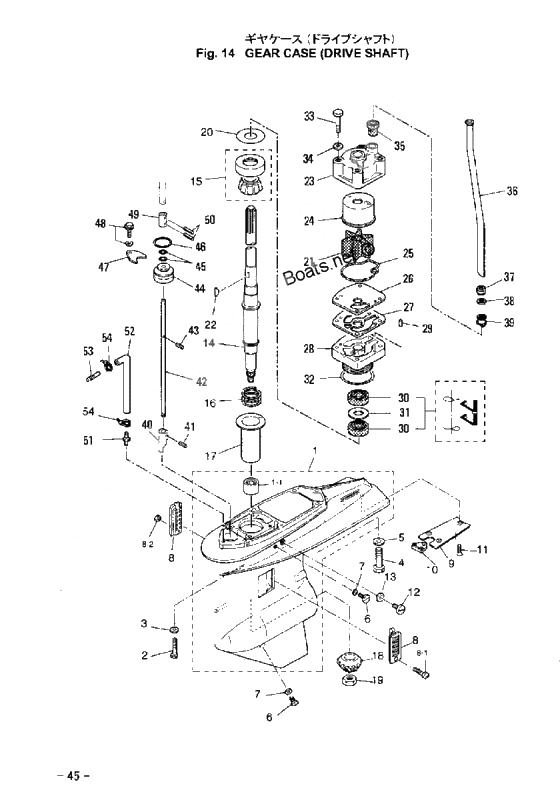

Gear case (drive shaft) для Tohatsu MD90A - 2002 года выпуска`
-
№АртикулНазвание
-
13B7-60000-0 Gear case ass'yGear case ass'y
-
13C7-60215-0 Bearing, 30209Bearing, 30209
-
1-13B7-60102-0 Needle bearing, 25.4-33.3-31.8Needle bearing, 25.4-33.3-31.8
-
23D8-64010-0 Bevel Gear A Ass'yBevel Gear A Ass'y
-
2-13B7-64011-0 Needle Bearing, 25-32-26Needle Bearing, 25-32-26
-
33B7-64015-0 Shim, 47-57-0.15Shim, 47-57-0.15
-
33B7-64016-0 Shim, 47-57-0.1Shim, 47-57-0.1
-
3940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
43B7-64211-0 Propeller ShaftPropeller Shaft
-
43B7-60001-2 Bolt, 10-40Bolt, 10-40
-
53C7-64215-0 ClutchClutch
-
63B7-64218-0 Clutch PinClutch Pin
-
6332-60005-1 Oil plugOil plug
-
332-60005-2 Oil plugOil plug
-
73B7-64219-1 Snap, Clutch PinSnap, Clutch Pin
-
7332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
83C7-60235-1 Water Strainer SetWater Strainer Set
-
83B7-64223-0 Push rod, clutchPush rod, clutch
-
8-1921503-0445 Stud BoltStud Bolt
-
8-2930403-0400 Nylon NutNylon Nut
-
9965002-1609 BallBall
-
93B7-60012-0 Plate, Gear CasePlate, Gear Case
-
103B7-64222-0 Spring Holder, ClutchSpring Holder, Clutch
-
103B7-60013-0 Hole Plug, Gear CaseHole Plug, Gear Case
-
11346-64221-0 Spring ClutchSpring Clutch
-
123B7S60101-1 Housing propeller shaftHousing propeller shaft
-
123B7-60015-0 Water PlugWater Plug
-
3B7-60015-1 Water PlugWater Plug
-
133B7-60016-0 O-RingO-Ring
-
133B7-60211-0 Needle Bearing, 30-40-30Needle Bearing, 30-40-30
-
143B7-64302-0 Drive shaft l
for Transom LDrive shaft l
for Transom L -
143B7-64303-0 Drive Shaft UL
for Transom ULDrive Shaft UL
for Transom UL -
149601-0-6208 Ball bearing, 6208Ball bearing, 6208
-
153B7-60103-0 O-RingO-Ring
-
153B7-60213-0 Taper roller bearing, 32305Taper roller bearing, 32305
-
163B7-64037-0 Shim, 42-50-0.1Shim, 42-50-0.1
-
16353-64327-0 Пружина валаПружина вала
-
173C7-64093-0 Bevel Gear CBevel Gear C
-
173B7-64328-0 Guide, drive shaftGuide, drive shaft
-
183B7-64032-0 Washer, t=3.2Washer, t=3.2
-
183B7-64034-0 Washer, t=3.0Washer, t=3.0
-
183B7-64035-0 Washer, t=3.0Washer, t=3.0
-
183B7-64020-0 New partNew part
-
193B7-60111-0 Oil seal, 30-50-12Oil seal, 30-50-12
-
193B7-64027-0 Nut, Bevel Gear BNut, Bevel Gear B
-
203C7-60108-0 Bolt 8-30 precoatedBolt 8-30 precoated
-
20353-64014-0 Shim, 52-60.5-0.3Shim, 52-60.5-0.3
-
20353-64015-0 Shim,52-60.5-0.15Shim,52-60.5-0.15
-
20353-64016-0 Shim,52-60.5-0.1Shim,52-60.5-0.1
-
21940203-0800 WasherWasher
-
213C7-65021-1 Impeller water pumpImpeller water pump
-
223E0-64238-0 Poropeller hub kitPoropeller hub kit
-
223B7-65022-0 Key, water pump impellerKey, water pump impeller
-
22-13E0-64235-0 Foward Thrust WasherFoward Thrust Washer
-
22-23E0-64236-0 Drive sleeveDrive sleeve
-
22-33E0-64237-0 Adapter, drive sleeveAdapter, drive sleeve
-
233C7-65016-0 Water Pump CaseWater Pump Case
-
233E0-64176-0 Propeller m-11(3x355x279)Propeller m-11(3x355x279)
-
233E0-64181-0 Propeller m-13 (3x355x330)Propeller m-13 (3x355x330)
-
233E0-64185-0 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
STDProp m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
STD -
3N4B64532-1 Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)Prop m-15 70c 90a 115a2 120a2 140a2 (13.75 x 15 pitch)
-
233E0-64189-0 Propeller m-17 (3x336x432)Propeller m-17 (3x336x432)
-
233E0-64194-0 Propeller m-1900 (3x330x483)Propeller m-1900 (3x330x483)
-
233E0-64196-0 Poropeller m-21 (3x324x533)Poropeller m-21 (3x324x533)
-
24353-64121-0 Nut PropellerNut Propeller
-
243C7-65011-0 Liner Water Pump CaseLiner Water Pump Case
-
25345-64124-0 WasherWasher
-
253C7-65018-0 Seal Water Pump CaseSeal Water Pump Case
-
26951503-0325 Split PinSplit Pin
-
263C7-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
273B7-60217-1 Trim TabTrim Tab
-
273C7-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
283C7-65017-2 Pump Case LowerPump Case Lower
-
29940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
29334-65012-0 СтопорСтопор
-
303C7-60223-1 Oil seal, 22-42-7Oil seal, 22-42-7
-
30930403-0800 Nylon NutNylon Nut
-
313E0-64187-0 Propeller m-16(3x336x406)Propeller m-16(3x336x406)
-
31346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
313B7-60219-0 Packing, Trim TabPacking, Trim Tab
-
323B7-65015-0 O-RingO-Ring
-
353C7-65014-0 Lower Seal Rubber Water PipeLower Seal Rubber Water Pipe
-
363C7-65110-0 Water Pipe L
for Transom LWater Pipe L
for Transom L -
363C7-65120-0 Water Pipe UL
for Transom ULWater Pipe UL
for Transom UL -
373C7-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
38345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
393C7-65204-0 Locking Rubber Water PipeLocking Rubber Water Pipe
-
403B7-66011-1 Clutch CamClutch Cam
-
41951403-3516 New partNew part
-
43951403-3510 New partNew part
-
443B7-66031-1 Bushing, Cam Rod / O-Ring,1.9-6.8Bushing, Cam Rod / O-Ring,1.9-6.8
-
45345-66021-0 O-RingO-Ring
-
463B7-66023-0 O-RingO-Ring
-
47353-66024-0 StopperStopper
-
48910103-6612 BoltBolt
-
49353-66241-1 New partNew part
-
513C7-60017-0 Nipple 6-1/8Nipple 6-1/8
-
533C7-60018-0 Золотник
OPЗолотник
OP -
54353-84398-0 Band Lead Wire
OPBand Lead Wire
OP
