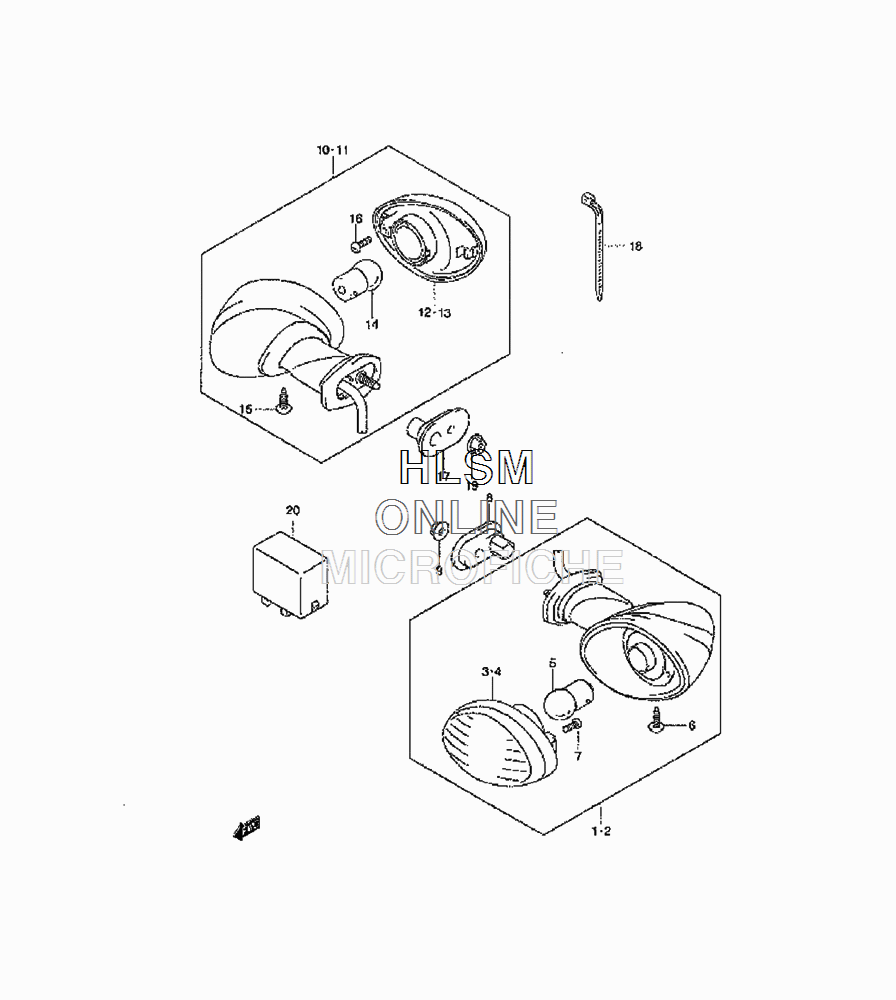

TURN SIGNAL ASSY. для Suzuki SFV650 GLADIUS - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    35601-29FB0 LAMP ASSY, FRONT TURNSIGNAL RIGHT HAND (INC 3-6)
    LAMP ASSY, FRONT TURNSIGNAL RIGHT HAND (INC 3-6)
  • 2
    35602-29FB0 LAMP ASSY, FRONT TURNSIGNAL LEFT HAND (INC 3-6)
    LAMP ASSY, FRONT TURNSIGNAL LEFT HAND (INC 3-6)
  • 3
    35612-29FA0 LENS, R
    LENS, R
  • 4
    35632-29FA0 LENS, L
    LENS, L
  • 5
    09471-12186 BULB, 12V10W
    BULB, 12V10W
  • 6
    03242-0416B SCREW
    SCREW
  • 7
    35629-31F60 PLATE, FRONT TURNSIGNAL
    PLATE, FRONT TURNSIGNAL
  • 8
    08316-1005B NUT, FRONT TURNSIGNAL
    NUT, FRONT TURNSIGNAL
  • 9
    35603-29FA0 LAMP ASSY, REAR TURNSIGNAL RIGHT HAND (INC 11-14)
    LAMP ASSY, REAR TURNSIGNAL RIGHT HAND (INC 11-14)
  • 10
    35604-29FA0 LAMP ASSY, REAR TURNSIGNAL LEFT HAND (INC 11-14)
    LAMP ASSY, REAR TURNSIGNAL LEFT HAND (INC 11-14)
  • 11
    35612-29FA0 LENS, R
    LENS, R
  • 12
    35632-29FA0 LENS, L
    LENS, L
  • 13
    09471-12186 BULB, 12V10W
    BULB, 12V10W
  • 14
    03242-0416B SCREW
    SCREW
  • 15
    35629-31F60 PLATE, REAR TURNSIGNAL
    PLATE, REAR TURNSIGNAL
  • 16
    09407-18402 CLAMP, REAR TURNSIGNAL
    CLAMP, REAR TURNSIGNAL
  • 17
    08316-1005B NUT, REAR TURNSIGNAL
    NUT, REAR TURNSIGNAL
  • 18
    38610-03F00 RELAY ASSY, TURNSIGNAL
    RELAY ASSY, TURNSIGNAL
