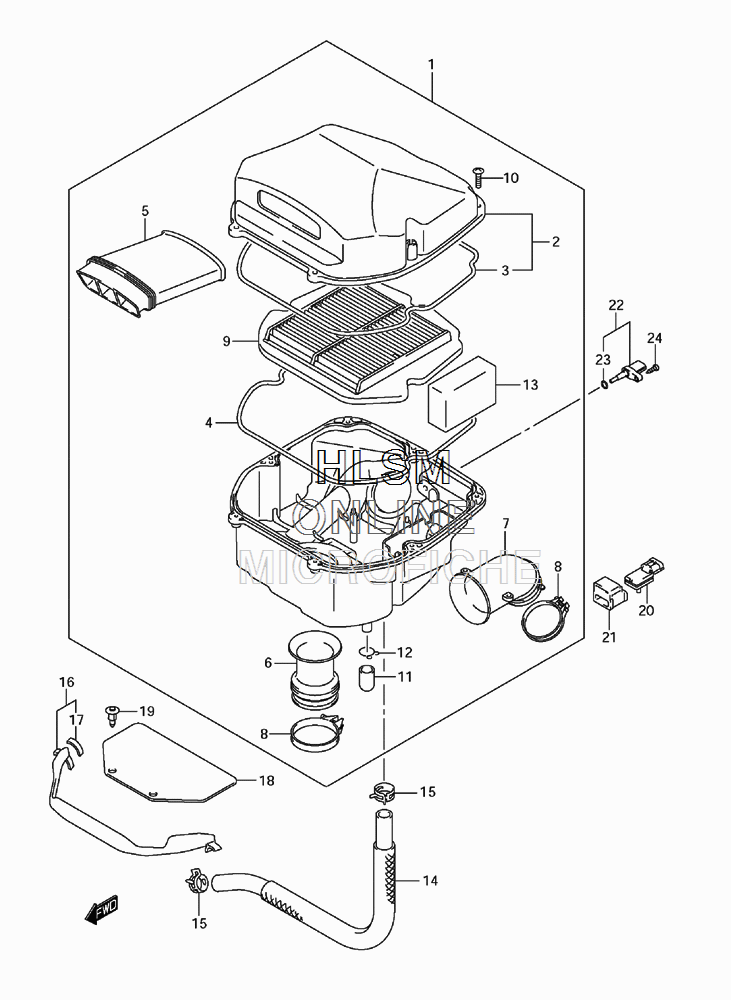

AIR CLEANER для Suzuki SFV650 GLADIUS - 2009 года выпуска

№

Артикул

Название
1

13700-44H00 CLEANER ASSY, AIR (INC 2-13)

CLEANER ASSY, AIR (INC 2-13)
2

13740-44H00 CAP, AIR CLEANER

CAP, AIR CLEANER
3

13746-44H00 GASKET

GASKET
4

13746-44H00 GASKET

GASKET
5

13891-44H00 TUBE, INLET

TUBE, INLET
6

13881-44H00 TUBE, OUTLET

TUBE, OUTLET
7

13882-44H00 TUBE, OUTLET

TUBE, OUTLET
8

13826-44H00 CLAMP, OUTLET TUBE

CLAMP, OUTLET TUBE
9

13780-44H00 FILTER, AIR CLEANER

FILTER, AIR CLEANER
10

03541-0520A SCREW

SCREW
11

13859-41B10 PLUG

PLUG
12

09401-14301 CLIP

CLIP
13

13788-44H00 FILTER, BREATHER

FILTER, BREATHER
14

13850-44H00 TUBE, BREATHER

TUBE, BREATHER
15

09401-20405 CLIP

CLIP
16

13840-44H00 COVER, INLET (INC 17)

COVER, INLET (INC 17)
17

44894-24A00 CUSHION

CUSHION
18

13841-44H00 SHEET

SHEET
19

09409-08308-5ES CLIP

CLIP
20

18591-41F00 SENSOR, BOOST

SENSOR, BOOST
21

18595-41F00 HOLDER

HOLDER
22

13650-41F10 SENSOR AIR TEMP (INC 23)

SENSOR AIR TEMP (INC 23)
23

13655-41F10 O RING

O RING
24

03511-0516A SCREW

SCREW
