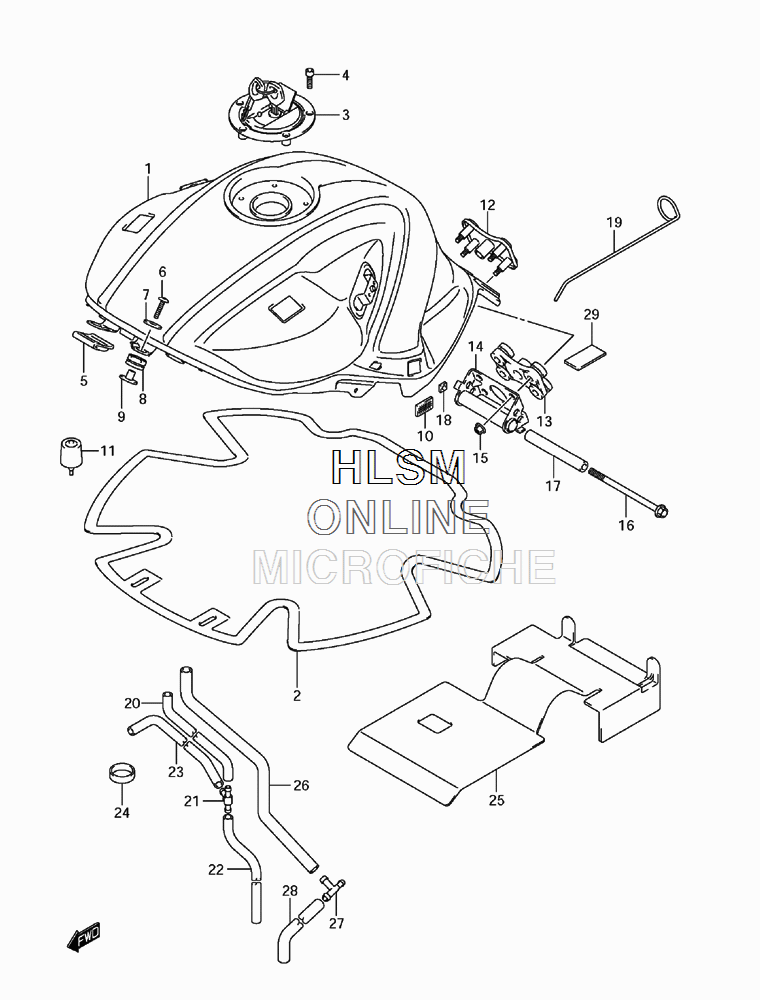

FUEL TANK для Suzuki SFV650 GLADIUS - 2009 года выпуска
-
№АртикулНазвание
-
144100-44H00-YAY TANK ASSY, FUEL (BLACK) (FOR YAY)TANK ASSY, FUEL (BLACK) (FOR YAY)
-
144100-44H00-YRH TANK ASSY, FUEL (MAGENTA) (FOR GDW) (EXCEPT CALIF)TANK ASSY, FUEL (MAGENTA) (FOR GDW) (EXCEPT CALIF)
-
144100-44H00-YSF TANK ASSY, FUEL (BLUE) (FOR GLR) (EXCEPT CALIF)TANK ASSY, FUEL (BLUE) (FOR GLR) (EXCEPT CALIF)
-
144100-44H20-YAY TANK ASSY, FUEL (BLACK) (FOR YAY) (CALIF ONLY)TANK ASSY, FUEL (BLACK) (FOR YAY) (CALIF ONLY)
-
144100-44H20-YSF TANK ASSY, FUEL (BLUE) (FOR GLR) (CALIF ONLY)TANK ASSY, FUEL (BLUE) (FOR GLR) (CALIF ONLY)
-
244191-44H00 SHIELD, TANK HEATSHIELD, TANK HEAT
-
344200-16850 CAP SET, FUEL TANK (EXCEPT CALIF)CAP SET, FUEL TANK (EXCEPT CALIF)
-
344200-16870 CAP SET, FUEL TANK (CALIF ONLY)CAP SET, FUEL TANK (CALIF ONLY)
-
409106-05017 BOLTBOLT
-
544546-44H00 RUBBER, FRONTRUBBER, FRONT
-
609139-06029 SCREW, FRONTSCREW, FRONT
-
709160-06054 WASHERWASHER
-
844511-16G00 CUSHION, FRONTCUSHION, FRONT
-
944512-16G00 WASHER, LOWERWASHER, LOWER
-
1047912-37H00 FASTENER, SIDEFASTENER, SIDE
-
1144542-29G00 CUSHION, SIDECUSHION, SIDE
-
1244570-16G00 BRACKET, REAR UPPERBRACKET, REAR UPPER
-
1344542-16G00 CUSHION, LOWERCUSHION, LOWER
-
1444530-44H00 BRACKET, REAR LOWERBRACKET, REAR LOWER
-
1508319-3106A NUTNUT
-
1609103-06060 BOLT, JOINTBOLT, JOINT
-
1744561-35F00 SPACER, JOINTSPACER, JOINT
-
1808316-1006A NUTNUT
-
1944574-16G00 STAY, FUEL TANKSTAY, FUEL TANK
-
2044424-44H00 HOSE, BREATHER NO.1HOSE, BREATHER NO.1
-
2109367-06007 3 WAY, BREATHER3 WAY, BREATHER
-
2209352-50823-600 HOSE, BREATHER NO.2 (L600!420)HOSE, BREATHER NO.2 (L600!420)
-
2344425-09E00 HOSEHOSE
-
2409352-12163-600 HOSE, JOINT (L600!10)HOSE, JOINT (L600!10)
-
2544271-44H00 SHEET, SHIELD RUBBERSHEET, SHIELD RUBBER
-
2644423-44H00 HOSE, TANK WATER DRAINHOSE, TANK WATER DRAIN
-
2709367-08005 3 WAY, WATER DRAIN3 WAY, WATER DRAIN
-
2844423-44H10 HOSE, WATER DRAINHOSE, WATER DRAIN
-
2936920-08D10 CUSHIONCUSHION
