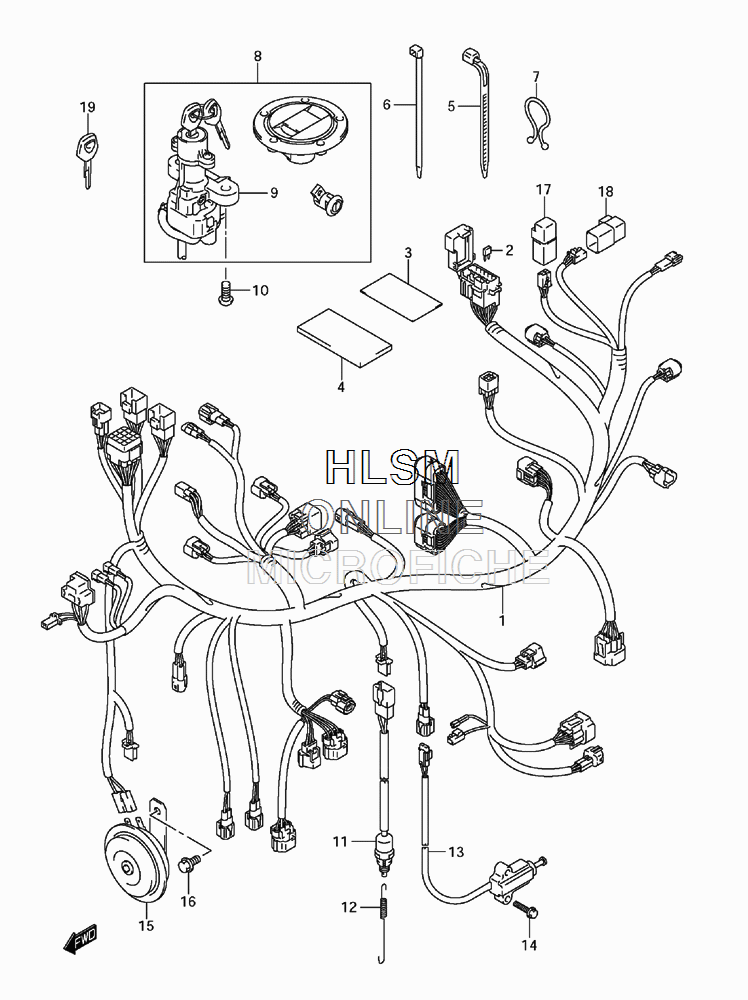

ELECTRICAL - WIRING HARNESS для Suzuki SFV650 GLADIUS - 2009 года выпуска
-
№АртикулНазвание
-
136610-44H30 HARNESS, WIRING (INC 2-2) (EXCEPT CALIF)HARNESS, WIRING (INC 2-2) (EXCEPT CALIF)
-
136610-44H40 HARNESS, WIRING (INC 2-2) (CALIF ONLY)HARNESS, WIRING (INC 2-2) (CALIF ONLY)
-
209481-10501 FUSE (10A)FUSE (10A)
-
209481-15501 FUSE (15A)FUSE (15A)
-
336611-16G00 PROTECTOR (28X50X0.13)PROTECTOR (28X50X0.13)
-
436920-08D00 PROTECTOR (30X60X3)PROTECTOR (30X60X3)
-
509407-11401 CLAMP (L:95)CLAMP (L:95)
-
509407-14403 CLAMP (L:125)CLAMP (L:125)
-
509407-18402 CLAMP (L:165)CLAMP (L:165)
-
509407-19401 CLAMP (L:190)CLAMP (L:190)
-
609407-14407 CLAMP (L:145)CLAMP (L:145)
-
709408-00012 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
837000-16840 LOCK SET (INC 9) (CALIF ONLY)LOCK SET (INC 9) (CALIF ONLY)
-
837000-16890 LOCK SET (INC 9) (EXCEPT CALIF)LOCK SET (INC 9) (EXCEPT CALIF)
-
937100-16G00 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1009139-08016 SCREW, STEERING LOCKSCREW, STEERING LOCK
-
1137740-44H00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1209443-06016 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
1337840-25D00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1401547-0625A BOLT, SIDE STAND SWITCHBOLT, SIDE STAND SWITCH
-
1538500-16G01 HORN ASSYHORN ASSY
-
1601550-0812A BOLT, HORNBOLT, HORN
-
1738740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
1838740-24X50 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
1937146-33E00 KEY, BLANKKEY, BLANK
