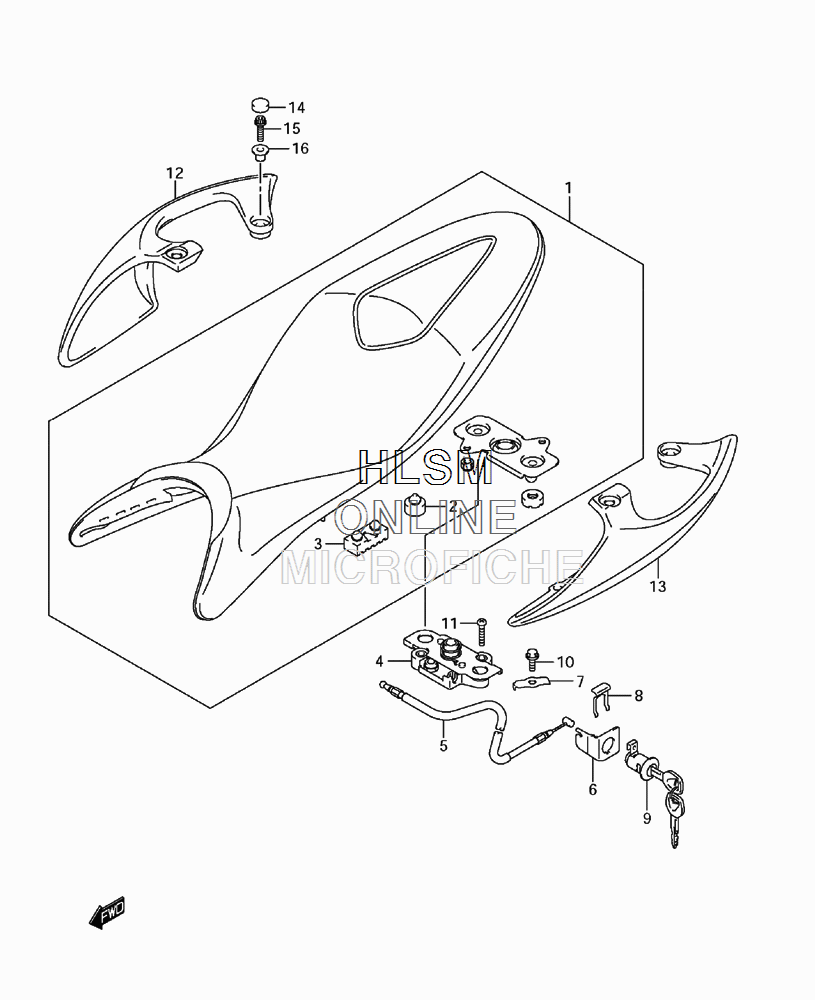

SEAT для Suzuki SFV650 GLADIUS - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    45100-44H00-GZJ SEAT ASSY (INC 2-3)
    SEAT ASSY (INC 2-3)
  • 2
    09321-10011 CUSHION
    CUSHION
  • 3
    45149-42F00 CUSHION
    CUSHION
  • 4
    45220-15H00 BRACKET, SEAT SUPPORT
    BRACKET, SEAT SUPPORT
  • 5
    45280-44H00 CABLE, SEAT LOCK
    CABLE, SEAT LOCK
  • 6
    45288-14F00 GUIDE, SEAT LOCK CABLE
    GUIDE, SEAT LOCK CABLE
  • 7
    45288-44H00 GUIDE, SEAT LOCK CABLE
    GUIDE, SEAT LOCK CABLE
  • 8
    45289-11F00 PLATE, SEAT LOCK ASSY
    PLATE, SEAT LOCK ASSY
  • 9
    95700-14810 LOCK ASSY, SEAT
    LOCK ASSY, SEAT
  • 10
    01547-0612A BOLT, SEAT LOCK CABLE
    BOLT, SEAT LOCK CABLE
  • 11
    02112-0630A SCREW, SEAT SUPPORT BRK
    SCREW, SEAT SUPPORT BRK
  • 12
    46211-44H00-YD8 HANDLE, PILLION RIDER RIGHT HAND (SILVER)
    HANDLE, PILLION RIDER RIGHT HAND (SILVER)
  • 13
    46231-44H00-YD8 HANDLE, PILLION RIDER LEFT HAND (SILVER) (EXCEPT CALIF)
    HANDLE, PILLION RIDER LEFT HAND (SILVER) (EXCEPT CALIF)
  • 13
    46231-44H10-YD8 HANDLE, PILLION RIDER LEFT HAND (SILVER) (CALIF ONLY)
    HANDLE, PILLION RIDER LEFT HAND (SILVER) (CALIF ONLY)
  • 14
    46271-14G00 CAP, PILLION RIDER HANDLE
    CAP, PILLION RIDER HANDLE
  • 15
    09106-08151 BOLT, PILLION RIDER HANDLE FR
    BOLT, PILLION RIDER HANDLE FR
  • 16
    09169-08049 WASHER, PILLION RIDER HANDLE
    WASHER, PILLION RIDER HANDLE
