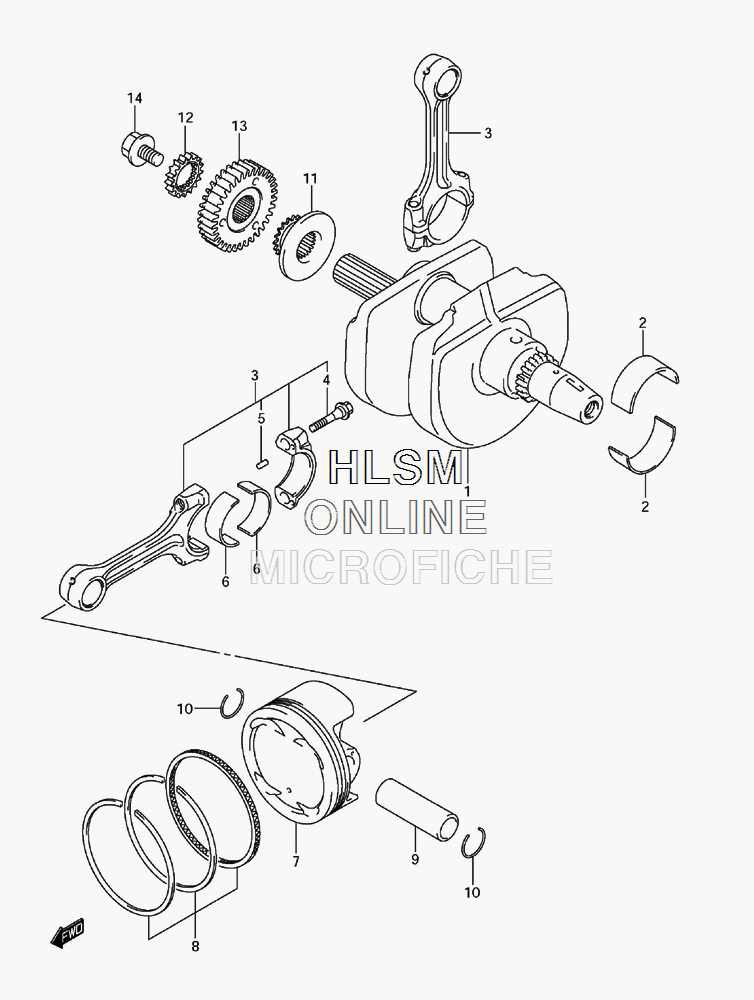

CRANKSHAFT W/ PISTON для Suzuki SFV650 GLADIUS - 2009 года выпуска

№

Артикул

Название
1

12220-44H00 CRANKSHAFT

CRANKSHAFT
2

12229-44H00-0A0 BEARING, CRANKSHAFT (GREEN)

BEARING, CRANKSHAFT (GREEN)
2

12229-44H00-0B0 BEARING, CRANKSHAFT (BLACK)

BEARING, CRANKSHAFT (BLACK)
2

12229-44H00-0C0 BEARING, CRANKSHAFT (BROWN)

BEARING, CRANKSHAFT (BROWN)
3

12160-17G10 CONNECTING ROD ASSY (INC 4-5)

CONNECTING ROD ASSY (INC 4-5)
4

12163-24F10 BOLT, CONNECTING ROD

BOLT, CONNECTING ROD
5

04221-04089 PIN, CONNECTING ROD

PIN, CONNECTING ROD
6

12164-46E01-0A0 BEARING, CRANK PIN (GREEN)

BEARING, CRANK PIN (GREEN)
6

12164-46E01-0B0 BEARING, CRANK PIN (BLACK)

BEARING, CRANK PIN (BLACK)
6

12164-46E01-0C0 BEARING, CRANK PIN (BROWN)

BEARING, CRANK PIN (BROWN)
6

12164-46E01-0D0 BEARING, CRANK PIN (YELLOW)

BEARING, CRANK PIN (YELLOW)
7

12111-44H00-0F0 PISTON

PISTON
8

12140-15H00 RING SET, PISTON

RING SET, PISTON
9

12151-05A00 PIN, PISTON

PIN, PISTON
10

09381-20004 CIRCLIP

CIRCLIP
11

12731-19F00 SPROCKET, CAM CHAIN DRIVE

SPROCKET, CAM CHAIN DRIVE
12

17451-17G00 GEAR, WATER PUMP DRIVE

GEAR, WATER PUMP DRIVE
13

21100-44H00 GEAR, PRIMARY DRIVE

GEAR, PRIMARY DRIVE
14

09103-10338 BOLT, PRIMARY DRIVE GEAR

BOLT, PRIMARY DRIVE GEAR
