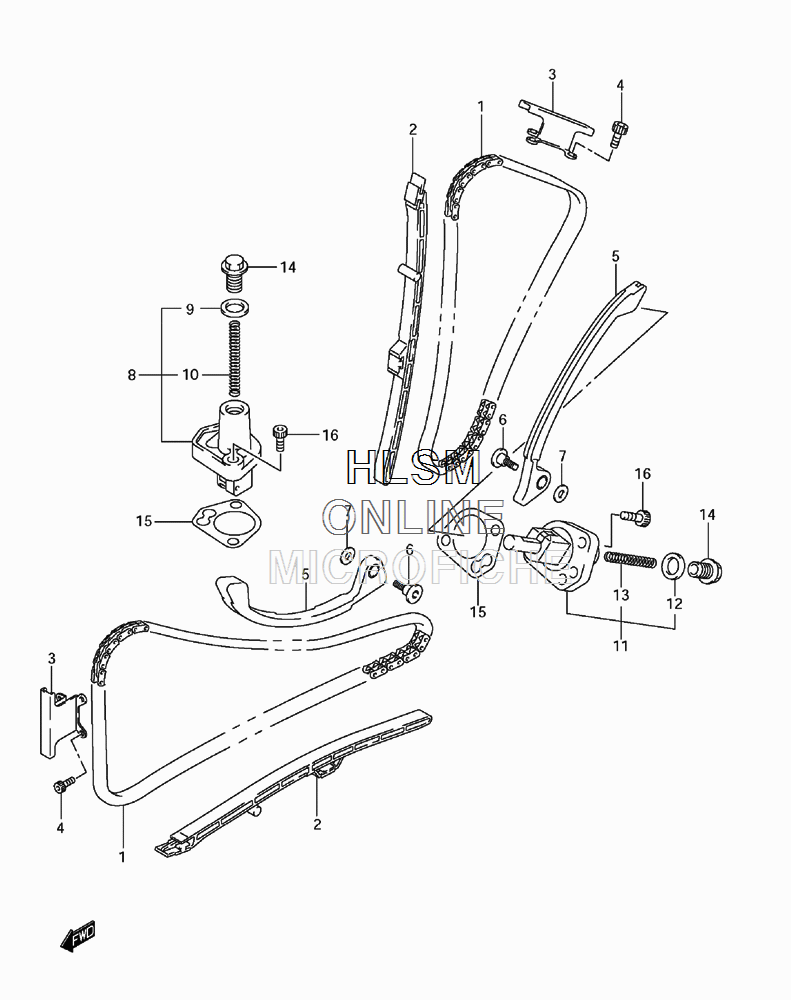

CAM CHAIN ASSY. W/ TENSIONER для Suzuki SFV650 GLADIUS - 2009 года выпуска
-
№АртикулНазвание
-
112760-19F01 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-44H00 GUIDE, CAM CHAIN NO.1GUIDE, CAM CHAIN NO.1
-
312782-19F00 GUIDE, CAM CHAIN NO.2GUIDE, CAM CHAIN NO.2
-
407130-0612B BOLTBOLT
-
512811-17G00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
612812-35C00 BOLT, CAM CHAIN TENSIONERBOLT, CAM CHAIN TENSIONER
-
708211-06181 WASHERWASHER
-
812830-27G00 ADJUSTER ASSY, TENSIONER FRONT (INC 9-10)ADJUSTER ASSY, TENSIONER FRONT (INC 9-10)
-
912837-24F10 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
1012831-39F00 SPRINGSPRING
-
1112830-27G10 ADJUSTER ASSY, TENSIONER REAR (INC 12-13)ADJUSTER ASSY, TENSIONER REAR (INC 12-13)
-
1212837-24F10 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
1312831-39F00 SPRINGSPRING
-
1412833-17G00 PLUG, TENSIONER ADJUSTERPLUG, TENSIONER ADJUSTER
-
1512837-27G00 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
1607130-0625B BOLTBOLT
