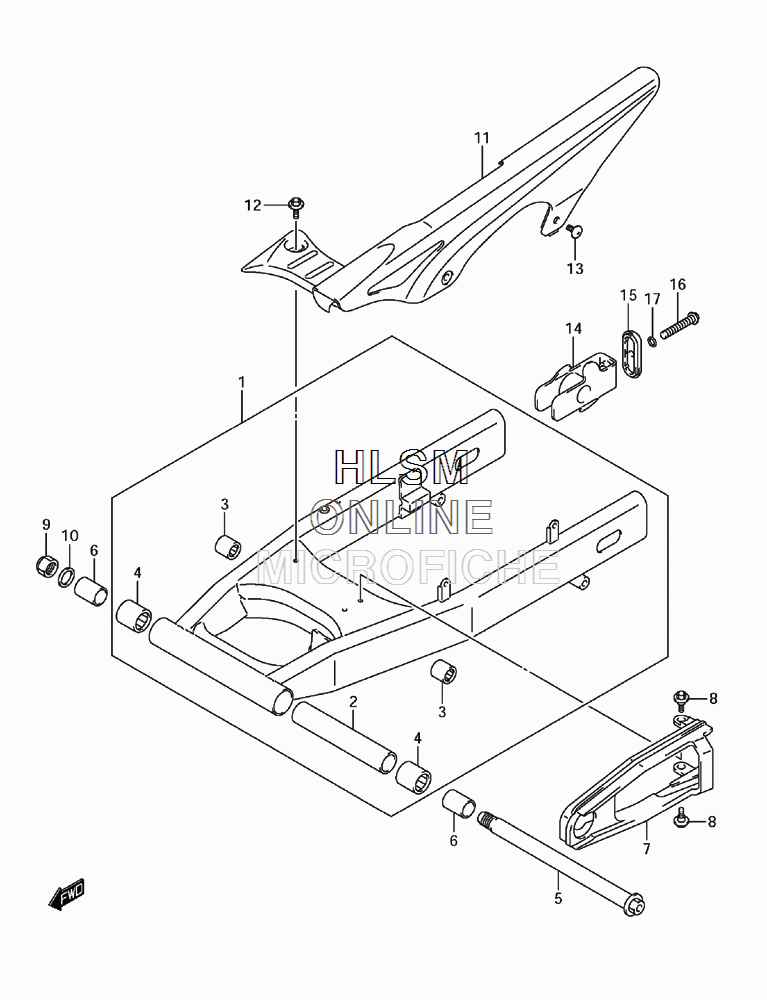

SUSPENSION - REAR SWING ARM для Suzuki SFV650 GLADIUS - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    61000-44H00-YAP SWINGINGARM ASSY, REAR (BLACK) (INC 2-4)
    SWINGINGARM ASSY, REAR (BLACK) (INC 2-4)
  • 2
    61282-17C00 SPACER, RR SWGARM PIVOT
    SPACER, RR SWGARM PIVOT
  • 3
    09263-17037 BEARING, RR CUSHION ROD
    BEARING, RR CUSHION ROD
  • 4
    09263-25059 BEARING, RR SWGARM PIVOT
    BEARING, RR SWGARM PIVOT
  • 5
    61211-31E00 SHAFT, RR SWGARM PIVOT
    SHAFT, RR SWGARM PIVOT
  • 6
    61251-21E00 SPACER, RR SWGARM PIVOT
    SPACER, RR SWGARM PIVOT
  • 7
    61273-44H00 BUFFER, CHAIN TOUCH DEF
    BUFFER, CHAIN TOUCH DEF
  • 8
    09111-06072 BOLT, CHAIN BUFFER
    BOLT, CHAIN BUFFER
  • 9
    09159-18007 NUT, RR SWGARM PIVOT
    NUT, RR SWGARM PIVOT
  • 10
    09160-18030 WASHER, RR SWGARM PIVOT
    WASHER, RR SWGARM PIVOT
  • 11
    61310-44H00 CASE, CHAIN
    CASE, CHAIN
  • 12
    09111-06065 BOLT, CHAIN CASE
    BOLT, CHAIN CASE
  • 13
    09139-06168 SCREW, CHAIN CASE
    SCREW, CHAIN CASE
  • 14
    61410-44H00 ADJUSTER, CHAIN
    ADJUSTER, CHAIN
  • 15
    61421-44H00-13L PLATE, ADJUSTER GUIDE (SILVER)
    PLATE, ADJUSTER GUIDE (SILVER)
  • 16
    09106-08119 BOLT, CHAIN ADJUSTER
    BOLT, CHAIN ADJUSTER
  • 17
    09164-08015 WASHER, CHAIN ADJUSTER
    WASHER, CHAIN ADJUSTER
