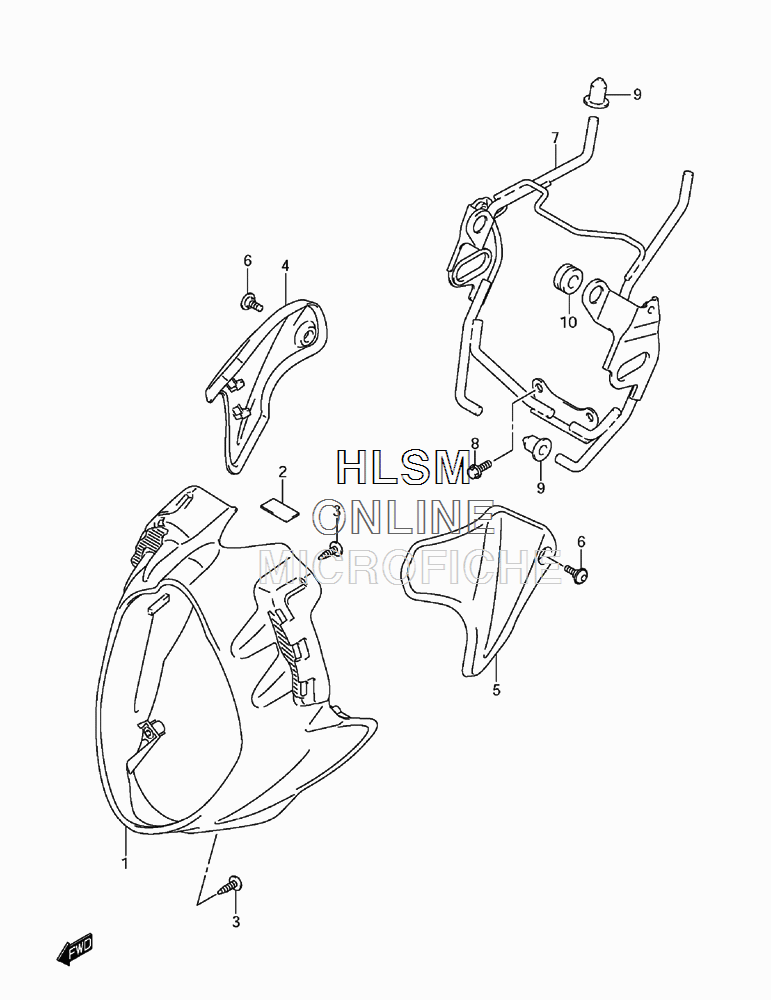

HEADLAMP COVER для Suzuki SFV650 GLADIUS - 2009 года выпуска
-
№АртикулНазвание
-
151811-44H00-291 COVER, HEADLAMP (BLACK)COVER, HEADLAMP (BLACK)
-
244543-10G00 CUSHIONCUSHION
-
303541-0516A SCREWSCREW
-
451821-44H00-YD8 COVER, HEADLAMP RIGHT HAND (SILVER)COVER, HEADLAMP RIGHT HAND (SILVER)
-
551831-44H00-YD8 COVER, HEADLAMP RIGHT HAND (SILVER)COVER, HEADLAMP RIGHT HAND (SILVER)
-
609139-05064 SCREWSCREW
-
751850-44H00 BRACE, HOUSINGBRACE, HOUSING
-
801547-0612B BOLTBOLT
-
951831-21D00 CUSHION, BRACECUSHION, BRACE
-
1009320-10501 CUSHION, HEADLAMPCUSHION, HEADLAMP
