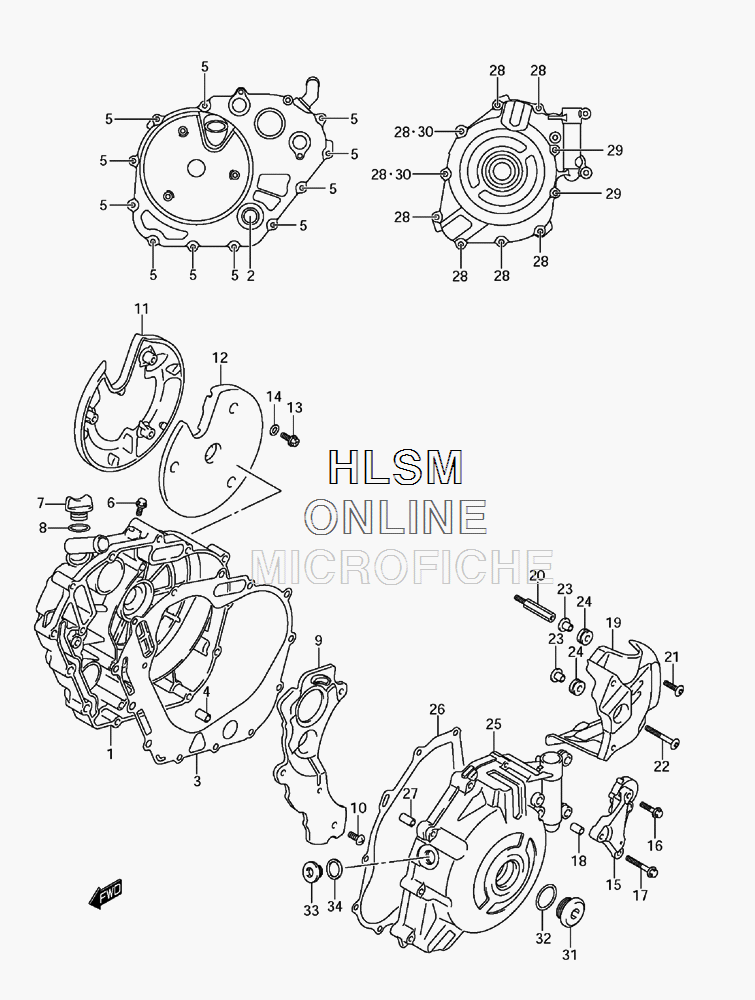

CRANKCASE COVER для Suzuki SFV650 GLADIUS - 2009 года выпуска

№

Артикул

Название
1

11340-44H00 COVER, CLUTCH (INC 2)

COVER, CLUTCH (INC 2)
2

11971-33210 LENS, OIL LEVEL CHECK

LENS, OIL LEVEL CHECK
3

11482-17G00 GASKET, CLUTCH COVER INNER

GASKET, CLUTCH COVER INNER
4

04211-09149 PIN

PIN
5

09103-06214 BOLT

BOLT
6

11971-25D00 PLUG, OIL FILLER

PLUG, OIL FILLER
7

09280-17003 O RING (D:3.1,ID:16.8)

O RING (D:3.1,ID:16.8)
8

11343-44H00 SEPARATOR, OIL

SEPARATOR, OIL
9

09106-06098 SCREW

SCREW
10

09103-06188 PLUG

PLUG
11

11342-44H00 COVER, CLUTCH OUTER

COVER, CLUTCH OUTER
12

11344-44H00 DAMPER

DAMPER
13

02162-06167 BOLT

BOLT
14

09168-06023 GASKET

GASKET
15

11361-44H00 COVER, ENGINE SPROCKET INNER

COVER, ENGINE SPROCKET INNER
16

01547-0620A BOLT

BOLT
17

01547-0635A BOLT

BOLT
18

04211-09129 PIN

PIN
19

11371-44H00 COVER, ENGINE SPROCKET OUTER

COVER, ENGINE SPROCKET OUTER
20

11372-22H00 BOLT

BOLT
21

09139-06028 BOLT (6X20)

BOLT (6X20)
22

09139-06105 BOLT (6X40)

BOLT (6X40)
23

09169-06062 SPACER

SPACER
24

09320-09016 CUSHION

CUSHION
25

11351-44H00 COVER, MAGNETO

COVER, MAGNETO
26

11483-19F00 GASKET, MAGNETO COVER

GASKET, MAGNETO COVER
27

04211-09149 PIN

PIN
28

09103-06214 BOLT

BOLT
29

09103-06239 BOLT

BOLT
30

09168-06023 GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)
31

09259-26011 PLUG

PLUG
32

09280-22008 O RING (D:3.1,ID:22.7)

O RING (D:3.1,ID:22.7)
33

09248-16012 PLUG

PLUG
34

09168-16002 GASKET (13.8X18.8X0.4)

GASKET (13.8X18.8X0.4)
