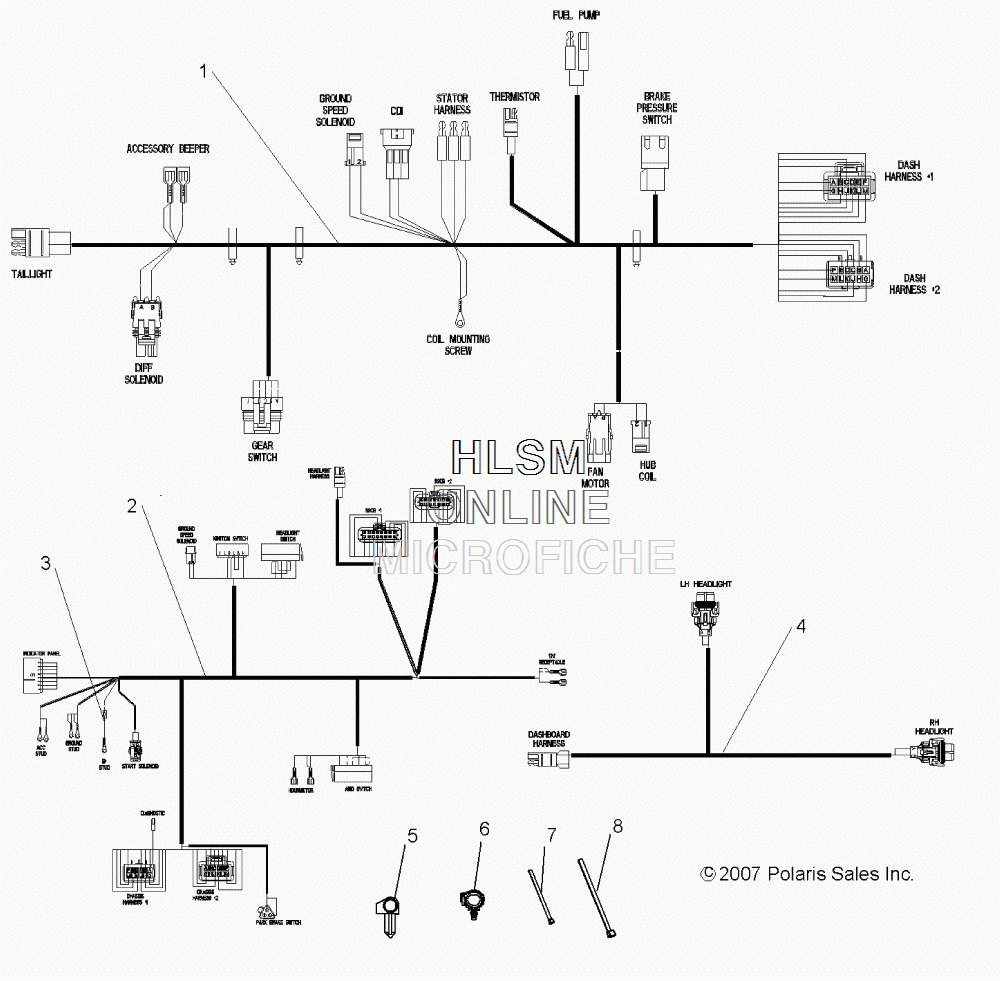

WIRE HARNESSES для Polaris RANGER 2X4 500 CARB - GREEN [R09RB50AF] - 2009 года выпуска
-
№АртикулНазвание
-
12411165 HARNESS, CHASSISHARNESS, CHASSIS
-
22410964 HARNESS, DASH (INCL. 3)HARNESS, DASH (INCL. 3)
-
32202147 KIT, FUSIBLE LINK, .5MMKIT, FUSIBLE LINK, .5MM
-
42410979 HARNESS, HEADLIGHT/HOODHARNESS, HEADLIGHT/HOOD
-
57670102 CLIPCLIP
-
64020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
77080138 CABLE TIECABLE TIE
-
87080761 CABLE TIECABLE TIE
