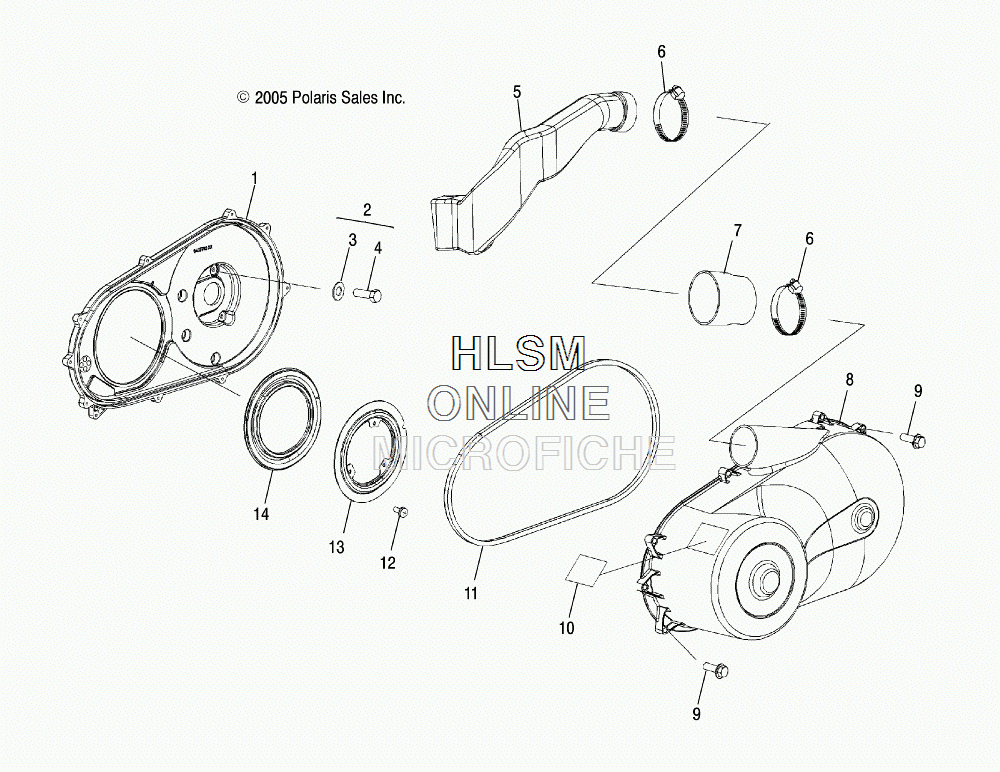

CLUTCH COVER для Polaris RANGER 2X4 500 CARB - GREEN [R09RB50AF] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2632979 ASM., COVER, CLUTCH, INNER (INCL. 11,14)
    ASM., COVER, CLUTCH, INNER (INCL. 11,14)
  • 2
    7517599 ASM., BOLT/WASHER (INCL. 3,4)
    ASM., BOLT/WASHER (INCL. 3,4)
  • 3
    7555748 WASHER
    WASHER
  • 4
    7517312 SCREW
    SCREW
  • 5
    5436960 DUCT, CLUTCH, AIR OUTLET
    DUCT, CLUTCH, AIR OUTLET
  • 6
    7081279 CLAMP, NARROW BAND
    CLAMP, NARROW BAND
  • 7
    5435684 HOSE, CLUTCH AIR OUTLET
    HOSE, CLUTCH AIR OUTLET
  • 8
    5438142-070 COVER, CLUTCH, OUTER (BLACK)
    COVER, CLUTCH, OUTER (BLACK)
  • 9
    7512094 SCREW
    SCREW
  • 10
    7172563 DECAL, WARNING, CLUTCH COVER
    DECAL, WARNING, CLUTCH COVER
  • 11
    5521738 SEAL, COVER, CLUTCH, OUTER
    SEAL, COVER, CLUTCH, OUTER
  • 12
    3084205 ASM., SCREW AND WASHER
    ASM., SCREW AND WASHER
  • 13
    5242046 BRACKET, CLUTCH SEAL
    BRACKET, CLUTCH SEAL
  • 14
    5412725 SEAL, COVER, CLUTCH, INNER
    SEAL, COVER, CLUTCH, INNER
