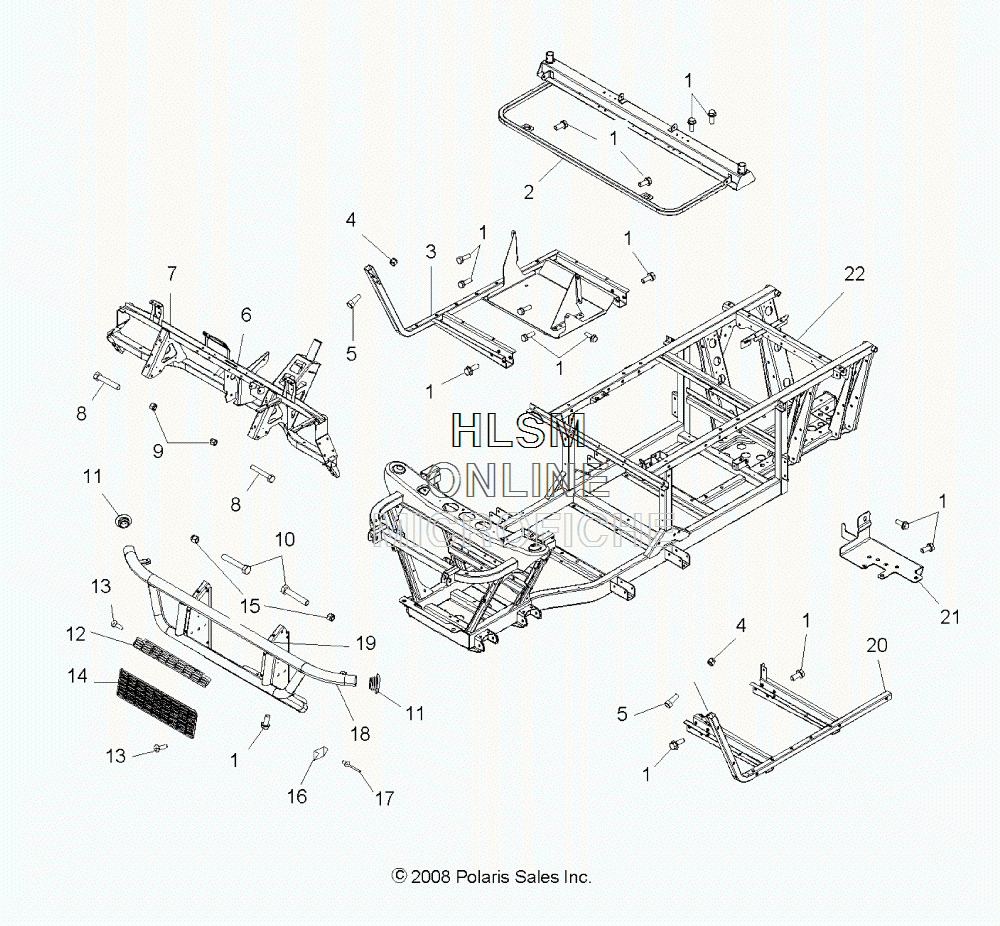

FRAME AND FRONT BUMPER для Polaris RANGER 2X4 500 CARB - GREEN [R09RB50AF] - 2009 года выпуска
-
№АртикулНазвание
-
17518555 BOLTBOLT
-
21015312-067 BASE, CAB/SEAT (BLACK)BASE, CAB/SEAT (BLACK)
-
31015378-067 SUPPORT, FLOOR, RIGHT HAND (BLACK)SUPPORT, FLOOR, RIGHT HAND (BLACK)
-
47547180 NUT, FLANGENUT, FLANGE
-
57515522 BOLTBOLT
-
65521131 TRIM, EDGETRIM, EDGE
-
71015992-067 SUPPORT, CAB, FRONT (BLACK)SUPPORT, CAB, FRONT (BLACK)
-
87518563 BOLT, FLANGEBOLT, FLANGE
-
97547333 NUT, NYLOKNUT, NYLOK
-
107518474 BOLT, FLANGEBOLT, FLANGE
-
115434191 CAP, BUMPERCAP, BUMPER
-
125248846-067 PLATE, GRILLE, BUMPER, TOP (BLACK)PLATE, GRILLE, BUMPER, TOP (BLACK)
-
137517685 SCREWSCREW
-
145248845-067 PLATE, GRILLE, BUMPER, UPPER (BLACK)PLATE, GRILLE, BUMPER, UPPER (BLACK)
-
157547313 NUT, FLANGENUT, FLANGE
-
165436987 CUP, HOOD LATCHCUP, HOOD LATCH
-
177621334 RIVETRIVET
-
181016808-067 BUMPER (BLACK)BUMPER (BLACK)
-
197175627 DECAL, REFLECTOR (AMBER)DECAL, REFLECTOR (AMBER)
-
201014902-067 SUPPORT, FLOOR, LEFT HAND (BLACK)SUPPORT, FLOOR, LEFT HAND (BLACK)
-
215242049-329 BRACKET, OIL TANK, SUPPORT (BLACK)BRACKET, OIL TANK, SUPPORT (BLACK)
-
221016789-067 FRAME, MAIN (BLACK)FRAME, MAIN (BLACK)
