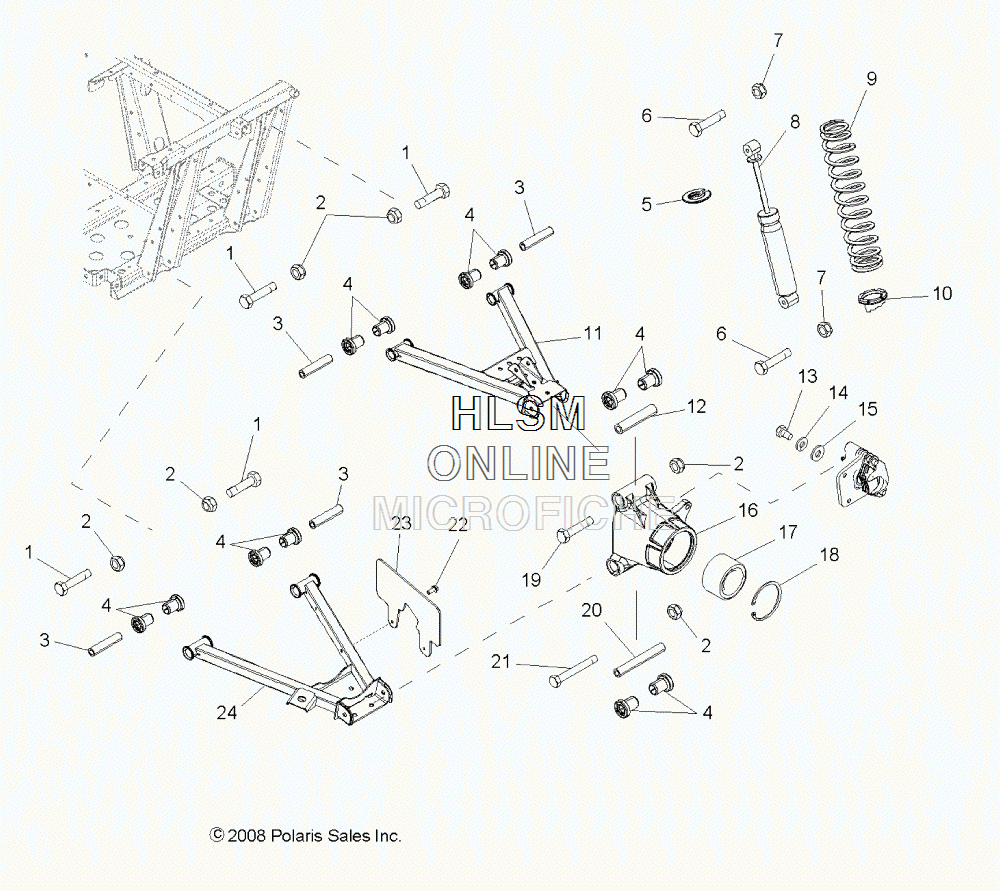

REAR SUSPENSION для Polaris RANGER 2X4 500 CARB - GREEN [R09RB50AF] - 2009 года выпуска`
-
№АртикулНазвание
-
17518560 SCREWSCREW
-
27547333 NUT, NYLOKNUT, NYLOK
-
35335448 TUBE, PIVOTTUBE, PIVOT
-
45434548 BUSHING, A-ARM., SHORTBUSHING, A-ARM., SHORT
-
55251753 RETAINER, SHOCKRETAINER, SHOCK
-
67518563 BOLT, FLANGEDBOLT, FLANGED
-
77547333 NUT, NYLOKNUT, NYLOK
-
87043491 SHOCK, REARSHOCK, REAR
-
97042334-067 SPRING (BLACK)SPRING (BLACK)
-
105630551 CAM, ADJUST, SPRINGCAM, ADJUST, SPRING
-
111016730-067 ARM, CONTROL, UPPER (BLACK)ARM, CONTROL, UPPER (BLACK)
-
125136580 SHAFT, A-ARM, UPPER, REARSHAFT, A-ARM, UPPER, REAR
-
137512365 SCREW (REAR CALIPER ATTACH)SCREW (REAR CALIPER ATTACH)
-
147552901 WASHER, LOCK (REAR CALIPER ATTACH)WASHER, LOCK (REAR CALIPER ATTACH)
-
157558402 WASHER, FLAT (REAR CALIPER ATTACH)WASHER, FLAT (REAR CALIPER ATTACH)
-
165134741 CARRIER, BEARING, WHEEL, LEFT HANDCARRIER, BEARING, WHEEL, LEFT HAND
-
165134531 CARRIER, BEARING, WHEEL, RIGHT HANDCARRIER, BEARING, WHEEL, RIGHT HAND
-
173585502 BEARING, CARRIER, WHEELBEARING, CARRIER, WHEEL
-
187710440 RING, RETAININGRING, RETAINING
-
197518566 BOLT, FLANGEBOLT, FLANGE
-
205136581 SHAFT, A-ARM, LOWER, REARSHAFT, A-ARM, LOWER, REAR
-
217518562 BOLT, FLANGEBOLT, FLANGE
-
227512084 SCREWSCREW
-
235437816-070 SHIELD, CV, REAR (BLACK)SHIELD, CV, REAR (BLACK)
-
241016813-067 ARM, CONTROL, LOWER, LEFT HAND (BLACK)ARM, CONTROL, LOWER, LEFT HAND (BLACK)
-
241016814-067 ARM, CONTROL, LOWER, RIGHT HAND (BLACK)ARM, CONTROL, LOWER, RIGHT HAND (BLACK)
