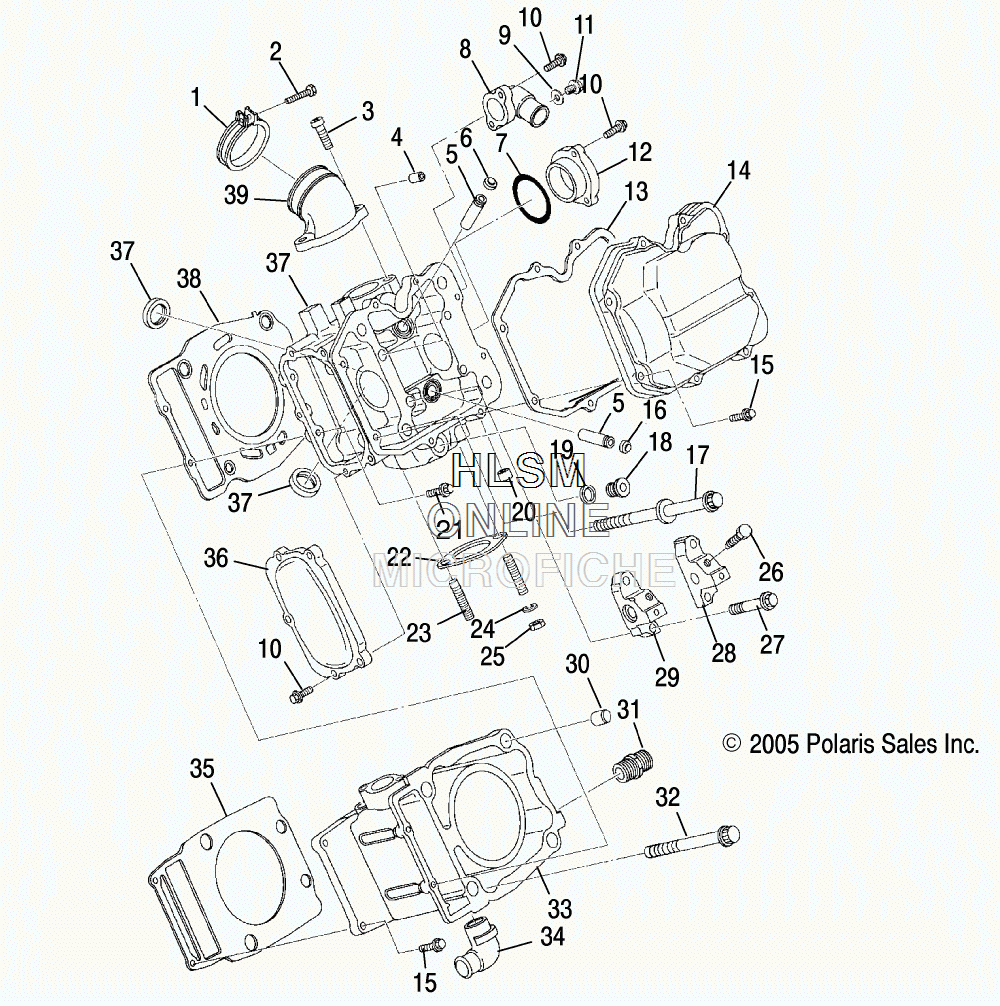

CYLINDER для Polaris RANGER 2X4 500 CARB - GREEN [R09RB50AF] - 2009 года выпуска
-
№АртикулНазвание
-
13083166 ASM., BAND, ADAPTER (INCL. 2)ASM., BAND, ADAPTER (INCL. 2)
-
23081497 SCREWSCREW
-
33081330 BOLT, ALLENBOLT, ALLEN
-
43084857 PIN, STRAIGHTPIN, STRAIGHT
-
53084994 GUIDE, VALVEGUIDE, VALVE
-
63084858 SEAL, INTAKE VALVESEAL, INTAKE VALVE
-
73084867 O-RINGO-RING
-
83088208 ADAPTER, WATER OUTADAPTER, WATER OUT
-
97555998 WASHER, FLATWASHER, FLAT
-
103084877 BOLT, FLANGEBOLT, FLANGE
-
113085359 BOLT, FLANGEBOLT, FLANGE
-
123084866 ADAPTER, CAMSHAFTADAPTER, CAMSHAFT
-
133085074 GASKET, ROCKER COVERGASKET, ROCKER COVER
-
143085073 COVER, ROCKERCOVER, ROCKER
-
153084874 BOLT, FLANGEBOLT, FLANGE
-
163084859 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
173084875 BOLT, CYLINDER HEADBOLT, CYLINDER HEAD
-
183084860 PLUGPLUG
-
193084861 GASKETGASKET
-
203084862 PLUG, BLINDPLUG, BLIND
-
213086781 BOLT, FLANGEBOLT, FLANGE
-
223085075 GASKET, EXHAUSTGASKET, EXHAUST
-
233085326 STUDSTUD
-
243080530 WASHER, LOCKWASHER, LOCK
-
253087199 NUTNUT
-
263085854 BOLT, ROCKER SHAFTBOLT, ROCKER SHAFT
-
273084876 BOLTBOLT
-
283084864 SUPPORT, VALVE ROCKER SHAFT (PTO)SUPPORT, VALVE ROCKER SHAFT (PTO)
-
293084863 SUPPORT, VALVE ROCKER SHAFT (MAG)SUPPORT, VALVE ROCKER SHAFT (MAG)
-
303087266 PIN, KNOCKPIN, KNOCK
-
313084849 UNIONUNION
-
323084873 BOLT, FLANGEBOLT, FLANGE
-
333089256 ASM., CYLINDER (INCL. 34)ASM., CYLINDER (INCL. 34)
-
343086747 PIPE 2, ELBOWPIPE 2, ELBOW
-
353085370 GASKET, CYLINDERGASKET, CYLINDER
-
363089242 COVER, CAMSHAFTCOVER, CAMSHAFT
-
373085527 HEAD, CYLINDER (INCL. 4-6,16,18-20,23)HEAD, CYLINDER (INCL. 4-6,16,18-20,23)
-
383085371 GASKET, HEADGASKET, HEAD
-
393084879 ADAPTERADAPTER
