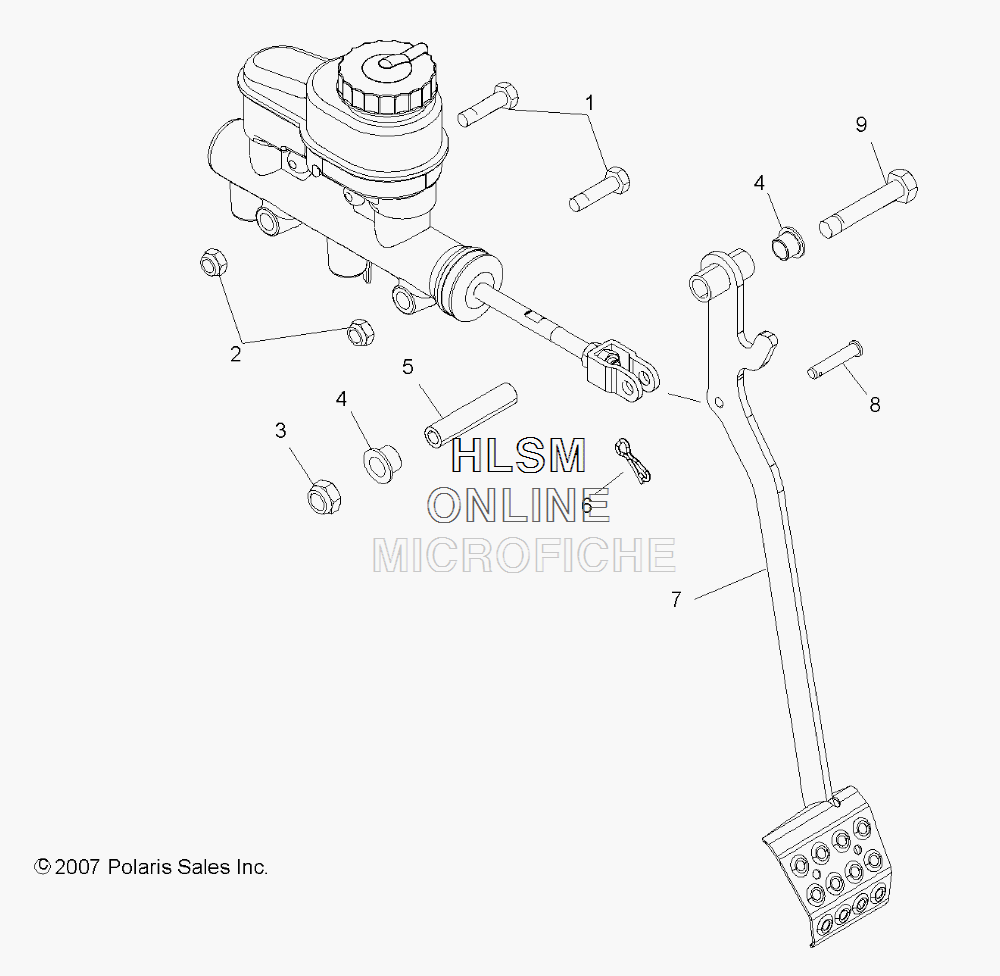

MASTER CYLINDER MOUNTING AND PEDAL для Polaris RANGER 2X4 500 CARB - GREEN [R09RB50AF] - 2009 года выпуска
-
№АртикулНазвание
-
17517281 SCREW, FLANGESCREW, FLANGE
-
27547317 NUT, NYLOK, FLANGENUT, NYLOK, FLANGE
-
37542439 NUT, NYLOKNUT, NYLOK
-
45433189 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
55334030 TUBE, BRAKE PEDAL BUSHINGTUBE, BRAKE PEDAL BUSHING
-
67661140 PIN, CLIPPIN, CLIP
-
71016064 PEDAL, BRAKE (BLACK)PEDAL, BRAKE (BLACK)
-
87661843 PIN, CLEVISPIN, CLEVIS
-
97515417 SCREWSCREW
