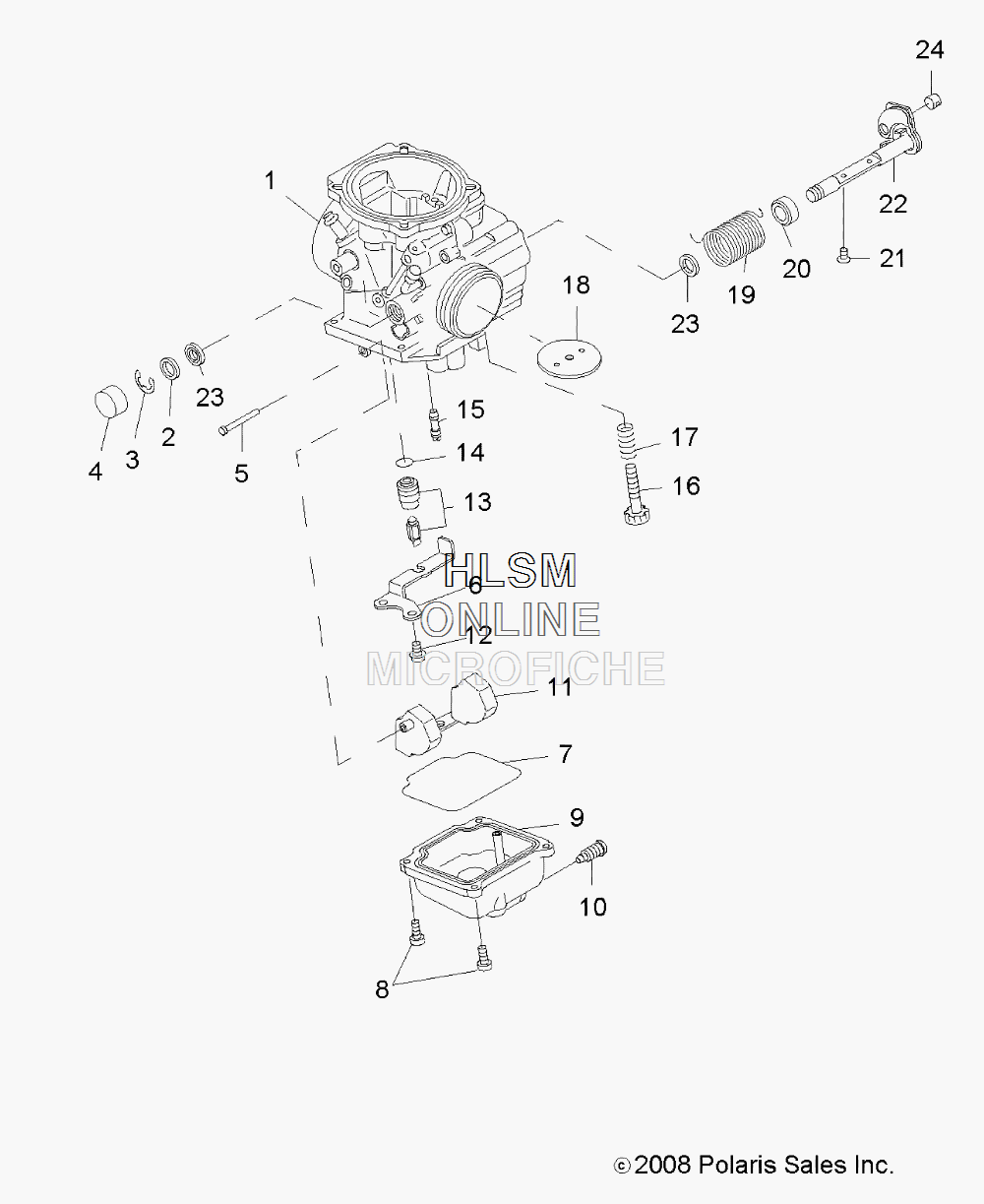

CARBURETOR- LOWER для Polaris RANGER 2X4 500 CARB - GREEN [R09RB50AF] - 2009 года выпуска
-
№АртикулНазвание
-
13131441 ASM., CARB (INCL. ALL LESS 24)ASM., CARB (INCL. ALL LESS 24)
-
33130518 E-RINGE-RING
-
43130519 CAPCAP
-
53130361 PIN, FLOATPIN, FLOAT
-
63130594 PLATEPLATE
-
73130532 O-RINGO-RING
-
83130520 SCREWSCREW
-
93131212 ASM., FLOAT BODYASM., FLOAT BODY
-
103130521 SCREWSCREW
-
113130529 ASM., FLOATASM., FLOAT
-
123130591 SCREWSCREW
-
133131361 VALVE, NEEDLEVALVE, NEEDLE
-
143130533 O-RINGO-RING
-
153130526 JET, PILOT, #42.5JET, PILOT, #42.5
-
163131423 SCREW, ADJUSTSCREW, ADJUST
-
173130836 SPRINGSPRING
-
183130502 VALVE, THROTTLE, 100VALVE, THROTTLE, 100
-
193130589 SPRINGSPRING
-
203130514 RINGRING
-
213130501 SCREWSCREW
-
223130513 ASM., THROTTLE SHAFTASM., THROTTLE SHAFT
-
233130515 SEALSEAL
-
243130543 GUIDE, CABLEGUIDE, CABLE
