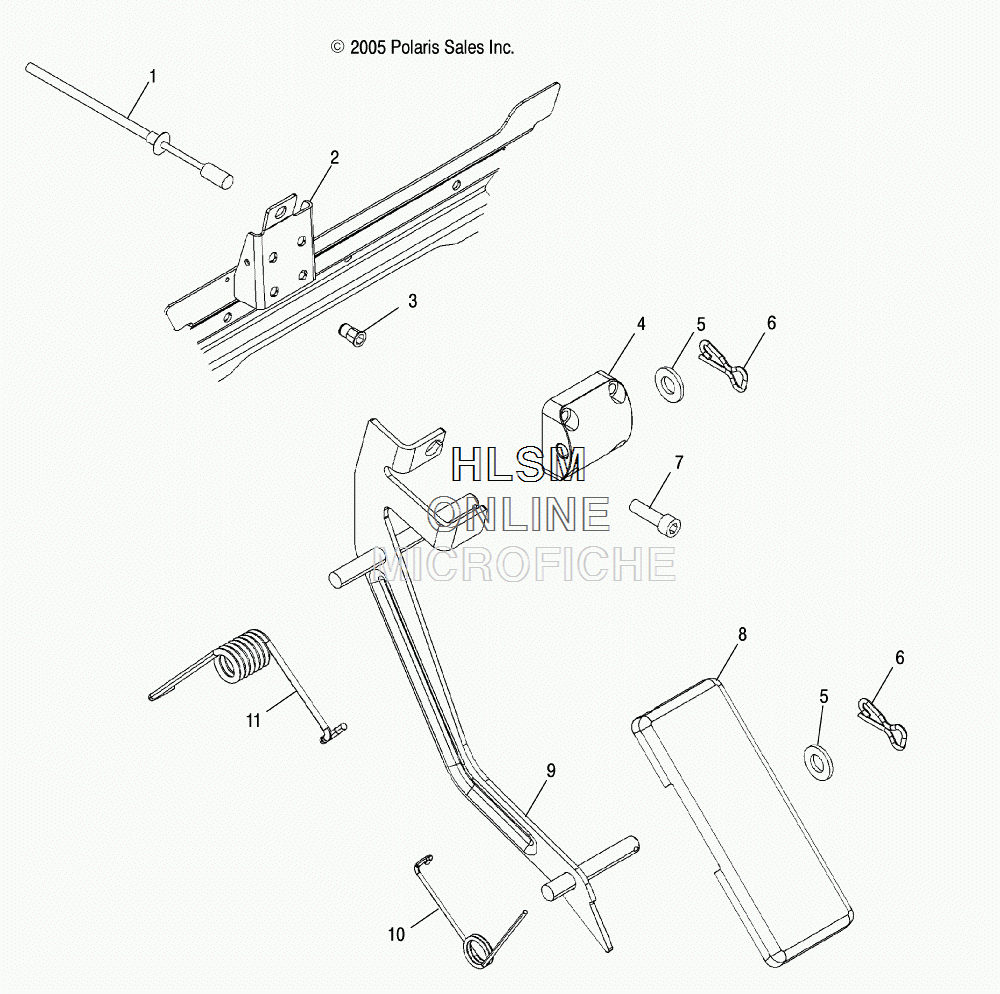

THROTTLE PEDAL для Polaris RANGER 2X4 500 CARB - GREEN [R09RB50AF] - 2009 года выпуска
-
№АртикулНазвание
-
17081212 CABLE, THROTTLECABLE, THROTTLE
-
37547069 NUTSERT, HEXNUTSERT, HEX
-
45434327 BLOCK, PIVOT, THROTTLEBLOCK, PIVOT, THROTTLE
-
57555954 WASHERWASHER
-
67661140 PIN, CLIPPIN, CLIP
-
77515102 SCREWSCREW
-
85438028 PEDAL, THROTTLEPEDAL, THROTTLE
-
91014770-067 THROTTLE (BLACK)THROTTLE (BLACK)
-
107043078 SPRING, THROTTLESPRING, THROTTLE
-
117042004 SPRING, ACCELERATORSPRING, ACCELERATOR
