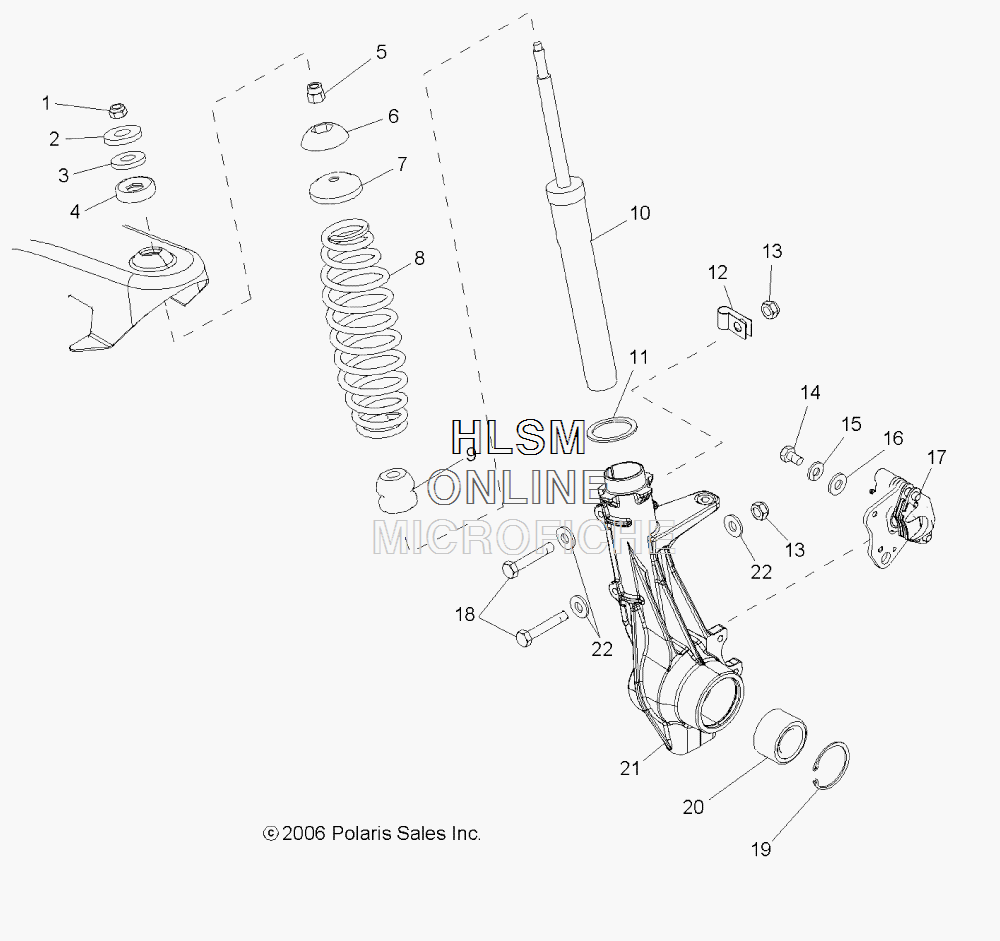

FRONT STRUT для Polaris RANGER 2X4 500 CARB - GREEN [R09RB50AF] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    7547104 NUT
    NUT
  • 2
    7555749 WASHER
    WASHER
  • 3
    5810291 SPACER, RUBBER
    SPACER, RUBBER
  • 4
    5432872 BALL, PIVOT, TOP
    BALL, PIVOT, TOP
  • 5
    5132062 SPACER
    SPACER
  • 6
    5432871 BALL, PIVOT, BOTTOM
    BALL, PIVOT, BOTTOM
  • 7
    5243364 RETAINER, SPRING
    RETAINER, SPRING
  • 8
    7043094-067 SPRING, COMPRESSION (BLACK)
    SPRING, COMPRESSION (BLACK)
  • 9
    5412665 BUMPER
    BUMPER
  • 10
    7043106 STRUT, FRONT
    STRUT, FRONT
  • 11
    5211115 WASHER
    WASHER
  • 12
    7080367 CLAMP, CABLE
    CLAMP, CABLE
  • 13
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 14
    7512457 BOLT (ASSEMBLES BRAKE CALIPER)
    BOLT (ASSEMBLES BRAKE CALIPER)
  • 15
    7552603 WASHER, SPRING LOCK (ASSEMBLES BRAKE CALIPER)
    WASHER, SPRING LOCK (ASSEMBLES BRAKE CALIPER)
  • 16
    7556188 WASHER, FLAT (ASSEMBLES BRAKE CALIPER)
    WASHER, FLAT (ASSEMBLES BRAKE CALIPER)
  • 18
    7515339 BOLT
    BOLT
  • 19
    7710507 RING, RETAINING
    RING, RETAINING
  • 20
    3514342 BEARING, HUBSTRUT
    BEARING, HUBSTRUT
  • 21
    1823299 ASM., HUBSTRUT, LEFT HAND (INCL. 19,20)
    ASM., HUBSTRUT, LEFT HAND (INCL. 19,20)
  • 21
    1823300 ASM., HUBSTRUT, RIGHT HAND (INCL. 19,20)
    ASM., HUBSTRUT, RIGHT HAND (INCL. 19,20)
  • 22
    7558402 WASHER, FLAT
    WASHER, FLAT
