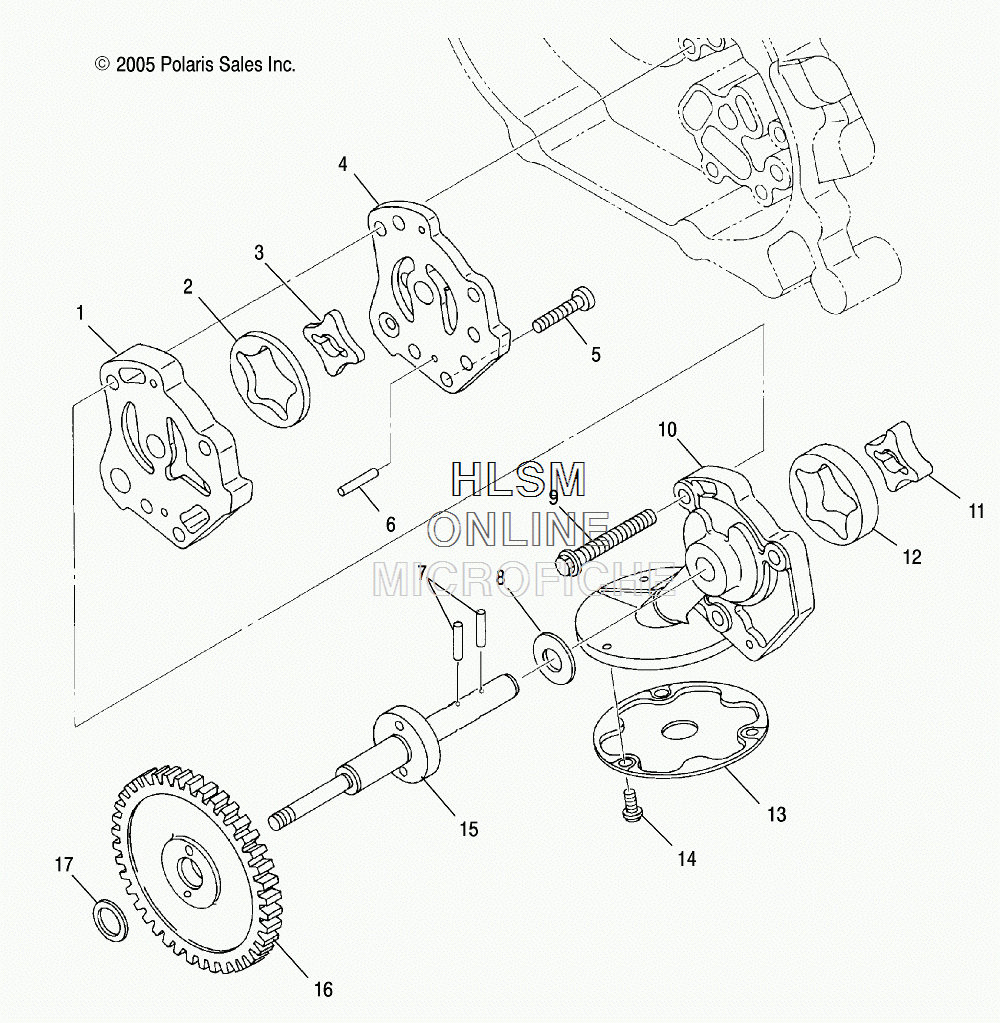

OIL PUMP для Polaris RANGER 2X4 500 CARB - GREEN [R09RB50AF] - 2009 года выпуска
-
№АртикулНазвание
-
13084946 PUMP, OIL, CASE 2PUMP, OIL, CASE 2
-
23084949 ROTOR, OUTER, FEEDROTOR, OUTER, FEED
-
33084948 ROTOR, INNER, FEEDROTOR, INNER, FEED
-
43089999 ASM., OIL PUMP (INCL. 1-8,10-15)ASM., OIL PUMP (INCL. 1-8,10-15)
-
43090000 PUMP, OIL, CASE 1PUMP, OIL, CASE 1
-
53085535 SCREWSCREW
-
63084955 PIN, DOWELPIN, DOWEL
-
73084954 PIN, DOWELPIN, DOWEL
-
83084953 WASHERWASHER
-
93084962 ASM., BOLT AND WASHERASM., BOLT AND WASHER
-
103087265 PUMP, OIL, CASE 3PUMP, OIL, CASE 3
-
113084950 ROTOR, INNERROTOR, INNER
-
123090307 ROTOR, OUTERROTOR, OUTER
-
133084956 UNIT, OIL STRAINERUNIT, OIL STRAINER
-
143084205 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
153084952 SHAFT, PUMPSHAFT, PUMP
-
163084958 GEAR 2, PUMPGEAR 2, PUMP
-
173084959 SPACER, 0.8SPACER, 0.8
-
173084960 SPACER, 1.0SPACER, 1.0
-
173084961 SPACER, 1.2SPACER, 1.2
