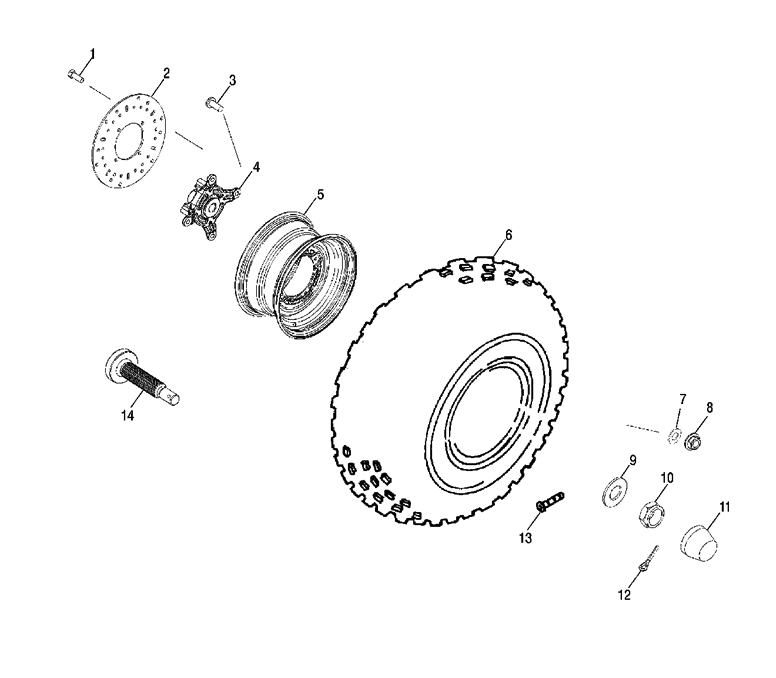

WHEELS - FRONT для Polaris RANGER 500 2X4 CARB EB GREEN [R08RB50AA] - 2008 года выпуска
-
№АртикулНазвание
-
17512325 BOLTBOLT
-
25244314 DISC,BRAKE,FRONTDISC,BRAKE,FRONT
-
37515513 STUDSTUD
-
45135207 HUB-WHEEL,4WD,MACHHUB-WHEEL,4WD,MACH
-
51520796-067 RIM,FRONT,12X6,10GA, BLACKRIM,FRONT,12X6,10GA, BLACK
-
65411397 TIRE,F. 25X10-12TIRE,F. 25X10-12
-
77556242 WASHERWASHER
-
87542459 NUT, FLANGEDNUT, FLANGED
-
97556004 WASHERWASHER
-
107542810 NUT, SLOTTEDNUT, SLOTTED
-
115411164 HUB-DUST COVERHUB-DUST COVER
-
127661402 PIN, COTTERPIN, COTTER
-
131525017 VALVE, RIMVALVE, RIM
-
141821088 SPINDLE-FRONTSPINDLE-FRONT
