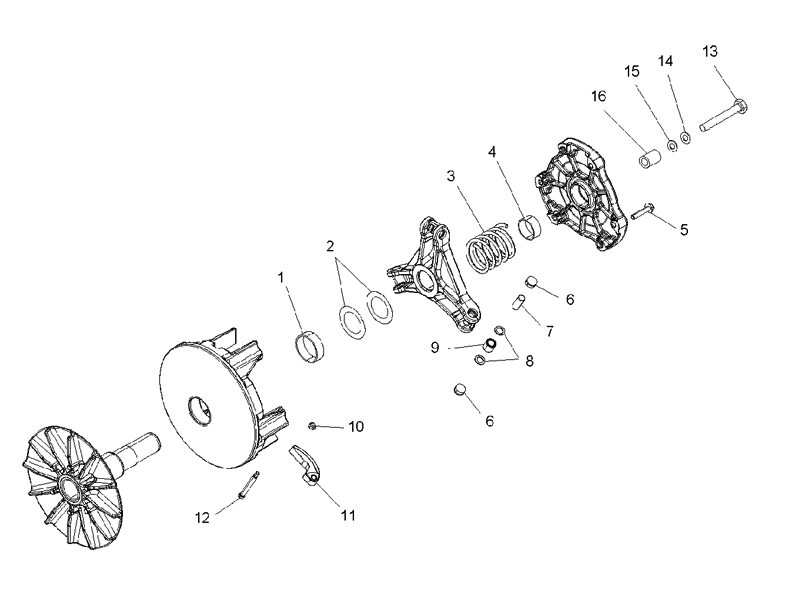

PRIMARY CLUTCH для Polaris RANGER 500 2X4 CARB EB GREEN [R08RB50AA] - 2008 года выпуска

  • №
    Артикул
    Название
  • -
    1322682 ASM-DRIVE CLUTCH,WIDE,BASIC
    ASM-DRIVE CLUTCH,WIDE,BASIC
  • 1
    3576504 BUSHING,MOVEABLE,1/2 INCH
    BUSHING,MOVEABLE,1/2 INCH
  • 2
    5210752 SPACER,.020
    SPACER,.020
  • 2
    5242981 SPACER,.025
    SPACER,.025
  • 2
    5210753 SPACER,.032
    SPACER,.032
  • 2
    5210754 SPACER,.050
    SPACER,.050
  • 3
    7041157 SPRING,CLUTCH
    SPRING,CLUTCH
  • 4
    3576510 BEARING, COVER,
    BEARING, COVER,
  • 5
    7518062 SCR-1/4-20X1.25 HX/FL GR5
    SCR-1/4-20X1.25 HX/FL GR5
  • 6
    5431936 BUTTON,CLUTCH
    BUTTON,CLUTCH
  • 7
    5020422 PIN-ROLLER,
    PIN-ROLLER,
  • 8
    5430945 WASHER
    WASHER
  • 9
    1321457 ROLLER/BUSHING ASM.
    ROLLER/BUSHING ASM.
  • 10
    7541906 NUT FLEXLOC
    NUT FLEXLOC
  • 11
    5630513 WT,SHIFT, 10MH
    WT,SHIFT, 10MH
  • 12
    7512266 BOLT,SHOULDER
    BOLT,SHOULDER
  • 13
    7512566 BOLT
    BOLT
  • 14
    7575202 WASHER LOCK
    WASHER LOCK
  • 15
    5210748 WASHER
    WASHER
  • 16
    5430261 BUSHING
    BUSHING
