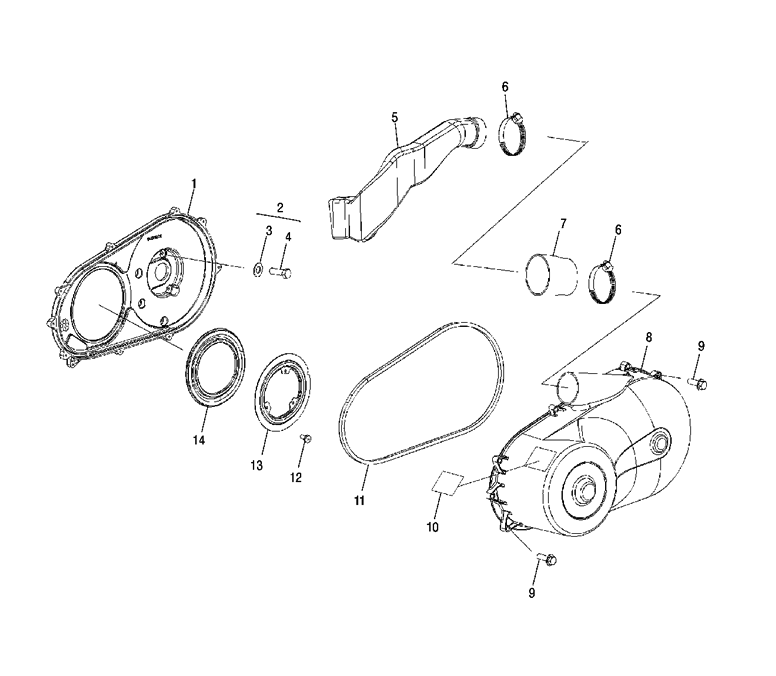

DRIVE TRAIN - CLUTCH COVER для Polaris RANGER 500 2X4 CARB EB GREEN [R08RB50AA] - 2008 года выпуска
-
№АртикулНазвание
-
12632979 ASM-CLUTCH COVER,INNERASM-CLUTCH COVER,INNER
-
27517599 ASM.,BOLT /WASHER.88ASM.,BOLT /WASHER.88
-
37555748 WASHERWASHER
-
47517312 SCREWSCREW
-
55436960 DUCT-CLUTCH,AIR OUTLETDUCT-CLUTCH,AIR OUTLET
-
67081279 CLAMP-BAND,NARROW 70-90MMCLAMP-BAND,NARROW 70-90MM
-
75435684 HOSE-CLUTCH,AIR OUTLETHOSE-CLUTCH,AIR OUTLET
-
85433451-070 COVER,CLUTCH-OUTER,HV, BLACK-COVER,CLUTCH-OUTER,HV, BLACK-
-
97512094 SCREWSCREW
-
107172563 DECALSDECALS
-
115521738 SEAL-OUTER CLUTCH COVERSEAL-OUTER CLUTCH COVER
-
123084205 ASM.,SCREW AND WASHERASM.,SCREW AND WASHER
-
135242046 BRKT-CLUTCH SEALBRKT-CLUTCH SEAL
-
145412725 SEAL-COVER,CLUTCH,INNERSEAL-COVER,CLUTCH,INNER
