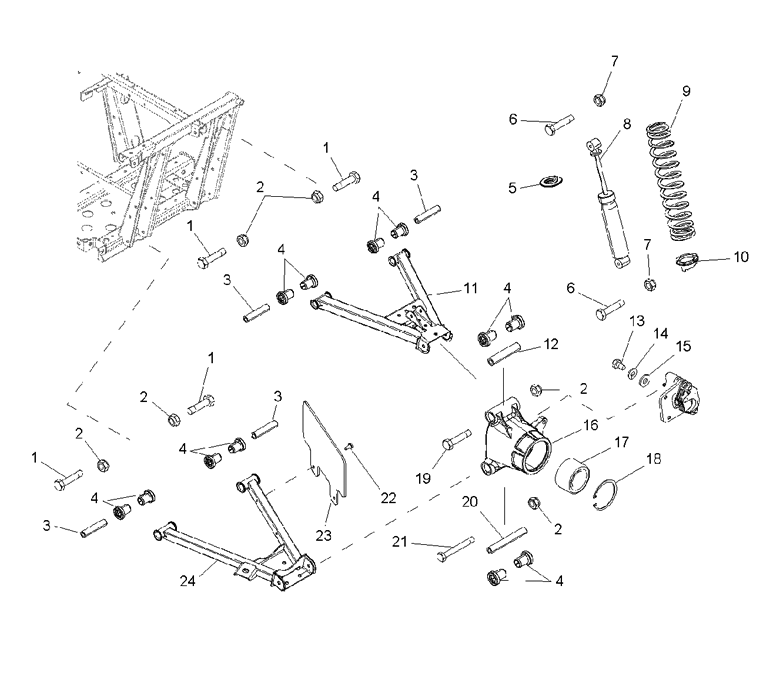

SUSPENSION - REAR для Polaris RANGER 500 2X4 CARB EB GREEN [R08RB50AA] - 2008 года выпуска
-
№АртикулНазвание
-
17515472 BOLTBOLT
-
27542439 NUT,NYLOKNUT,NYLOK
-
35020826 SHAFT,A-ARM,SHORTSHAFT,A-ARM,SHORT
-
45434548 BUSHING-A-ARM-SHORT, BLACKBUSHING-A-ARM-SHORT, BLACK
-
55241147 RETAINER,SHOCKRETAINER,SHOCK
-
67515415 SCREWSCREW
-
77542439 NUT,NYLOKNUT,NYLOK
-
87042333 SHOCK-REARSHOCK-REAR
-
97042334-067 SPRING-200#/12.75, BLACKSPRING-200#/12.75, BLACK
-
105630551 CAM,ADJUST,SPRINGCAM,ADJUST,SPRING
-
111014948-067 CONTROL ARM,UPPER, BLACKCONTROL ARM,UPPER, BLACK
-
125134549 SHAFT-A-ARM,UPPERSHAFT-A-ARM,UPPER
-
137512365 SCREW, CAPSCREW, CAP
-
147552901 WASHER,SPRING LOCKWASHER,SPRING LOCK
-
157558402 WASHER,FLATWASHER,FLAT
-
165134741 CARRIER-BEARING,WHEEL, LEFT HANDCARRIER-BEARING,WHEEL, LEFT HAND
-
165134531 CARRIER-BEARING,WHEEL, RIGHT HANDCARRIER-BEARING,WHEEL, RIGHT HAND
-
173585502 BEARINGBEARING
-
187710440 RING,RETAININGRING,RETAINING
-
197515514 BOLTBOLT
-
205134616 SHAFT-A-ARM,LOWERSHAFT-A-ARM,LOWER
-
217518634 SCREW, HEXAGONSCREW, HEXAGON
-
227512084 SCREWSCREW
-
235436014-070 SHIELD-CV,REAR, BLACKSHIELD-CV,REAR, BLACK
-
241014674-067 CONTROL ARM,LWR, LEFT HAND, BLACKCONTROL ARM,LWR, LEFT HAND, BLACK
-
241014675-067 CONTROL ARM,LWR, RIGHT HAND, BLACKCONTROL ARM,LWR, RIGHT HAND, BLACK
