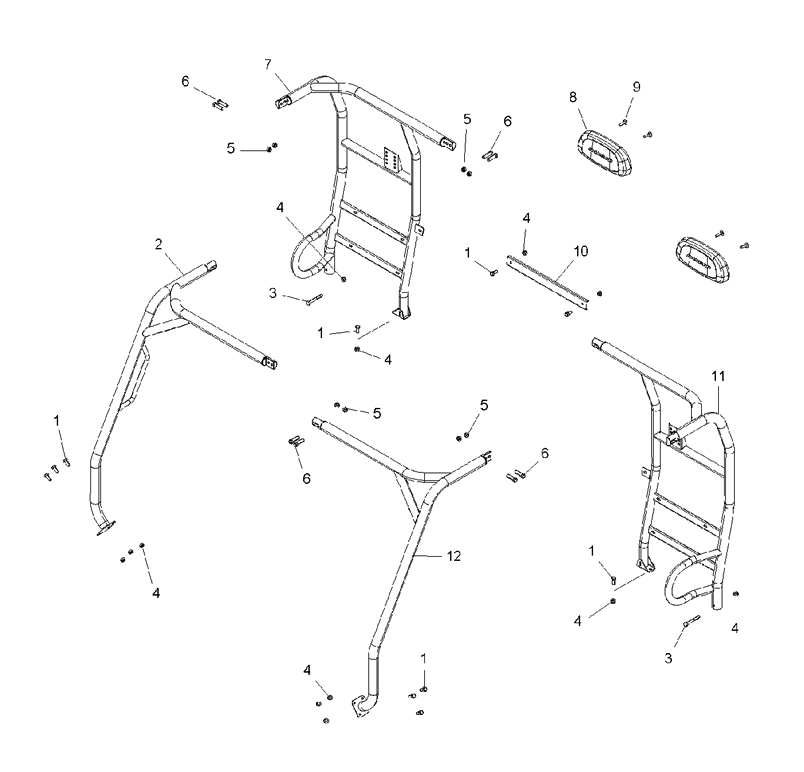

CAB FRAME для Polaris RANGER 500 2X4 CARB EB GREEN [R08RB50AA] - 2008 года выпуска
-
№АртикулНазвание
-
17515321 BOLTBOLT
-
21015906-067 WELD-CAB FRAME,FRONT, RIGHT HAND, BLACKWELD-CAB FRAME,FRONT, RIGHT HAND, BLACK
-
37515339 BOLTBOLT
-
47542324 NUT,NYLOKNUT,NYLOK
-
57542451 NUT, NYLOKNUT, NYLOK
-
67517935 SCR-3/8,16X1 1/4 HXSOC CS ZY3SCR-3/8,16X1 1/4 HXSOC CS ZY3
-
71015908-067 WELD-CAB FRAME,RR, RIGHT HAND, BLACKWELD-CAB FRAME,RR, RIGHT HAND, BLACK
-
85434879-070 HEADREST-BLACKHEADREST-BLACK
-
97517230 SCREWSCREW
-
105248164-067 BRKT-CAB FRAME,CENTER,CROSSBLACKBRKT-CAB FRAME,CENTER,CROSSBLACK
-
111015907-067 WELD-CAB FRAME,RR, LEFT HAND, BLACKWELD-CAB FRAME,RR, LEFT HAND, BLACK
-
121015905-067 WELD-CAB FRAME,FRONT, LEFT HAND, BLACKWELD-CAB FRAME,FRONT, LEFT HAND, BLACK
Все узлы модели:
- AIR INTAKE SYSTEM
- BOX ASSY.
- BOX MOUNTING
- BRAKES - FRONT CALIPER
- BRAKES - REAR CALIPER
- BRAKES LINES AND MASTER CYLINDER
- BRAKES PARK - BRAKE ASM
- BRAKES PEDAL AND MASTER CYLINDER MOUNTING
- • CAB FRAME
- CAMSHAFT AND VALVES
- CARBURETOR
- CLUTCH AIR INTAKE
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- DASH INSTRUMENTS AND CONTROLS
- DECALS
- DRIVE SHAFT - REAR
- DRIVE TRAIN - CLUTCH COVER
- ELECTRICAL - BATTERY
- ELECTRICAL - WIRE HARNESSES
- EXHAUST SYSTEM
- FLOOR AND FENDERS
- FLYWHEEL COVER
- FRAME AND FRONT BUMPER
- FUEL SYSTEM
- GEAR SELECTOR
- GEARCASE - REAR
- GEARCASE MOUNTING - REAR
- HEADLIGHTS W/ TAILLIGHTS AND BULBS
- HOOD AND DASHBOARD
- IGNITION SYSTEM
- MAIN GEARCASE
- MAIN GEARCASE - INTERNAL
- MAIN GEARCASE - MOUNTING
- MAIN GEARCASE - OUTPUT SHAFT
- MOUNTING
- OIL FILTER
- OIL PUMP
- OIL TANK
- PRIMARY CLUTCH
- PROP SHAFT - REAR
- SEAT AND BASE
- SECONDARY CLUTCH
- STARTING MOTOR
- STEERING ASM
- SUSPENSION - FRONT A ARM W/ STRUT MOUNTING
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR
- SUSPENSION - REAR STABILIZER BAR
- SWITCHES AND ECM
- TAILGATE ASSY.
- THROTTLE
- TOOL KIT
- WATER PUMP
- WHEELS - FRONT
- WHEELS - REAR
