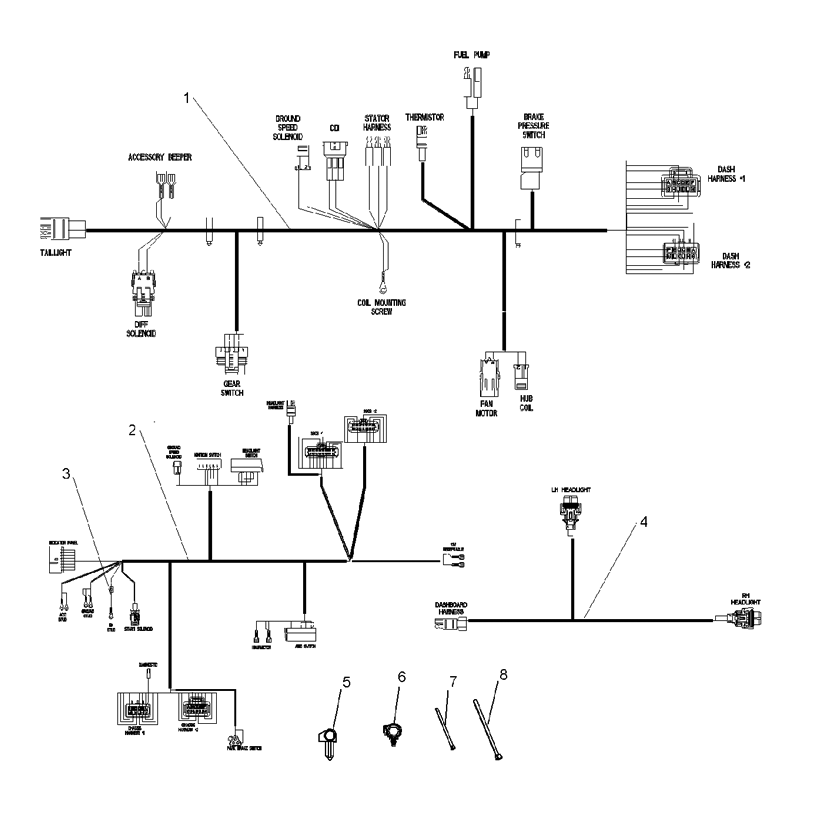

ELECTRICAL - WIRE HARNESSES для Polaris RANGER 500 2X4 CARB EB GREEN [R08RB50AA] - 2008 года выпуска`
-
№АртикулНазвание
-
12410960 HARNESS-CHASSIS,500 CARBHARNESS-CHASSIS,500 CARB
-
22410964 HARNESS-DASH,500 CARBHARNESS-DASH,500 CARB
-
32202147 KIT-FUSIBLE LINKKIT-FUSIBLE LINK
-
42410979 HARNESS-HEADLITE/HOODHARNESS-HEADLITE/HOOD
-
57670102 CLIPCLIP
-
64020149 CLIP,ROSEBUDCLIP,ROSEBUD
-
77080138 CABLE TIECABLE TIE
-
87080761 CABLE TIE,14''CABLE TIE,14''
